Page 10

DON'T OVERLOAD THE

GENERATOR

Overloading a generator in excess of its rated wattage capacity can result in damage to the generator and to connected electrical devices. Observe the following, to prevent overloading the unit:

Add up the total wattage of all electrical devices to be connected at one time. This total should NOT

be greater than the generator's wattage capacity.

The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances and

motors can usually be found on a data plate or decal affixed to the device.

If the appliance, tool or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

WATTAGE

REFERENCE

GUIDE



Device

.........................







Load

(watts)

*Air Conditioner

(12,000

Btu)

1700

*Air Conditioner

(24,000

Btu)

3800

*Air Conditioner

(40,000

Btu)

6000

Battery

Charger

(20 Amp)

500

Belt Sander

(3")





1000

Chain Saw









1200

Circular Saw (6-1/2")

800

to 1000

*Clothes

Dryer

(Electric)

..................



5750

*Clothes

Dryer

(Gas)



700

*Clothes

Washer





1150

Coffee Maker







1750

*Compressor

(1 HP)



2000

*Compressor

(3/4

HP)



1800

*Compressor

(1/2

HP)



1400

Curling

Iron









700

*Freezer

...............................









700

*Dehumidifier

............................







650

Disc

Sander

(9")





1200

Edge Trimmer







500

Electric

Blanket

..........................





400

Electric

Nail Gun





1200

Electric

Range

(per element)

1500

Electric

Skillet







1250

*Furnace Fan (3/5 HP)



875

*Garage

Door Opener

500 to 750

Hair

Dryer









1200

Hand

Drill







250

to 1100

Some electric motors, such as induction types, require about three times more watts of power for

starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure you allow for this high starting wattage when selecting electrical devices to connect to your generator.

1.Figure the watts needed to start the largest motor.

2.Add to that figure the running watts of all other connected loads.

The Wattage Reference Guide below is provided to assist you to determine how many items your generator can operate at one time.

Device

.........................



Load (watts)

Hedge Trimmer



450

Impact Wrench



500

Iron







1200

*Jet Pump





800

Lawn Mower





1200

Light Bulb





100

Microwave Oven

700 to

1000

*Milk Cooler





1100

Oil Burner on Furnace



300

Oil Fired Space Heater (140,000 Btu)

.........

400

Oil Fired Space Heater (85,000 Btu)

..........

225

Oil Fired Space Heater (30,000 Btu)

..........

150

*Paint Sprayer, Airless (1/3 HP)

600

Paint Sprayer,

Airless (handheld)

150

Radio





50 to 200

*Refrigerator





700

Slow Cooker





200

*Submersible

Pump (1-1/2 HP)

2800

*Submersible

Pump

(1 HP)



2000

*Submersible

Pump

(1/2 HP)

1500

*Sump

Pump

.....................

800 to 1050

*Table

Saw (10")

1750 to 2000

Television



200 to 500

Toaster

.........................



1000 to

1650

Weed Trimmer

...........................



500

* Allow 3 times the listed watts for starting these devices.

10

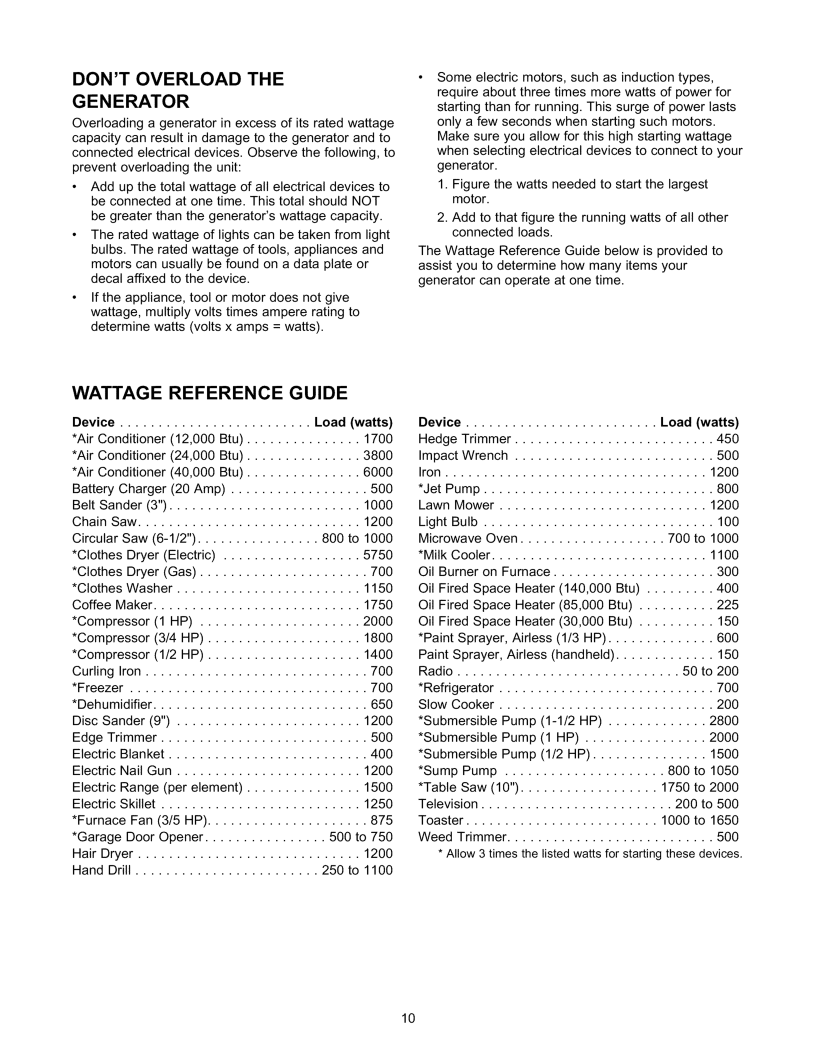

Image 10
