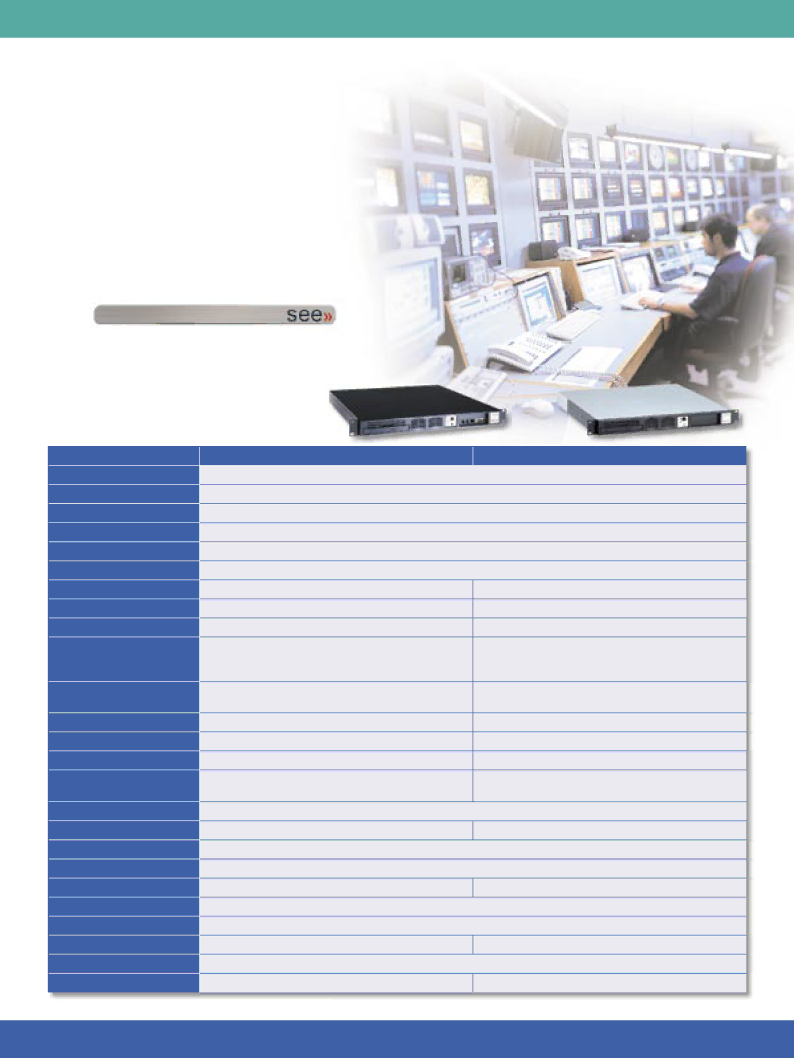

1U Rackmount Systems

Kontron introduces our Premium 1U platform, the PxV103. The PxV103 is designed to meet the needs of many general purpose industrial and test and measurement applications.

It is a budget, high-performance 1U solution that uses next generation Intel® Pentium® 4 motherboards.

Only 18" deep, the PxV103 fits in 600 mm cabinets.

Touch Panels, TFT Monitors

p. 80 f

1U Rackmount

Systems

Features

PxV103 PCI 946

PxV103 PCI 951

Construction

Anti corrosion and long term stable heavy duty steel EN 10215-DX 51D+AZ 150-A-C

Mounting

19" or Desktop

Paint Color

RAL 7021 (black)

Weight



8 kg

Control Panel Indicators

Power LED, HDD LED

Control Panel Switch

Power ON, Reset

CPU

Pentium® 3 850 MHz

Celeron® 2.0 GHz, Pentium® 4 2.4 GHz, Pentium® 4 2.8 GHz

Front Side Bus

66/100 MHz

400/533 MHz

DRAM

Up to 768 MByte

Up to 2 GByte DDR 333

I/O Standard

Front depending on SBC faceplate

Front I/O Dual LAN, VGA, PS/2 mouse and keyboard,



(Additional I/Os block, PCI slot)

additional faceplate with 2x COM or 2x USB or 1x COM





1x LPT

Drives

2x 3.5" internal for HDD IDE or SCSI, FDD, CD ROM or DVD

2x 3.5" internal for HDD, FDD, CD ROM or DVD front



front accessible (only with one internal HDD)

accessible (only with one internal HDD)

Expansion Slots

2x PCI full size rear and 1x PCI half size front

2x PCI full size rear

Power Supply

AC 150 W, DC 48 V

AC 250 W

Cooling

4 chassis fans

4 chassis fans

Options

-

mini PCI

(Fully Certified with System)





Altitude

10000 ft

Shock DIN EN 60068-2-27

15 g 11 ms half sine

10 g 11 ms half sine

Vibration DIN EN 60068-2-6

10 - 58 Hz +-0.075 mm, 58 - 500 Hz 1 g

Rel. Humidity

5 - 95% non condensing

Operating System

WIN XP, WIN 2000, Linux

WIN XP, WIN 2000, Linux, Solaris

MTBF

> 30000 h*

Dimensions H x W x D

1U x 19" x 457 mm

Operating Temperature

0° to 50°C

0° to 45°C

Type

Premium

RoHS compliant

-

*) Without FANs
