Hatco GRAL Clearance Requirements for Combustible Surroundings, Dual Units with Built-In Switches

Page 18

INSTALLATION

Clearance Requirements for Combustible Surroundings

Models

(A)

(B)

(C)

GRA &

10"

3"

1"

GRAL

(254 mm)

(76 mm)

(25 mm)









GRAH &

13-1/2"

3"

1"

GRAHL

(343 mm)

(76 mm)

(25 mm)









NOTE: Dual Strip Heaters are not to be installed in combustible surroundings.

Pass Through Shelf







Back Wall







C

B

A

Counter

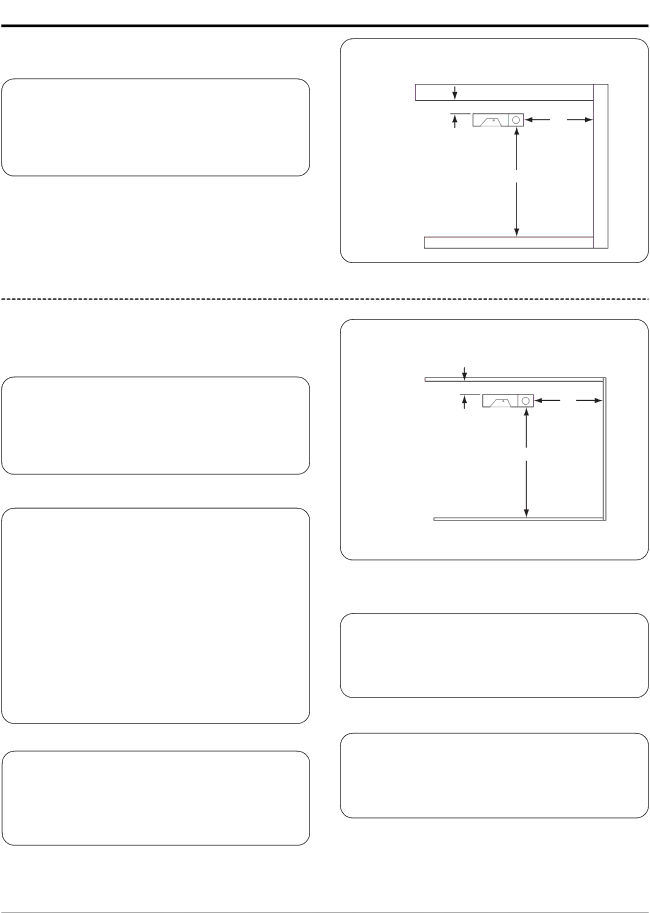

Figure 18. Combustible Spacing Requirements

Clearance Requirements for Non-Combustible Surroundings

Corded Units with Built-In Switches

Models

(A)

(B)†

(C)









GRA &

10"

N/A

3"

GRAL

(254 mm)



(76 mm)









GRAH &

11"

N/A

3"

GRAHL

(279 mm)



(76 mm)









Hardwired Units with Built-In Switches

Models

(A)

(B)†

(C)









GRA &

8"

N/A

1"

GRAL

(203 mm)



(25 mm)









GRAH &

10"

N/A

1"

GRAHL

(254 mm)



(25 mm)

with Infinite







Heat Control







Switch or







Indicator Light















GRAH &

8"

N/A

1"

GRAHL

(203 mm)



(25 mm)

with On/Off







Toggle Switch















Hardwired Units with Remote Switches

Models

(A)

(B)

(C)

GRA &

8"

0"

0"

GRAL

(203 mm)

(0 mm)

(0 mm)









GRAH &

8"

0"

0"

GRAHL

(203 mm)

(0 mm)

(0 mm)

















Pass Through Shelf







Back Wall







C

B

A

Counter

Figure 19. Non-Combustible Spacing Requirements

Dual Units with Built-In Switches

Models

(A)

(B)†

(C)

GRA-XXD







GRAH-XXD

10"

N/A

1"

GRAL-XXD

(254 mm)



(25 mm)

GRAHL-XXD















Dual Units with Remote Switches

Models

(A)

(B)

(C)

GRA-XXD







GRAH-XXD

8"

3"

0"

GRAL-XXD

(203 mm)

(76 mm)

(0 mm)

GRAHL-XXD















Must be a pass-through application, not allowed with back wall installation.

Form No. GRM-0707

16

Image 18
