MaxLoader User’s Guide

Follow the steps below for Windows.

1.Make sure a programmer is not connected when turning on your computer.

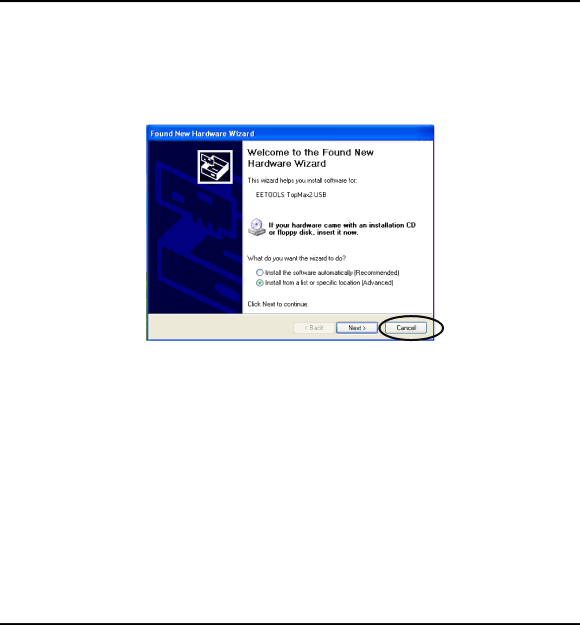

2.Note: If you see New Hardware Wizard screen then disconnect your programmer. You cannot install programmer software that way.

3.Insert the CD-ROM from factory (EE Tools) in your CD-ROM or DVD driver.

4.Wait until you see the following screen then Click on Device Programmers and choose a programmer name. The executable file name for the installation is in the CD-ROM.

11
