L i f e B o o k C 1 4 0 0 S e r i e s N o t e b o o k - S e c t i o n T h r e e

Display Panel Latch

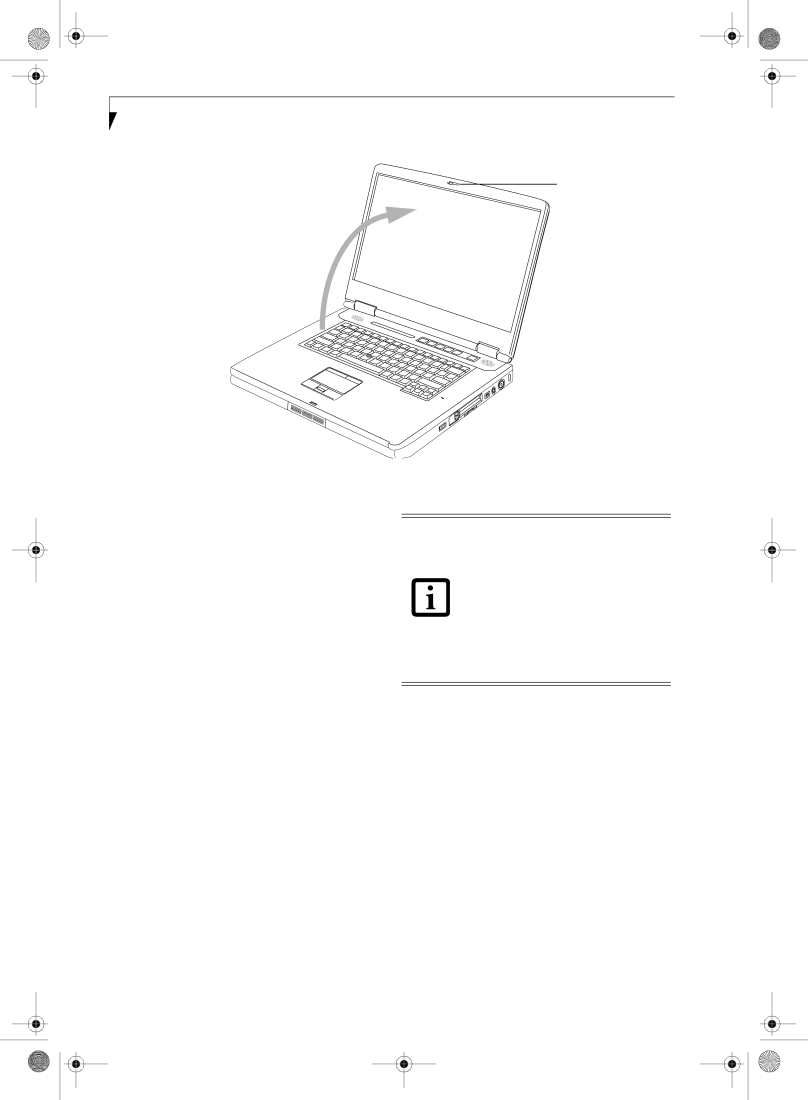

Figure 3-2 Opening the Display Panel

Display Panel

Your Fujitsu LifeBook notebook contains a display panel that is backlit for easier viewing in bright environments and maintains top resolution through the use of active- matrix technology.

OPENING THE DISPLAY PANEL

1.Push the Display Panel latch to the right. This releases the locking mechanism, allowing you to raise the display.

2.Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle. (Figure 3-2)

ADJUSTING DISPLAY PANEL BRIGHTNESS

Once you have turned on your LifeBook notebook, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are two ways to adjust the brightness, by using the keyboard or the power management utility.

Using the Keyboard

Adjusting the brightness using the keyboard changes the setting only temporarily.

[Fn+F6]: Pressing repeatedly will lower the brightness of your display.

[Fn+F7]: Pressing repeatedly will increase the brightness of the display.

When using AC power your brightness setting is set to its highest level by default. When using battery power your brightness setting is set to approximately mid-level by default.

The higher the brightness level, the more power the notebook will consume and the faster your batteries will dis- charge. For maximum battery life, make sure that the brightness is set as low as possible.

CLOSING THE DISPLAY PANEL

1.Holding the edge of your display panel, pull it forward until it is flush with the body of your Life- Book notebook.

2.Push down until you hear a click. This will engage the locking mechanism and prevent your display panel from opening unexpectedly.
