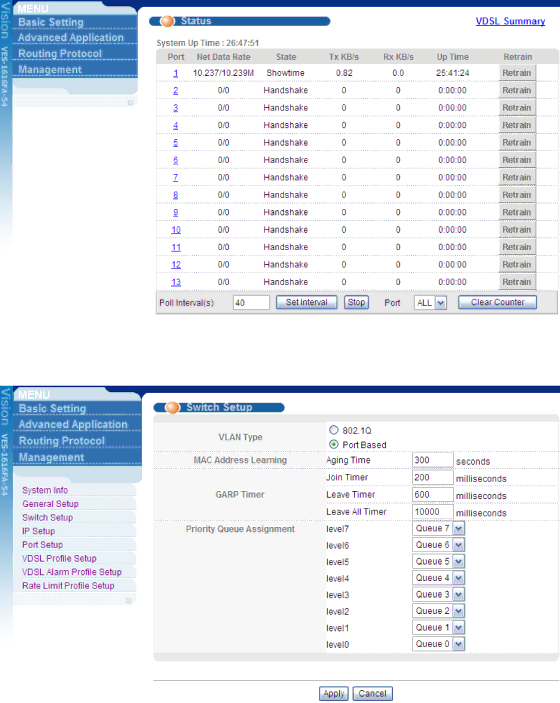

7.First, set the switch to use port based VLAN. Click Basic Setting > Switch Setup in the navigation panel and select “Port Based” in the VLAN Type field. Click Apply to save your changes.
8.Next create logical partitions on the switch. Click Advanced Application > VLAN in the navigation panel and select the ports to belong to the VLAN. For this example, select ports 1~4 and 17, 18 to belong to a VLAN so they can communicate with each other.
Although ports 5~8 are in another group, both groups cannot communicate with each other. Here we also defined ports 17 and 18 as the uplink ports. Therefore,
