Answer:

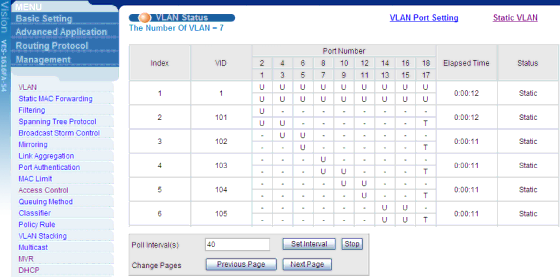

In switch A, add port 17 in each VLAN VID:101 (port 1,2,"17 TAG")
VID:102 (port 3,4,"17 TAG")
VID:103 (port 5,6,"17 TAG")
VID:104 (port 7,8,"17 TAG")
VID:105 (port 9,10,"17 TAG") VID:106 (port 11,12,13,"17 TAG") VID:107 (port 14,15,16,"17 TAG")
In switch B, add port 17 in each VLAN VID:101 (port 1,2,3,"17 TAG") VID:102 (port 4,5,6,"17 TAG") VID:103 (port 7,8,9,"17 TAG") VID:104 (port 10,11,12,"17 TAG") VID:105 (port 13,14,15,16,"17 TAG")
Clients in the same VLAN on both switches can communicate with each other. PVID:
Set PVID on switch A Port 1, 2 : 101
Port 3, 4 : 102
Port 5, 6 : 103
Port 7, 8 : 104
Port 9, 10 : 105
Port 11, 12, 13 : 106
Port 14, 15, 16 : 107
port 25: PVID=any Set PVID on switch B:
