IBM Partner Pavilion 6343, 6793, 6349, 6791, 6790 To connect the first IDE CD drive or DVD drive

Page 48

vIf it is the first CD drive or DVD drive, set as a master device.

vIf it is an additional CD drive or DVD drive, set as a slave device.

Refer to the documentation that comes with your drive for master/slave jumper information.

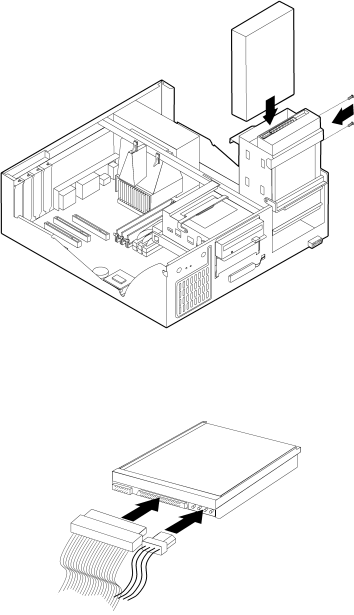

7.Install the drive into the bay. Align the screw holes and insert the two screws.

8.Pivot the drive bay cage back into place.

9.Each integrated drive electronics (IDE) drive requires two cables; a four-wire power cable that connects to the power supply and a signal cable that connects to the system board.

The steps to connect an IDE drive are different depending on the type of drive you are connecting. Locate the procedure below for your drive connection.

To connect the first IDE CD drive or DVD drive

1.Locate the three-connector signal cable that came with your computer or with the new drive.

2.Locate the secondary IDE connector on the system board. See “Identifying parts on the system board” on page 30.

36User Guide
