Black Box LES431A, Modbus Hardened Serial Server manual Software Installing screen

Page 16

Chapter 3: Installation and Initial Setup

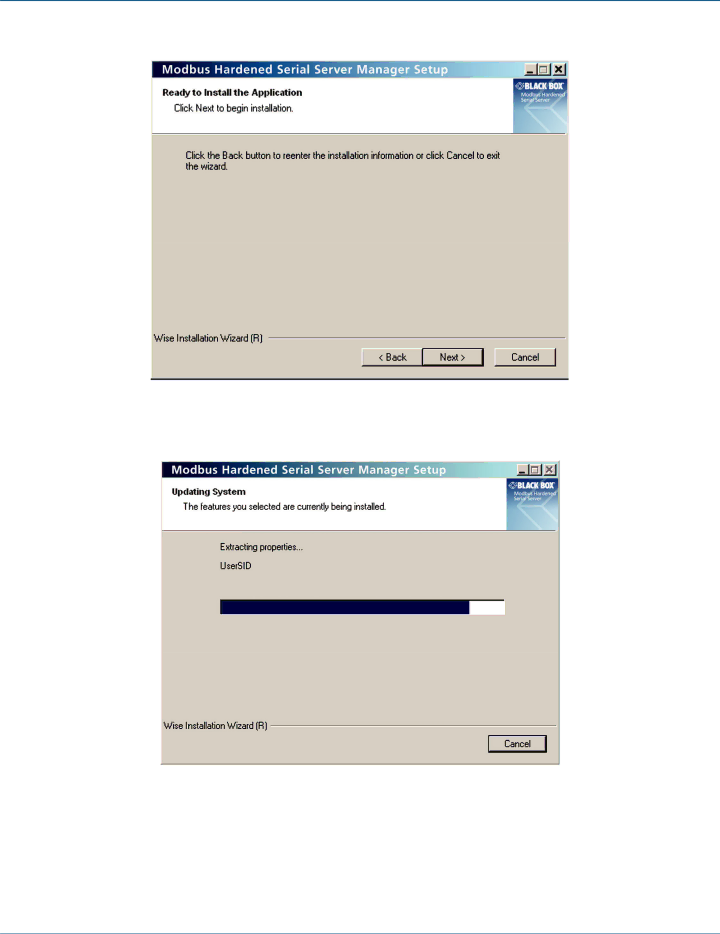

Figure 3-7. Ready to Install Application screen.

f. Click “Next.” The software will begin installing.

Figure 3-8. Software Installing screen.

Page 16

724-746-5500 blackbox.com
