Using the Passport 8100 Modules

Specifying Port Numbers

Each port number on the Passport switch consists of a slot number and a position number in the format <slot>/<position>. The slot number identifies the chassis slot containing the I/O module with that port. The position number identifies the position of the port on the I/O module. Chassis slots are numbered from the top down, and ports are numbered generally from left to right beginning with 1 for the far left port. On high-density modules with two rows of ports, such as the Passport 8148TX module, ports in the top row are assigned sequential odd numbers, and ports in the bottom row are assigned sequential even numbers (Figure 3-1).

9494EA

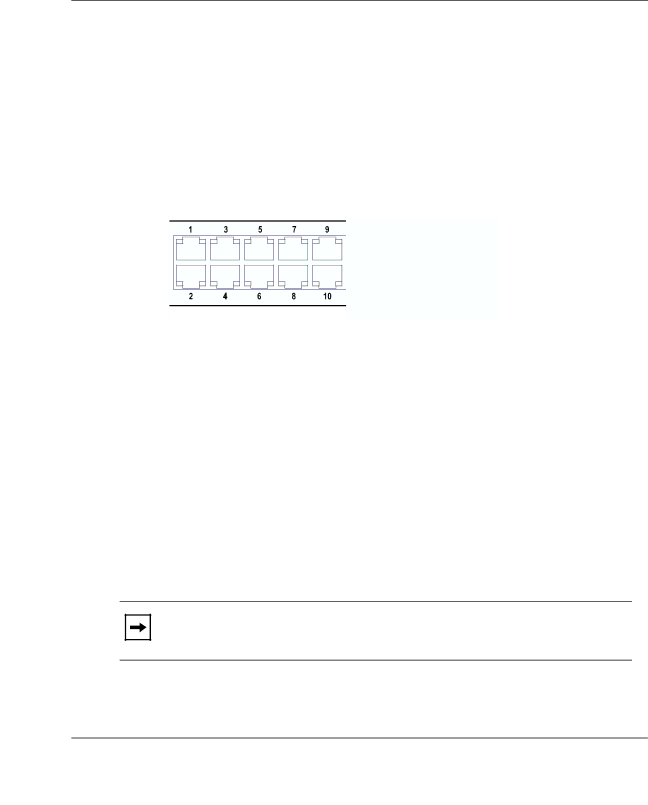

Figure 3-1. Port Numbers on High-Density Modules

MDA ports are numbered as a continuation of the ports on the module, and port numbers on an MDA are in ascending order from left to right. For example, the far left MDA port in a Passport 8132TX module is port 33. Gigabit MDAs with redundant PHYs are regarded as a single port.

To specify a list of port numbers, separate individual port numbers with commas. For example:

3/4,7/22,10/47

To specify a range of ports, type the low port number in the range, a dash, and then the high port number in the range. For example:

3/4-3/16

Note: Spaces are not allowed in port lists or ranges.

For more information about port numbering as well as MAC addressing, refer to Getting Started with the Passport 8100 Management Software.
