Page 18

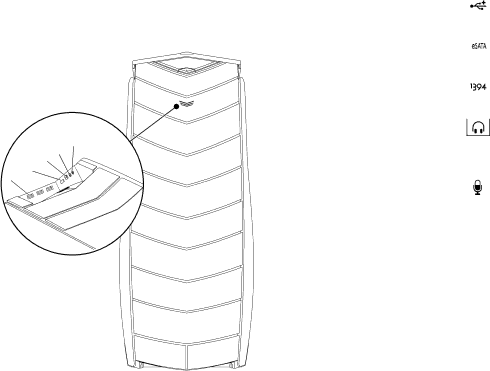

Top Panel Connectors

CHAPTER 2: GETTING TO KNOW YOUR DESKTOP

1		USB 2.0 connectors (3) — Connects to USB devices, such as a mouse,
	keyboard, printer, external drive, or MP3 player.
2		eSATA connector — Connects to eSATA compatible storage devices

	such as external hard drives or optical drives.
3		IEEE 1394 — Connects to high speed serial multimedia devices such as

	digital video cameras.
4		Headphone connector — Connects to headphones.

1

2

3

4

5

	NOTE: To connect to a powered speaker or sound system, use the audio out
	connector or one of the S/PDIF connectors on the back of your computer.
5		Microphone connector — Connects to a microphone for voice or audio

	input into a sound or telephony program.

018/018
