Editing

Editing from a camcorder

All necessary cables can be obtained from your dealer.

You can also use another video recorder as the player instead of a camcorder.

When you select “EDIT” to dub tapes, be sure to select “AUTO” (or “NORM” when the B.E.S.T. function is set to “OFF”) after you finish dubbing the tapes.

IMPORTANT

To edit, both the player and the recorder must be of the same colour system. Select the appropriate colour system ( 16).

PAL, SECAM and NTSC camcorders can be used as a player for editing.

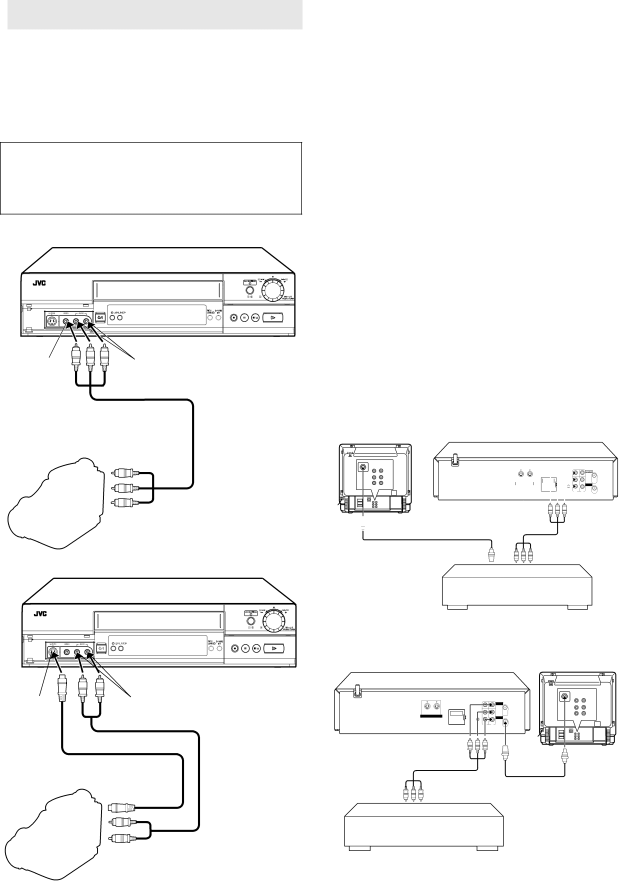

a If the camcorder has no S-VIDEO output connector...

Recorder

VIDEO input

AUDIO





input

Audio/Video Cable (not provided)

VIDEO OUT

Player

Camcorder

AUDIO OUT

b If the camcorder has an S-VIDEO output connector...

Recorder

S-VIDEO (S-2)

AUDIO

input

input

Audio Cable (not provided)

S-Video Cable (provided)

S-VIDEO OUT

Player

Camcorder

AUDIO OUT

You can use a camcorder as the source player and your video recorder as the recorder.

AMake connections

aIf the camcorder has no S-VIDEO output connector...

... connect the camcorder's AUDIO/VIDEO OUT connectors to the recorder's front panel AUDIO/VIDEO input connectors.

bIf the camcorder has an S-VIDEO output connector...

... connect the camcorder's S-VIDEO OUT and AUDIO OUT connectors to the recorder's front panel S-VIDEO(S-2) and AUDIO input connectors. The recorder's rear panel S-VIDEO IN and AUDIO IN input connectors are also available.

When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder.

When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder's instruction manual for operating procedure.

BSet recorder’s input mode

Press number key “0” and/or PR +/– to select “F-1” for the AUDIO/VIDEO input connectors, or “S-2” for the AUDIO/S- VIDEO input connectors, depending on the connectors being used.

CSelect “EDIT” for picture control set mode

Follow the “Picture Control” section on page 15, then select “EDIT.”

DStart camcorder

Engage its Play mode.

EStart recorder

Engage its Record mode.

Edit to or from Another Video Recorder



TV Receiver

Player









Your recorder











































































































































































VIDEO CHANNEL

RF Cable (provided)

AV Cable

(not provided)







Another recorder



Recorder



Recorder

Your recorder

TV Receiver

AV Cable

VIDEO

CHANNEL

(not provided)



RF Cable (provided)

Another recorder

Player
