Philips DSX5250 manual Using menu mode, Messages, Using Menu Mode, Navigating in Menu Mode

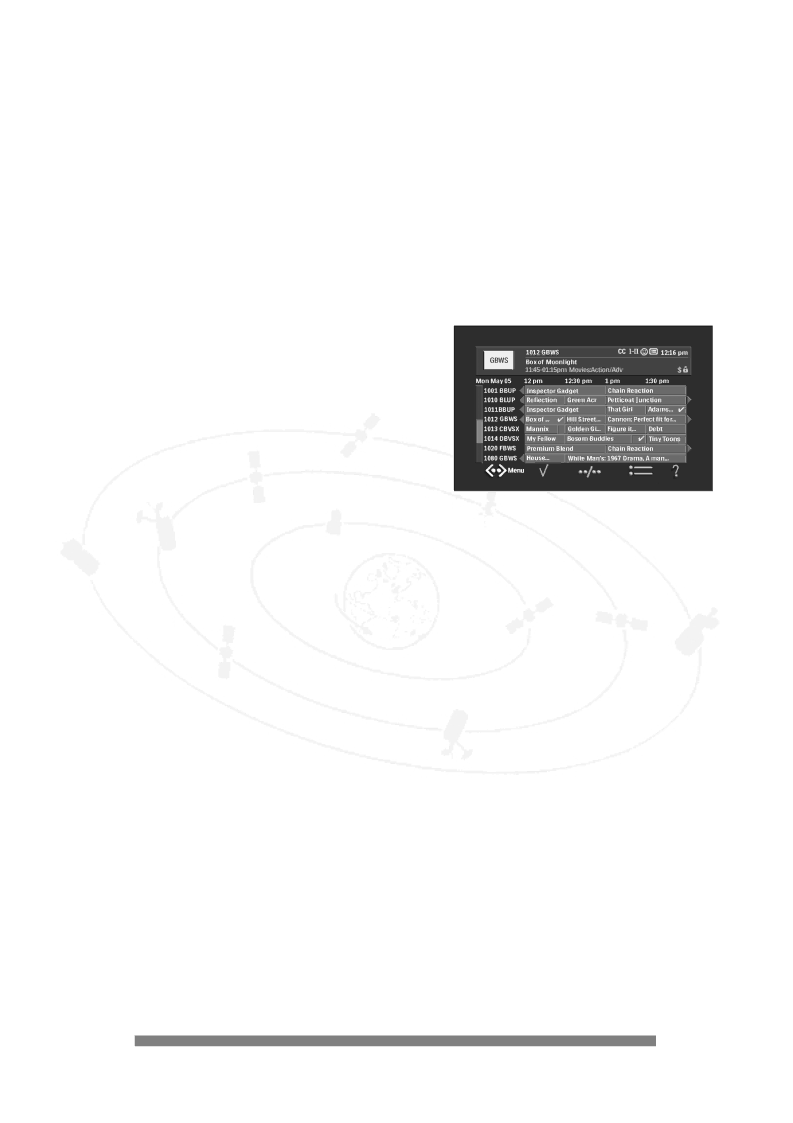

Page 28

16 Using menu mode

Messages

The satellite receiver may occasionally display messages which overlay the Guide.To dismiss a message, press OK.

Software Upgrade Message

When DIRECTV schedules or transmits a software upgrade, you will be notified by an onscreen message. Once a software upgrade is complete, your satellite receiver is ready to use. Old software cannot be restored.

Using Menu Mode

The Menu mode lets you customize the features of your satellite receiver. Categories include General Settings, Access Control, Preferred Language, Purchases, Installation, Upgrades and Mail.

In Menu mode, the following buttons on the remote are inactive: FAVORITES,THEMES, GUIDE, and ALT AUDIO.

To access the main menu from the Guide:

1.Press the MENU button on the remote.

2.Press OK.

To access the main menu from the TV:

1.Press the MENU button on the remote.

To dismiss the menu:

Press the MENU button on the remote control.This removes the menu from the screen and accepts all the changes you have made.

To return to your program and cancel a transaction:

Press EXIT.

Navigating in Menu Mode

To navigate through the menus, use the 3 and 4 buttons to highlight an option.Then press OK to confirm the selection and display a sub-menu or dialog. Selecting items on a sub-menu displays a dialog in which you can change settings or review parameters. To navigate within a dialog, press the 3 and 4 buttons.To accept changes and return to a sub-menu, press OK. If the dialog contained non-exclusive choices, press OK and BACK.

Menu mode defaults

Menu mode has the following defaults:

Screen Format:

Full screen (4:3)

Banner Duration:

5 seconds

Favorites Names:

Maximum 4 lists. List 1, List 2, List 3, List 4.Ten characters per list name

Favorites Channels:

All channels selected for each list

Channel Lock:

None

Maturity Rating:

R

Per-Purchase Limit:

$10.00

Password:

0000

Password Mode:

Unlocked

Menu & Guide Language:

English

Audio Track Language:

English

Dish Configuration*:

Single

The following sections tell you how to change these settings.

*Described in the Installation section (see page 17).

24
