JVC GR-AXM1U Shooting while watching the LCD monitor, Load a Cassette, Enter RECORD-STANDBY Mode

Page 15

RECORDING Basic Recording

LENS COVER

Switch

POWER

Start/Stop

Power indicator

PUSH/OPEN

LCD monitor

Tape remaining time indicator

120MIN119MIN3MIN

1MIN (Blinking) 2MIN (Blinking)

0MIN (Blinking)

*MIN.....(Now calculating)

15

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

Power (pg. 8)

Tape Length/Recording Mode Setting (pg. 11)

Grip Adjustment (pg. 13)

LOAD A CASSETTE

1 First press PUSH/OPEN and open the LCD monitor to an angle of over 60 degrees.

Press EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

Shooting while watching the LCD monitor

ENTER RECORD–STANDBY MODE

2 Make sure the LCD monitor is fully open. Slide the LENS COVER open/close switch to open the lens cover, then set the power switch to CAMERA.

•The power indicator lights and the camcorder enters the Record–Standby mode.

•The scene you’re aimed at appears in the LCD monitor, with the word “PAUSE” superimposed upon it.

START SHOOTING

3 Tilt the LCD monitor upward/downward for best viewability (pg. 17) and press the Recording Start/Stop button.

•The tally lamp lights while recording is in progress, and “ REC ” appears in the LCD monitor.

STOP RECORDING

4 Press the Recording Start/Stop button again to stop recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this

happens, we recommend that you use the viewfinder (pg. 16).

For other notes, refer to pg. 16.

Tally lamp

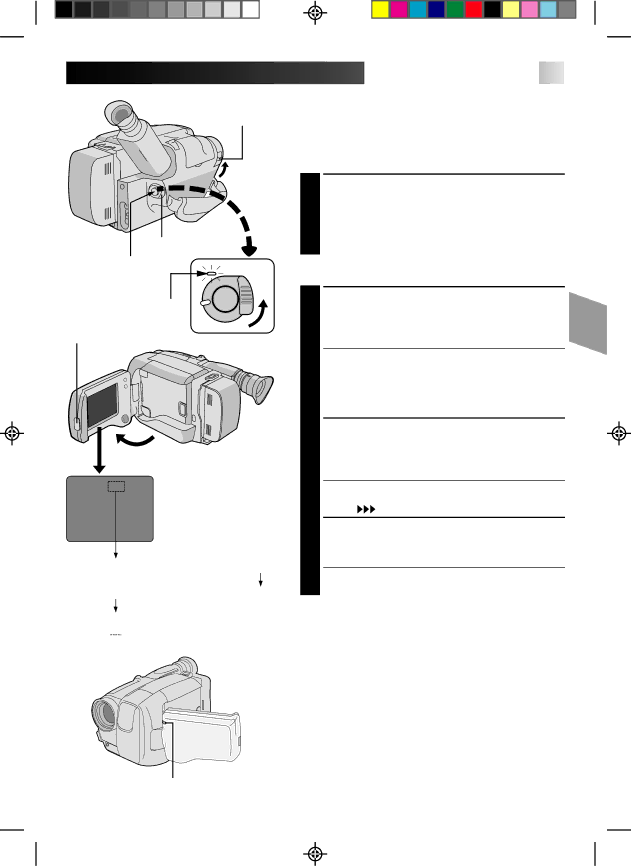

Image 15
