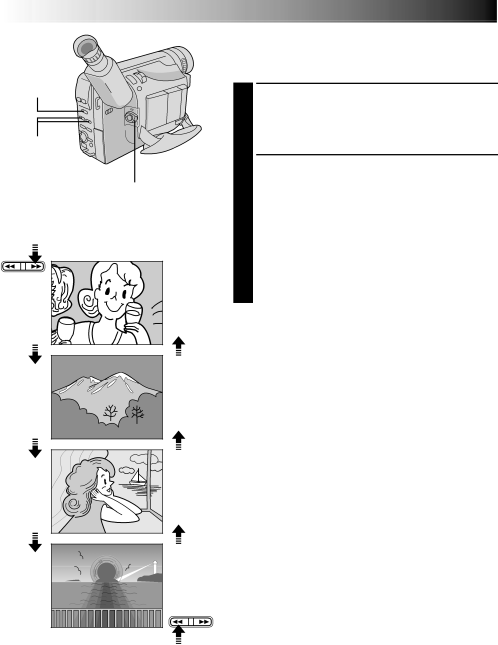

D.S.C. PLAYBACK Basic Playback

Still images shot using this camcoder are automatically numbered, then stored in numerical order in the built-in memory. You can view the still images stored in memory, one at a time, much like flipping through a photo album.

1 Set the System Select Switch to “D.S.C.”, and set the Power Switch to “PLAY”. The power lamp lights and a still image stored in memory is displayed.

•When no still image is stored in memory, the screen becomes blue.

2 Press 3/PAGE+ or 2/PAGE– to select the still image you want to view.

•Each time 2/PAGE– is pressed, the page goes back, while each time 3/PAGE+ is pressed, the page goes next.

•Even if you shoot a new picture after playing back a still image with a low number, this will not overwrite the existing picture because new pictures are automatically stored after the still image most recently stored in memory.

•If there are no stored images, “NO IMAGES STORED” is displayed.

NOTES:

●When the Power Switch is set to “PLAY” and the LCD monitor is opened at an angle of 60 degrees or more, the LCD monitor switches on and the viewfinder switches off automatically to save power.

●The playback picture can be viewed in the viewfinder

(with the LCD monitor shut), on the LCD moitor or on a connected TV ( pg. 38).

●When viewing a playback picture on a connected TV, it may jitter slightly.

●You can also view the playback picture on the LCD monitor with it flipped over and retracted.

●To brighten the LCD monitor, rotate the Select Wheel (BRIGHT) towards “+”. To darken the LCD monitor, rotate it towards “–”.
