Panasonic NV GS 330 Playback on TV, To display the on-screen information On the TV

Page 41

Playback mode

Playback on TV

Images recorded by this camera can be played back on a TV.

≥Insert a recorded tape or card into this camera.

≥Be sure that the power of the unit is turned off before connecting it to a TV.

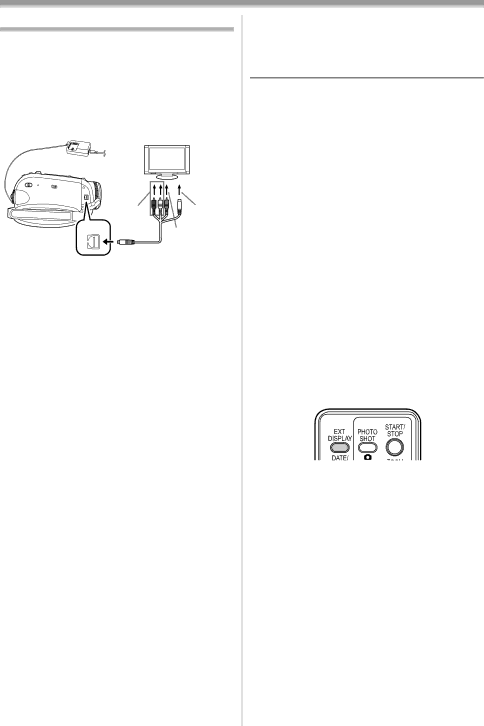

1Connect the movie camera and a TV.

	2
[AUDIO IN]	[S-VIDEO IN]
A/V	[VIDEO IN]

1

≥Connect the movie camera and a TV by using the Multi cable 1.

≥If the TV has an S-Video terminal, then also connect to this terminal 2. It allows you to enjoy more beautiful images. (Do not forget to also connect to the Video and Audio

terminals.)

2Turn on this camera and set the mode dial to the Tape Playback Mode (or Card Playback Mode).

3Select the input channel on the TV.

≥If the images are not played back correctly on the TV (e.g. they are displayed vertically), perform the menu operations in accordance with the aspect ratio of the TV monitor.

Set [SETUP] >> [TV ASPECT] >> [16:9] or [4:3].

4Move the joystick up to select the [1/;]

icon to start playback.

≥The image and audio are output on the TV.

5Move the joystick down to select the [∫] icon to stop playback.

≥Whenever plugging in the S-Video terminal, plug in the VIDEO IN terminal and AUDIO IN terminal, too.

≥Use the AC adaptor to free you from worrying about the battery running down.

ªIf the image or audio from this camera

is not output on the TV

≥Check that the plugs are inserted as far as they go.

≥Check the [12bit AUDIO] settings. (-48-) ≥Check the connected terminal.

≥Check the TV’s input setting (input switch). (For more information, please read the operating instructions for the TV.)

ªTo display the on-screen information

on the TV

The information displayed on the LCD monitor or the viewfinder (operation icon, time code and mode indication, etc.) can be displayed on the TV.

(This operation is only available when using the remote control.)

1Press the [EXT DISPLAY] button on the remote control.

≥Press the button again to erase the information.

41

VQT1L48
