Pioneer AVH-P5950DVD installation manual Français Italiano Nederlands PyÒÒÍËÈ

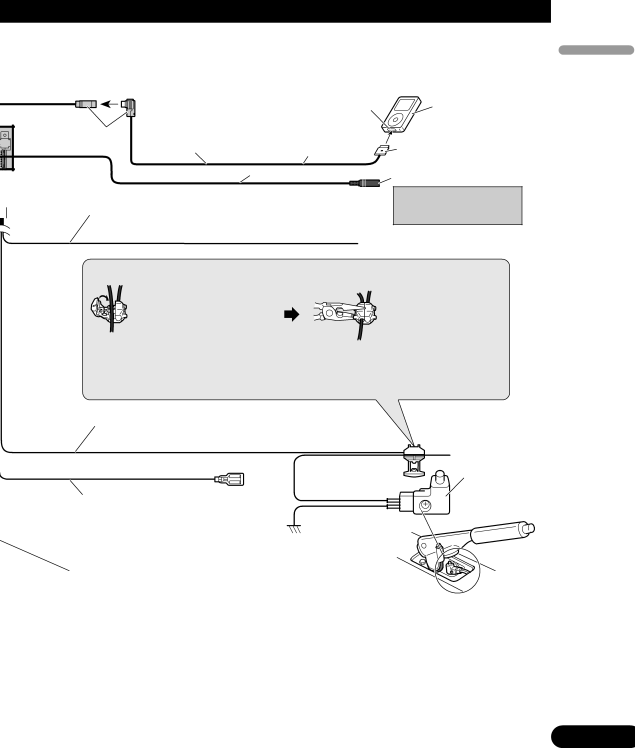

	Dock connector port	iPod with Dock
		Connector
Gray	Interface cable (e.g., CD-I200)
	(sold separately)	Dock connector
	2 m
	20 cm	AUX jack (3.5 ø)
Yellow/black		Use a mini plug cable to
If you use equipment with Mute function, wire this lead to		connect with auxiliary
the Audio Mute lead on that piece of equipment. If not,		equipment.
keep the Audio Mute lead free of any connections.
Connection method
	1. Clamp the lead.	2. Clamp firmly with
		needle-nosed pliers.

Note:

•The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle Owner’s Manual or dealer.

Light green

Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake switch.

	Parking brake
Power supply side	switch

Blue/white

Connect to system control terminal of the power Ground side amp or auto-antenna relay control terminal

(max. 300 mA 12 V DC).

With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers.

When you connect the separately sold multi-	Note:
channel processor (e.g., DEQ-P7650) to this	• Change the initial setting of this unit (refer to the
unit, do not connect anything to the speaker	Operation Manual). The subwoofer output of this unit
leads and system remote control	is monaural.
(blue/white).

English

Français Italiano Nederlands PyÒÒÍËÈ

4

<CRD4215-A> 5

ENG/MASTER 96 INST
