Yorkville Sound YS1014 owner manual Padded Patch Cable

Page 21

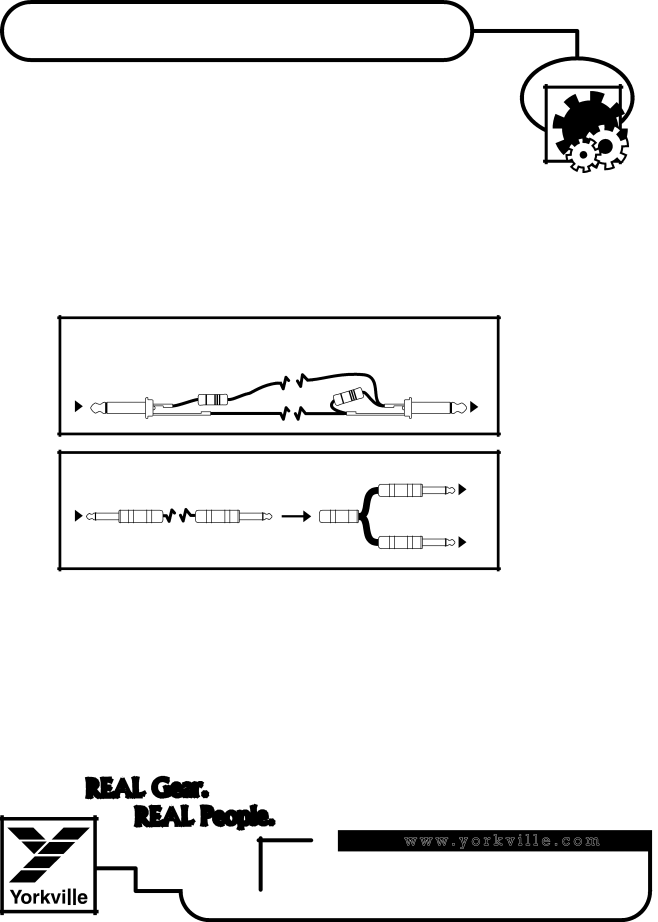

PADDED PATCH CABLE

**To fashion the -20dB padded patch cables, start with two short, shielded patch cords. On each cord, solder a 10k Ohm resistor in series with the tip of the plug to be inserted in a LINE OUT jack, then solder a 2.2k Ohm resistor across the plug to be inserted in an AMP IN jack. It would then be advisable to identify either the LINE OUT or AMP IN plugs on both cords perhaps with tape or a dab of paint on the plug jacket.

20dB Pad Cable Wiring



10 kOhm

2.2 kOhm



From MAIN OUT

resistor

resistor

To AMP IN





Sample Hook-Up

To AMP A IN

From MAIN OUT

Y-Adapter

20dB Pad Cable

To AMP B IN

**Pour fabriquer les câbles atténuateurs (- 20dB) de raccordement, commencez avec des câbles de raccordement blindés courts. Sur chaque câble, soudez une résistance de 10k Ohm en série avec la pointe de la prise à être insérée dans le jack LINE OUT. Soudez ensuite une résistance de 2.2k Ohm à travers la prise à être insérée dans le jack AMP IN. Nous vous recommandons d'identifier l'une ou l'autre des extrémités de chaque câble.

REAL Gear.

Canada

U.S.A.



REAL People.

Voice: (905) 837-8481

Voice: (716) 297-2920



Fax: (716) 297-3689



Fax: (905) 837-8746

CANADA



w w w . y o r k v i l l e . c o m



Yorkville Sound

Yorkville Sound Inc.



550 Granite Court

4625 Witmer Industrial Estate

in



L1W-3Y8 CANADA

14305 USA

Printed



Pickering, Ontario

Niagara Falls, New York
