Fluke 189 user manual View Display, Mem

Page 68

Model 187 & 189

Users Manual

Table 4-1. View Display

No.	Item

q arrow icons.

Description

Denotes use of [ or ] to select higher or lower index numbers.

Z symbol

;

Hazardous voltage could be present at inputs.

Identifies that the average of a logging interval is displayed. When off, a saved reading is displayed.

2			3
2
			4
1	7	6	5
			tc035f.eps

Memory data

Time display

MEM

Index number

Shows logged readings or secondary readings.

Indicates a time stamp (f off) or elapsed time (f on) display.

On during View memory.

Identifies the data entry being viewed.

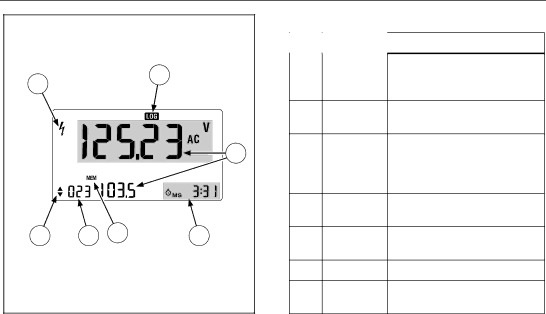

Figure 4-1. View Display

4-4
