Craftsman 137218030001, 137.218030 Not run, contact Sears Service Center at 1-800-4-MY=HOME

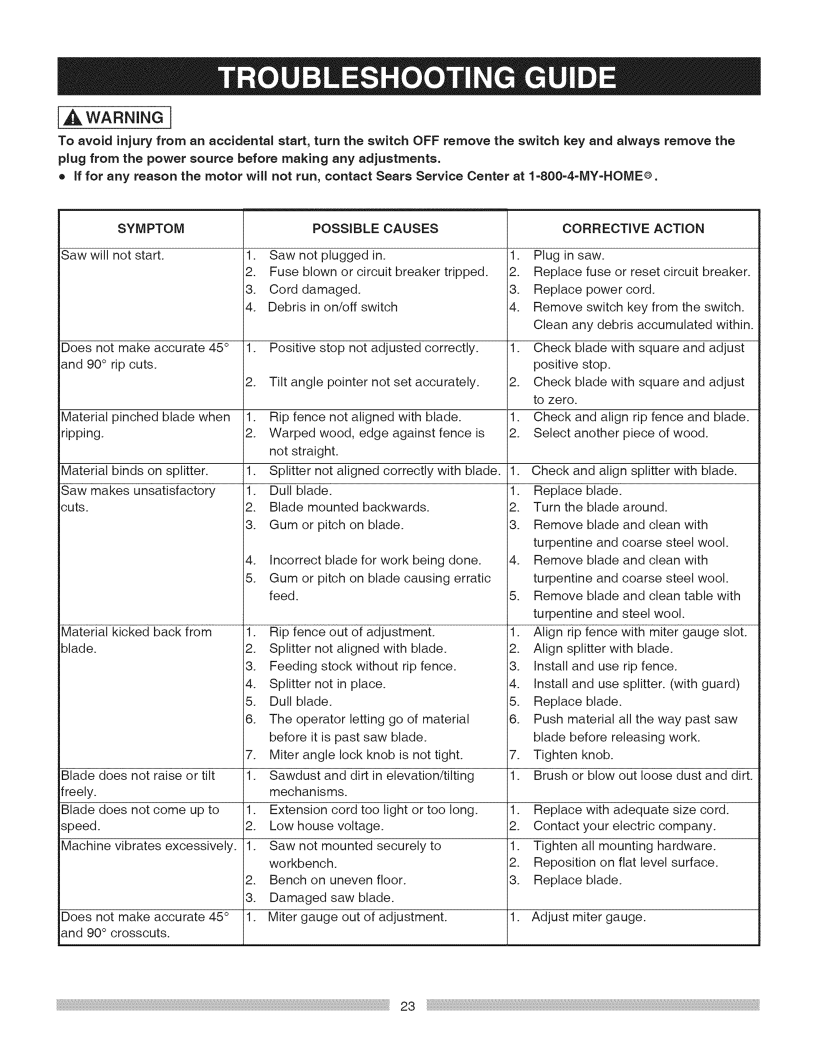

Page 23

WARNING I

To avoid injury from an accidental plug from the power source before = If for any reason the motor will

start, turn the switch OFF remove the switch key and always remove the making any adjustments,

not run, contact Sears Service Center at 1-800-4-MY=HOME®.

SYMPTOM

POSSIBLE CAUSES

CORRECTIVE ACTION

Saw will not start.

1.

Saw not plugged in.



2.

Fuse blown or circuit breaker tripped.



3.

Cord damaged.



4.

Debris in on/off switch

1.

Plug in saw.

2.

Replace

fuse or reset circuit breaker.

3.

Replace

power cord.

4.

Remove

switch key from the switch.



Clean any debris accumulated within.

Does not make accurate 45 ° and 90° rip cuts.

Material pinched blade when ripping.

Material binds on splitter.

Saw makes unsatisfactory cuts.

Material kicked back from blade.

Blade does not raise or tilt freely.

Blade does not come up to speed.

Machine vibrates excessively.

Does not make accurate 45 ° and 90° crosscuts.

1.Positive stop not adjusted correctly.

2.Tilt angle pointer not set accurately.

1.Rip fence not aligned with blade.

2.Warped wood, edge against fence is not straight.

1.Splitter not aligned correctly with blade.

1.Dull blade.

2.Blade mounted backwards.

3.Gum or pitch on blade.

4.Incorrect blade for work being done.

5.Gum or pitch on blade causing erratic feed.

1.Rip fence out of adjustment.

2.Splitter not aligned with blade.

3.Feeding stock without rip fence.

4.Splitter not in place.

5.Dull blade.

6.The operator letting go of material before it is past saw blade.

7.Miter angle lock knob is not tight.

1.Sawdust and dirt in elevation/tilting mechanisms.

1.Extension cord too light or too long.

2.Low house voltage.

1.Saw not mounted securely to workbench.

2.Bench on uneven floor.

3.Damaged saw blade.

1.Miter gauge out of adjustment.

1. Check blade with square and adjust

positive stop.

2.Check blade with square and adjust to zero.

1.Check and align rip fence and blade.

2.Select another piece of wood.

1.Check and align splitter with blade.

1.Replace blade.

2.Turn the blade around.

3.Remove blade and clean with turpentine and coarse steel wool.

4.Remove blade and clean with turpentine and coarse steel wool.

5.Remove blade and clean table with turpentine and steel wool.

1.Align rip fence with miter gauge slot.

2.Align splitter with blade.

3.Install and use rip fence.

4.Install and use splitter. (with guard)

5.Replace blade.

6.Push material all the way past saw blade before releasing work.

7.Tighten knob.

1.Brush or blow out loose dust and dirt.

1.Replace with adequate size cord.

2.Contact your electric company.

1.Tighten all mounting hardware.

2.Reposition on flat level surface.

3.Replace blade.

1.Adjust miter gauge.
