Miller Electric CV-2 owner manual Selector Switch S1 AC Connections

FRONT FRONT

Rectifier SR3:

Connect CV-2 Leads

17 And 27 With

Existing Leads

On SR3

Range Switch S3:

Connect CV-2 Leads

17 And 27 With

Existing Leads On SR3

BIG 30 DIESEL And BIG 30A DIESEL	BIG 40 DIESEL, BIG 40G, And BIG 50 DIESEL
Rectifier SR3	Rear View Of Range Switch
	ST-145 422 / ST-145 423

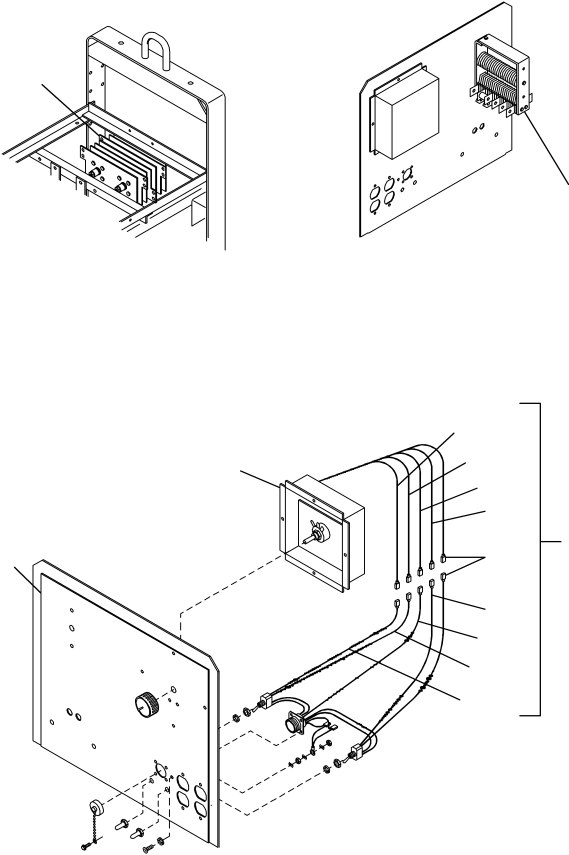

Figure 3-3. Selector Switch S1 AC Connections

		Lead 628
	Current
	Regulator	Lead 634
	Box
		Lead 632
		Lead 623
			Leads From
Nameplate		Lead 625	CV-2 Control

Lead 623

Lead 632

Lead 634

Lead 628

SC-111 077-A

Figure 3-4. Lead Connections From CV-2 To Current Regulator Circuitry

OM-880 Page 6
