3.Use UL listed wire connectors and connect black wires (B) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

4.Connect green (or bare) ground wire from home power supply to yellow-green ground wire (C) in terminal box using UL listed wire connectors.

5.Install terminal box cover.

6.Check that all light bulbs are secure in their sockets.

7.Reconnect power.

Install Vent Covers (Optional)

If you are installing an optional full width duct cover, follow the instructions included with that product.

Complete Installation

1.Install metal grease filters. See the “Range Hood Care” section.

2.Check the operation of the range hood blower and light. See the “Range Hood Use” section.

NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the right-hand underside of the range hood.

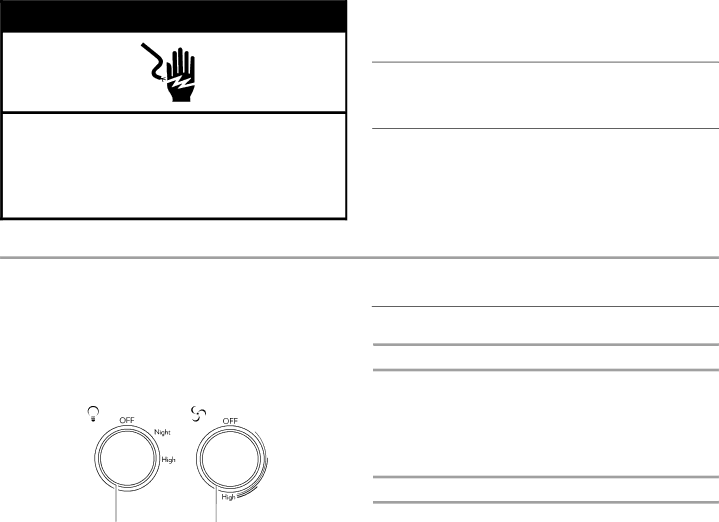

AB

A. Halogen light control

B. Fan control

Range Hood Controls

Operating the lights

1.Turn the light switch to the “Night” position to use the range hood lights as a night light.

2.Turn the light switch to the “High” position to turn the range hood lights On.

3.Turn the light switch to the “Off” position to turn the range hood lights Off.

Operating the blower

1.Turn the blower switch to the first position to turn the range hood on Low.

2.Turn the blower switch to the second position to turn the range hood on Medium.

3.Turn the blower switch to the third position to turn the range hood on Medium - High.

4.Turn the blower switch to the High position to turn the range hood on High.

5.Turn the blower switch to the “Off” position to turn the range hood blower Off.

10
