Setting up your French Door Refrigerator

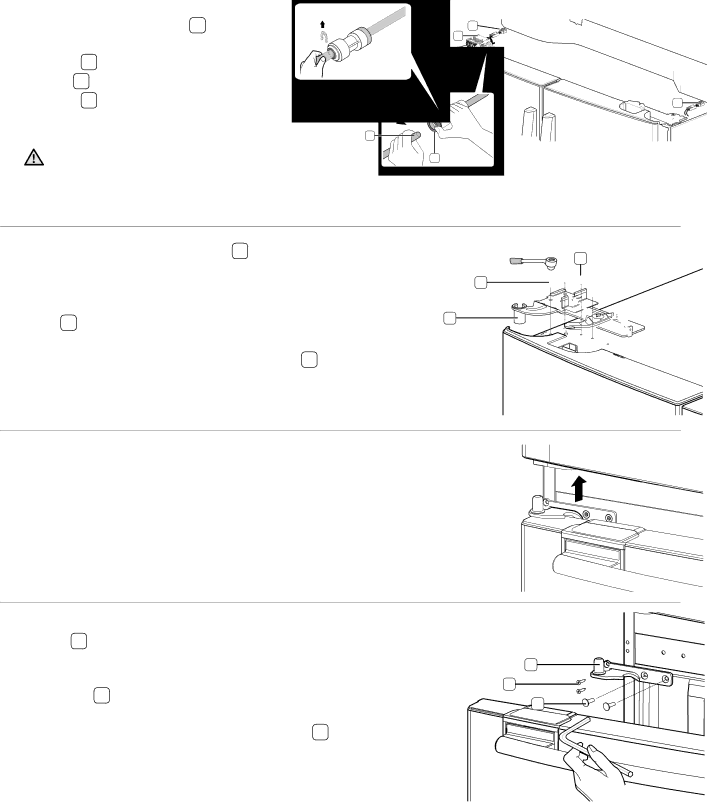

2. Disconnect two connectors ( 3 ) at

Red Clip

3



(1/4”)



each side of the top cap and the one

4



connector( 4 ) on left side door . Remove the tube ( 5 ) with pressing the dark gray color part ( 6 ) of the water line coupler.



5

If a red clip is on the coupler, it must be removed

6

CAUTION before removing the tube.

3

3.Remove the three hex head bolts( 7 ) attached to the upper left and right door hinges with a Wrench(10mm).

With a Philips head screwdriver, remove the ground screw( 8 ) attached to the upper left and right door hinges.

Remove the upper left and right door hinges( 9 ).

8

7

9

4. Lift the door straight up to remove.

5.With a Philips head screwdriver, remove the two screws( 10 ) attached to the lower left and right door hinges.

With an Allen Wrench(3/16”), remove the two hex head bolts( 11 ) attached to the lower left and right door hinges.

Remove the lower left and right door hinges( 12 ).

12

10

11

10_ setting up
