Whirlpool Slide-In Electric Ranges Plate External gas orifice spud Internal gas orifice spud

Page 17

IMPORTANT: The three flame burner has 2 gas orifice spuds. Do not forget to change the external gas orifice spud located under the plate.

A

B

C

A.Plate

B.External gas orifice spud

C.Internal gas orifice spud

4.Apply masking tape to the end of a 7 mm nut driver to help hold the internal gas orifice spud in the nut driver while changing it. Press nut driver down onto the internal gas orifice spud and remove by turning it counterclockwise and lifting out. Set internal gas orifice spud aside.

5.Use a 7 mm combination wrench to remove the external orifice spud. Turn counterclockwise to remove. Set external gas orifice spud aside.

6.Replace each LP gas orifice spud with the correct Natural gas orifice spud. Refer to the following chart for correct Natural gas orifice spud placement.

Natural Gas Orifice Spud Chart for Three Flame Burners

Burner Location

Burner Rating

Size

Left front (external

12,200

Btu/h

1.70 mm

three burner)















Left front (internal three

2,800

Btu/h

0.70 mm

burner)















7.Replace burner plate, head and cap.

8.Place LP gas orifice spuds in plastic parts bag for future use and keep with package containing literature.

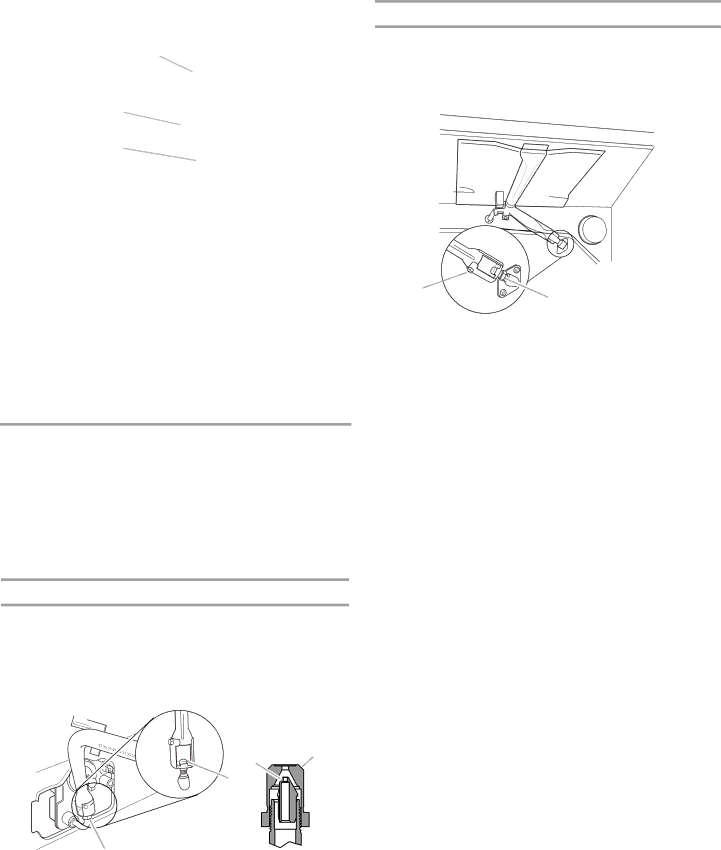

To Convert Oven Bake Burner

1.Remove oven racks.

2.Use a ½" combination wrench to loosen the orifice hood away from the pin (about 2 to 2½ turns). The oven bake burner flame cannot be properly adjusted if this conversion is not made. See “Adjust Oven Bake Burner Flame” in the “Electronic Ignition System” section.

A

B

A

A

A. Orifice hood

B. Pin

To Convert Oven Broil Burner

1.Use a ½" combination wrench to loosen the orifice hood away from the pin (about 2 to 2½ turns). The oven broil burner flame cannot be properly adjusted if this conversion is not made. See “Adjust Oven Broil Burner Flame” in the “Electronic Ignition System” section.

A

B

A. Locking screw

B. Orifice hood

2.Reinstall the warming or storage drawer. See the “Replace Oven Racks and Warming or Storage Drawer” section for instructions.

3.Complete installation. See “Make Gas Connection” and “Electronic Ignition System” sections.

Checking for proper cooktop burner and oven bake burner flame is very important. Natural gas flames do not have yellow tips.

IMPORTANT: You may have to adjust “LO” setting for each cooktop burner.

17
