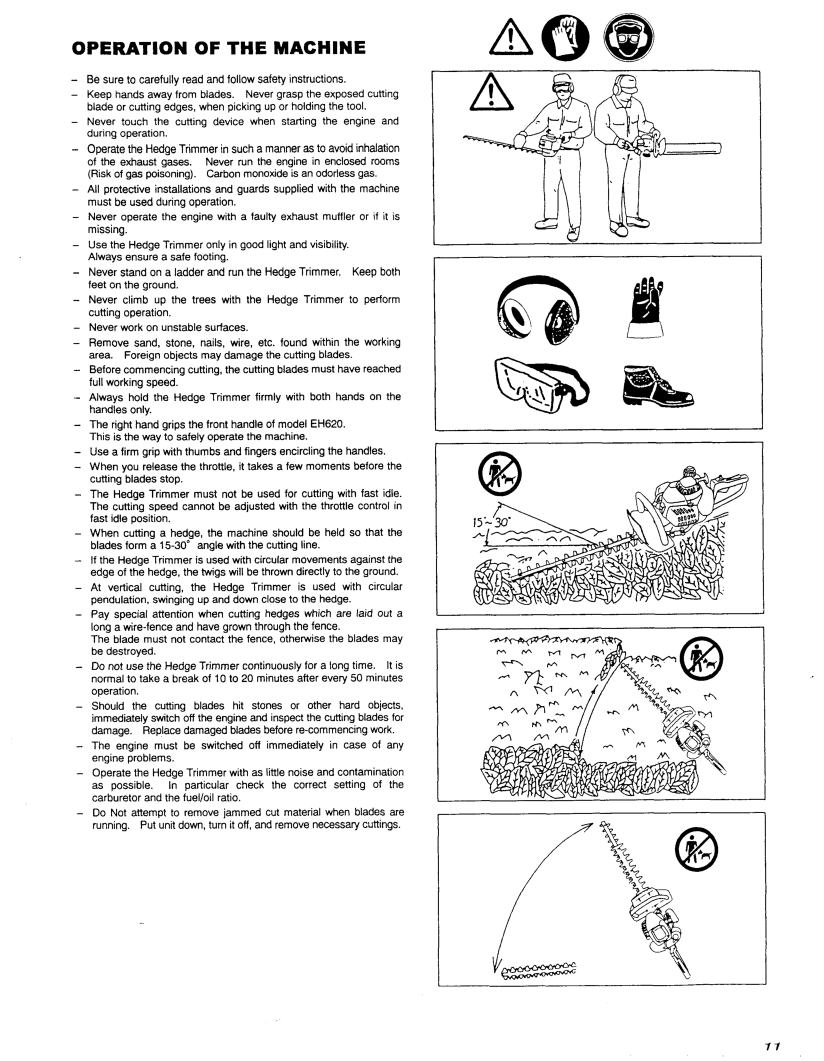

OPERATION OF THE MACHINE

- Be sure to carefully read and follow safety instructions.





- Keep hands away from blades.

Never grasp the exposed cutting



-

blade or cutting edges, when picking up or holding the tool.





Never touch the cutting device when starting the engine and



-

during operation.











Operate the Hedge Trimmer in such a manner as to avoid inhalation





of the exhaust gases. Never run the engine in enclosed rooms





(Risk of gas poisoning).

Carbon monoxide is an odorless gas.





- All protective installations and guards supplied with the machine



-

must be used during operation.









Never operate the engine with a faulty exhaust muffler or if it is





missing.











- Use the Hedge Trimmer only in good light and visibility.





-

Always ensure a safe footing.









Never stand on a ladder and run the Hedge Trimmer.

Keep both



-

feet on the ground.











Never climb up the trees with the Hedge Trimmer to perform





cutting operation.











- Never work on unstable surfaces.







-

Remove sand, stone, nails, wire, etc. found within the working



-

area. Foreign objects may damage the cutting blades.





Before commencing cutting, the cutting blades must have reached



-

full working speed.











Always hold the Hedge Trimmer firmly with both hands on the



-

handles only.











The right hand grips the front handle of model EH620.





-

This is the way to safely operate the machine.







Use a firm grip with thumbs and fingers encircling the handles.





-

When you release the throttle, it takes a few moments before the



-

cutting blades stop.











The Hedge Trimmer must not be used for cutting with fast idle.





The cutting speed cannot be adjusted with the throttle control in





fast idle position.











- When cutting a hedge, the machine should be held so that the



-

blades form a 15-30"angle with the cutting line.







If the Hedge Trimmer is used with circular movements against the





edge of the hedge, the twigs will be thrown directly to the ground.



- At vertical cutting, the Hedge Trimmer is used with circular



-

pendulation, swinging up and down close to the hedge.





Pay special attention when cutting hedges which are laid out a





long a wire-fence and have grown through the fence.









The blade must not contact the fence, otherwise the blades may



-

be destroyed.











Do not use the Hedge Trimmer continuously for a long time.

It is





normal to take a break of 10 to 20 minutes after every 50 minutes





operation.









h

- Should the cutting blades hit stones or other hard objects,





immediately switch off

the engine and inspect the cutting blades for



-

damage. Replace damaged blades before re-commencing work.



The engine must be

switched

off immediately in

case of

any





engine problems.











- Operate the Hedge Trimmer with as little noise and contamination as possible. In particular check the correct setting of the carburetor and the fuel/oil ratio.

- Do Not attempt to remove jammed cut material when blades are running. Put unit down, turn it off, and remove necessary cuttings.
