Craftsman 917.271142 manual Automatic Transmission Warm UP, Purge Transmission

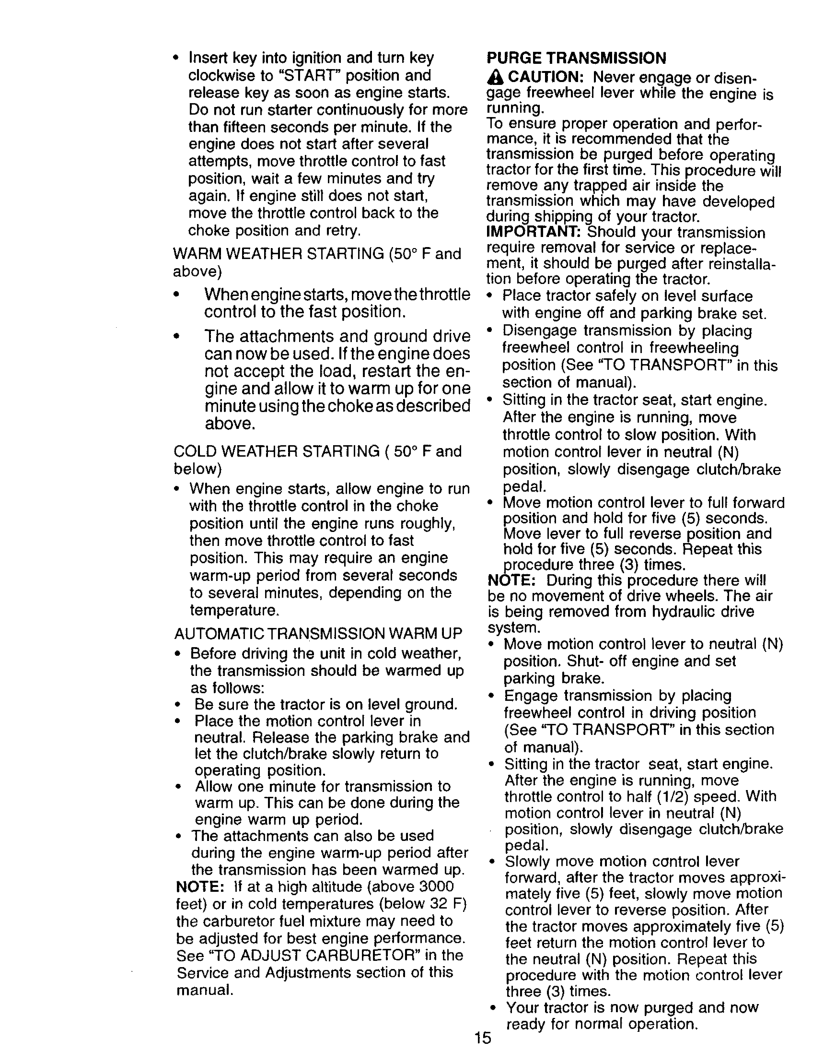

Page 15

•Insert key into ignition and turn key clockwise to "START" position and release key as soon as engine starts. Do not run starter continuously for more than fifteen seconds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try

again. If engine still does not start, move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50° F and above)

When enginestarts, movethethrottle control to the fast position.

The attachments and ground drive can now be used. If the engine does not accept the load, restart the en- gine and allow it to warm up for one

minute using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and below)

•When engine starts, allow engine to run with the throttle control in the choke position until the engine runs roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

•Before driving the unit in cold weather,

the transmission should be warmed up as follows:

•Be sure the tractor is on level ground.

•Place the motion control lever in neutral. Release the parking brake and let the clutch/brake slowly return to operating position.

•Allow one minute for transmission to warm up. This can be done during the engine warm up period.

•The attachments can also be used

during the engine warm-up period after the transmission has been warmed up.

NOTE: if at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to

be adjusted for best engine performance. See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disen- gage freewheel lever while the engine is

running.

To ensure proper operation and perfor- mance, it is recommended that the

transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have developed during shipping of your tractor. IMPORTANT: Should your transmission require removal for service or replace- ment, it should be purged after reinstalla- tion before operating the tractor.

•Place tractor safely on level surface with engine off and parking brake set.

•Disengage transmission by placing freewheel control in freewheeling position (See "TO TRANSPORT" in this section of manual).

•Sitting in the tractor seat, start engine. After the engine is running, move throttle control to slow position. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal.

•Move motion control lever to full forward position and hold for five (5) seconds. Move lever to full reverse position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there will be no movement of drive wheels. The air

is being removed from hydraulic drive system.

•Move motion control lever to neutral (N) position. Shut- off engine and set parking brake.

•Engage transmission by placing freewheel control in driving position (See "TO TRANSPORT" in this section of manual).

•Sitting in the tractor seat, start engine. After the engine is running, move throttle control to half (1/2) speed. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal.

•Slowly move motion control lever forward, after the tractor moves approxi-

mately five (5) feet, slowly move motion control lever to reverse position. After the tractor moves approximately five (5) feet return the motion control lever to the neutral (N) position. Repeat this procedure with the motion control lever three (3) times.

•Your tractor is now purged and now ready for normal operation.

15
