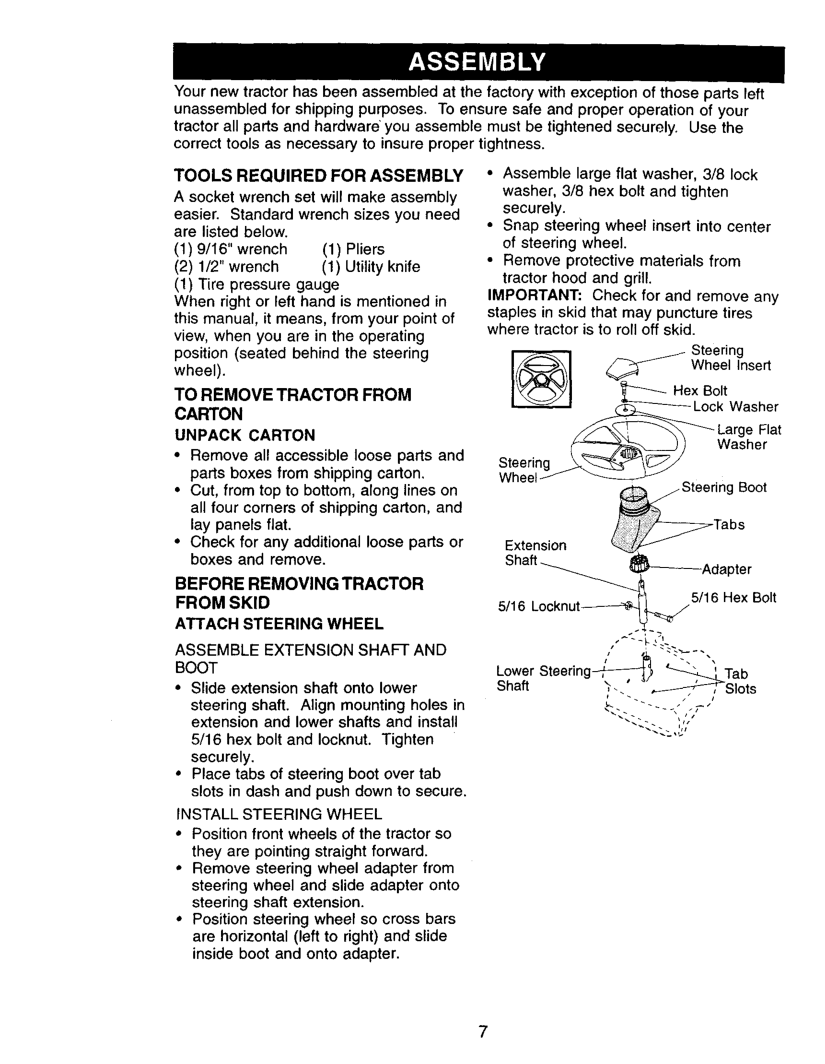

Craftsman 917.271142 Tools Required for Assembly, To Remove Tractor from Carton, Unpack Carton

Page 7

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware" you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes you need

are

listed below.





(1)

9/16"

wrench

(1)

Pliers

(2)

1/2"

wrench

(1)

Utility knife

(1)

Tire

pressure

gauge



When right or left hand is mentioned in this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

Remove all accessible loose parts and parts boxes from shipping carton.

Cut, from top to bottom, along lines on all four corners of shipping carton, and lay panels flat.

Check for any additional loose parts or boxes and remove.

BEFORE REMOVING TRACTOR FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND BOOT

Slide extension shaft onto lower

steering shaft. Align mounting holes in extension and lower shafts and install

5/16 hex bolt and Iocknut. Tighten securely.

Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

Position front wheels of the tractor so they are pointing straight forward.

Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension.

Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter.

Assemble large flat washer, 3/8 lock washer, 3/8 hex bolt and tighten securely.

Snap steering wheel insert into center of steering wheel.

Remove protective materials from tractor hood and grill.

IMPORTANT: Check for and remove any staples in skid that may puncture tires where tractor is to roll off skid.



_

_

Steering



_



Wheel Insert







Hex Bolt

_Lock



Washer

f F_

_,

_

_- Large Flat

____)) Washer

_

Steering Boot

Extension



Shaft __-----Adapter



5/16 Locknut__

"5/16 Hex Bolt

f- 4-.,_.

Lower Steering



'_,-_I

Tab

Shaft

l "-



Slots

7
