Craftsman 917.271142 manual KEY Part NO. NO.DESCRIPTION

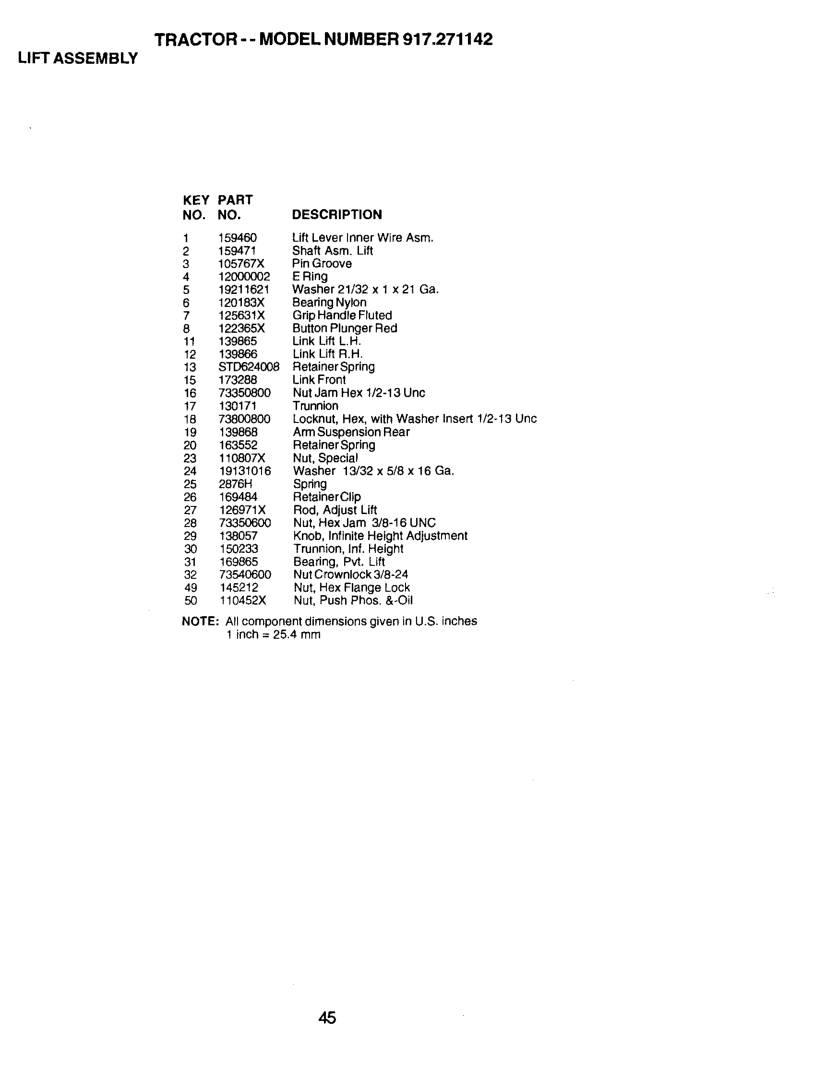

Page 45

TRACTOR - - MODEL NUMBER 917.271142

LIFT ASSEMBLY

KEY PART

NO. NO.DESCRIPTION

1159460 Lift Lever Inner Wire Asm.

2159471 Shaft Asm. Lift

3105767X Pin Groove

412000002 ERing

519211621 Washer 21/32 x 1 x 21 Ga.

6120183X Beadng Nylon

7125631X Grip Handle Fluted

8122365X Button Plunger Red

11 139865 Link Lift LH.

12 139866 Link Lift R.H.

13STD624008 Retainer Spring

15173288 Link Front

1673350800 Nut Jam Hex 1/2-13 Unc

17130171 Trunnion

1873800800 Locknut, Hex, with Washer Insert 1/2-13 Unc

19139868 Arm Suspension Rear

20 163552 Retainer Spring

23 110807X Nut, Special

2419131016 Washer 13/32 x 5/8 x 16 Ga.

252876H Spring

26169484 RetainerClip

27126971X Rod, Adjust Lift

2873350600 Nut, Hex Jam 3/8-16 UNC

29138057 Knob, Infinite Height Adjustment

30150233 Trunnion, Inf. Height

31169865 Bearing, Pvt. Lift

3273540600 Nut Crownlock 3/8-24

49145212 Nut, Hex Flange Lock

50110452X Nut, Push Phos. &-Oil

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

45
