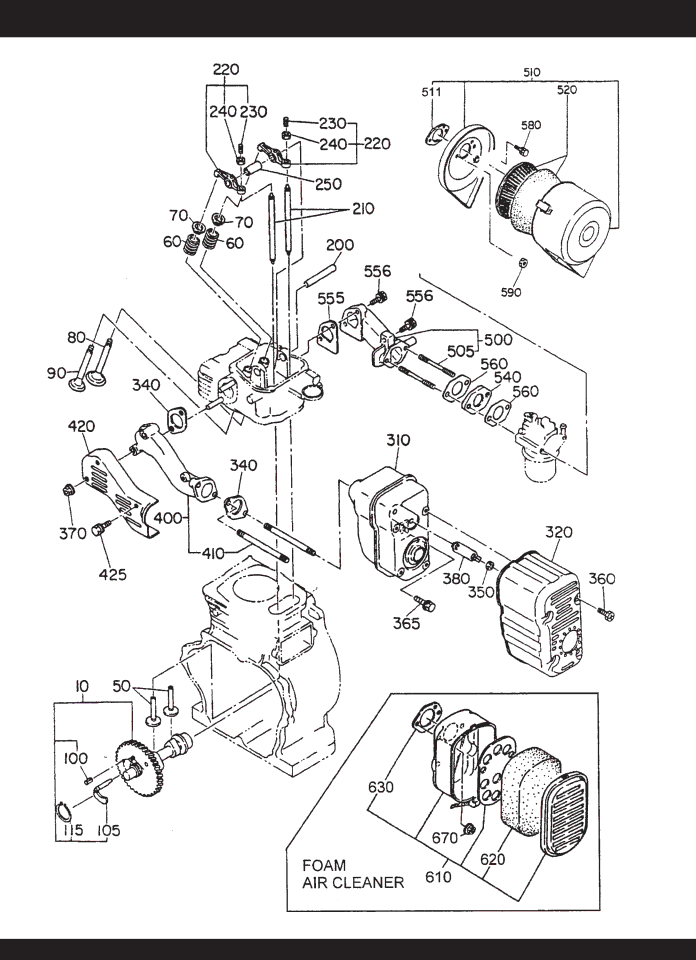

ROBIN EH-25 ENGINE — INTAKE & EXHAUST ASSY.

INTAKE & EXHAUST ASSY.

PAGE 38 — GA-3.6RZ3 A.C. GENERATOR— PARTS & OPERATION MANUAL — REV. #3 (09/03/04)
