OPERATION

Moving Machine By Hand

When pushing or pulling the mower, be sure to engage the EZT Hydrogear bypass linkages. The EZT bypass linkages are located on the rear of the frame, below the rear engine guard.

1.Raise the deck into the highest cutting position.

2.Pull the EZT bypass linkages out and into the slots. Release linkages to hold in the bypass position.

3.Release park brake.

4.To reengage the EZT’s to drive, reverse the above procedure.

WARNING!

Bypass linkages are located close to the muffler. To prevent burns, the engine should be shut off and allowed to cool before the bypass linkage levels are handled.

8050-018

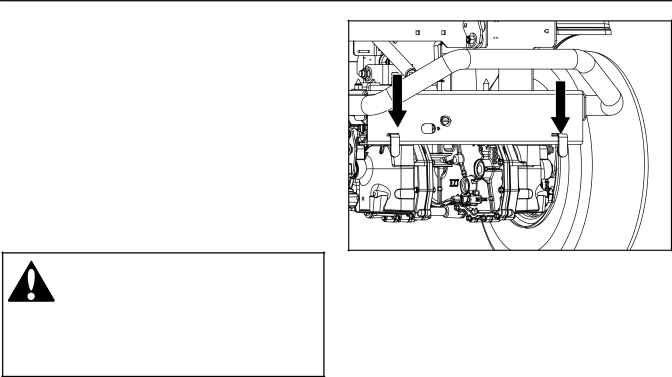

Set bypass linkages into slots on both sides

32
