Husqvarna RZ3016/966612301, RZ3019 BF/966582101, RZ3016 CA/966612302 EZT Belt, Cutting Blades

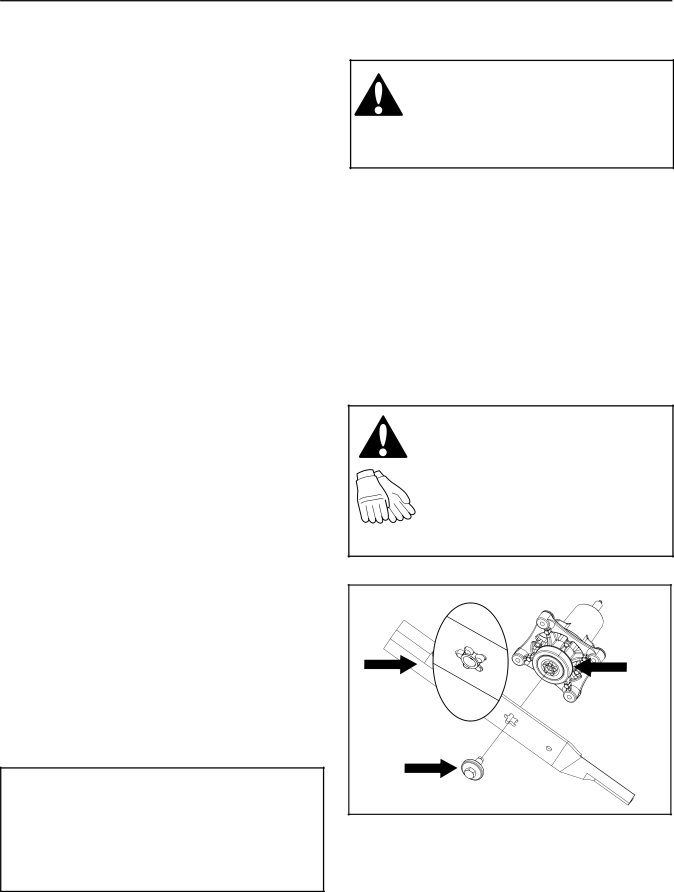

Page 38

MAINTENANCE

EZT Belt

To replace EZT belt

Park the mower on a level surface. Engage the park brake.

EZT belt removal

NOTE: Be careful not to damage the fan blades on the EZT as this can affect cooling or damage the EZT.

1.Remove the deck belt (see To Replace Deck Belt in this section of the manual).

2.Create slack in the belt by pushing the spring loaded idler arm inward. Rotate arm to release belt tension.

3.The belt should now be able to be removed from the engine pulley and EZT pulleys.

Belt installation

1.Wrap the EZT belt around the EZT pulleys.

2.Route the belt around the inside of the idler pulley.

3.Wrap the belt around the engine pulley.

WARNING!

The engine and the exhaust system, become very hot during operation. Risk for burns if touched. Allow engine and exhaust system before servicing.

Cutting Blades

To attain the best mowing effect, it is important that blades are well sharpened and not damaged.

Replace blades that have been bent or cracked when hitting obstacles.

Let the service workshop decide whether a blade with large nicks can be repaired/ground or must be replaced. Balance the blades after sharpening.

Check the blade mounts.

Blade Replacement

1.Remove blade bolt by turning counterclockwise.

2.Install new or resharpened blade with stamped GRASS SIDE facing towards ground/grass (down) or THIS SIDE UP facing deck and cutter housing.

3.Seat the blade's opening firmly onto the cutter housing.

4.Tighten blade bolt securely.

5.Torque blade bolt to 90 ft/lbs (122 Nm).

IMPORTANT INFORMATION

Special blade bolt is heat treated. Replace with a Husqvarna bolt if required.

Do not use lower grade hardware than specified.

WARNING!

Blades are sharp. Protect your hands with gloves and/or wrap blades with a heavy cloth when handling.

The sharpening of blades should be carried out by an authorized service workshop.

1

2



3



8058-129

1.Blade

2.Cutter housing

3.Blade bolt (special) Blade attachment

38
