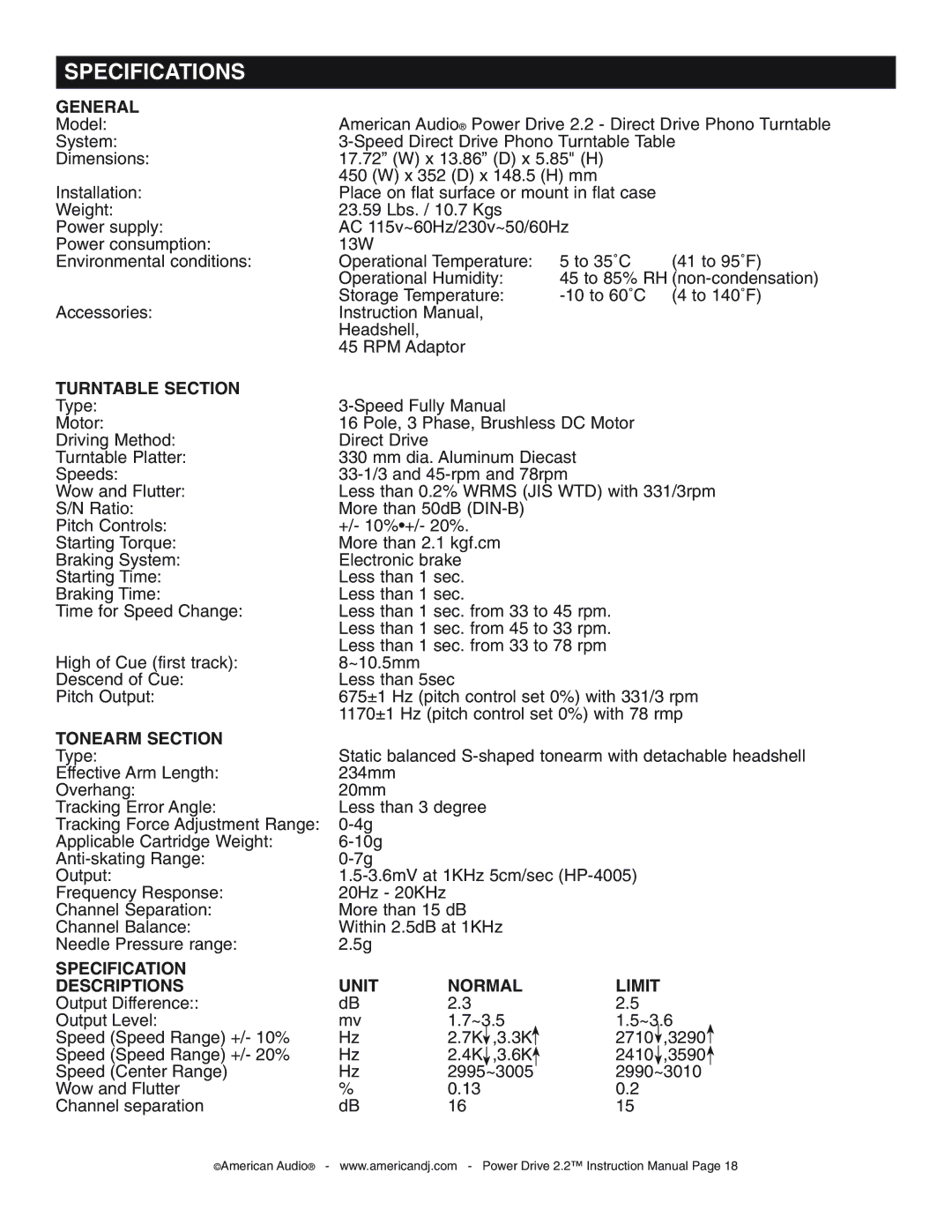

SPECIFICATIONS
GENERAL |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model: | American Audio® Power Drive 2.2 - Direct Drive Phono Turntable | ||||||||||||
System: | |||||||||||||
Dimensions: | 17.72” (W) x 13.86” (D) x 5.85" (H) |
|
| ||||||||||
| 450 (W) x 352 (D) x 148.5 (H) mm |
|
| ||||||||||
Installation: | Place on flat surface or mount in flat case |
|
| ||||||||||
Weight: | 23.59 Lbs. / 10.7 Kgs |
|
|
|
|
|
|
| |||||
Power supply: | AC 115v~60Hz/230v~50/60Hz |
|
| ||||||||||
Power consumption: | 13W |
|
|
|
|
|
|
|
|
|
|
|
|
Environmental conditions: | Operational Temperature: |
|
| 5 to 35˚C | (41 to 95˚F) | ||||||||
| Operational Humidity: |
|
| 45 to 85% RH | |||||||||
| Storage Temperature: |
|
| (4 to 140˚F) | |||||||||
Accessories: | Instruction Manual, |
|
|
|
|
|
|
| |||||
| Headshell, |
|
|
|
|
|
|
|
|
|
|
|
|
| 45 RPM Adaptor |
|
|
|
|
|
|
| |||||
TURNTABLE SECTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
Type: |
|
|
|
|
|
|
| ||||||
Motor: | 16 Pole, 3 Phase, Brushless DC Motor |
|
| ||||||||||
Driving Method: | Direct Drive |
|
|
|
|
|
|
|
|
|
|
|
|
Turntable Platter: | 330 mm dia. Aluminum Diecast |
|
| ||||||||||
Speeds: |
|
| |||||||||||
Wow and Flutter: | Less than 0.2% WRMS (JIS WTD) with 331/3rpm | ||||||||||||
S/N Ratio: | More than 50dB |
|
|
|
|
|
|
| |||||
Pitch Controls: | +/- 10%•+/- 20%. |
|
|
|
|
|
|
| |||||
Starting Torque: | More than 2.1 kgf.cm |
|
|
|
|
|
|
| |||||
Braking System: | Electronic brake |
|
|
|
|
|
|
| |||||
Starting Time: | Less than 1 sec. |
|
|
|
|
|
|
| |||||
Braking Time: | Less than 1 sec. |
|
|
|
|
|
|
| |||||
Time for Speed Change: | Less than 1 sec. from 33 to 45 rpm. |
|
| ||||||||||
| Less than 1 sec. from 45 to 33 rpm. |
|
| ||||||||||
| Less than 1 sec. from 33 to 78 rpm |
|
| ||||||||||
High of Cue (first track): | 8~10.5mm |
|
|
|
|
|
|
|
|
|
|
|
|
Descend of Cue: | Less than 5sec |
|
|
|
|
|
|
| |||||
Pitch Output: | 675±1 Hz (pitch control set 0%) with 331/3 rpm | ||||||||||||
| 1170±1 Hz (pitch control set 0%) with 78 rmp | ||||||||||||
TONEARM SECTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
Type: | Static balanced | ||||||||||||
Effective Arm Length: | 234mm |
|
|
|
|
|
|
|
|
|
|
|
|
Overhang: | 20mm |
|
|
|
|
|
|
|
|
|
|
|
|
Tracking Error Angle: | Less than 3 degree |
|
|
|
|
|
|
| |||||
Tracking Force Adjustment Range: |
|
|
|
|
|
|
|
|
|
|
|
| |
Applicable Cartridge Weight: |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| ||
Output: |
|
| |||||||||||
Frequency Response: | 20Hz - 20KHz |
|
|
|
|
|
|
|
|
|
|
|
|
Channel Separation: | More than 15 dB |
|
|
|
|
|
|
| |||||
Channel Balance: | Within 2.5dB at 1KHz |
|
|
|
|
|
|
| |||||
Needle Pressure range: | 2.5g |
|
|
|
|
|
|
|
|
|
|
|
|
SPECIFICATION |
|
|
|
|
|
|
|
|
|
|
|
|
|
DESCRIPTIONS | UNIT | NORMAL |
|
| LIMIT |
|
| ||||||
Output Difference:: | dB | 2.3 |
|
|
|
| 2.5 |
|
|
|
| ||
Output Level: | mv | 1.7~3.5 | 1.5~3.6 |
| |||||||||
Speed (Speed Range) +/- 10% | Hz | 2.7K |
| ,3.3K |
| 2710 |
| ,3290 |
| ||||
|
| ||||||||||||
|
|
|
| ||||||||||
Speed (Speed Range) +/- 20% | Hz | 2.4K |
|
| ,3.6K |
|
| 2410 |
| ,3590 |
| ||
|
|
|
|
|
| ||||||||
Speed (Center Range) | Hz | 2995~3005 |
|
| 2990~3010 |
| |||||||
Wow and Flutter | % | 0.13 |
|
|
|
| 0.2 |
|
|
|
| ||
Channel separation | dB | 16 |
|
|
|
| 15 |
|
|
|
| ||
©American Audio® - www.americandj.com - Power Drive 2.2™ Instruction Manual Page 18
