INSIDE VIEW:
CLP 1001 | 1 |
E N G L I S H
CLP 2001
4
n
2
14
8
3
7
5
6
913

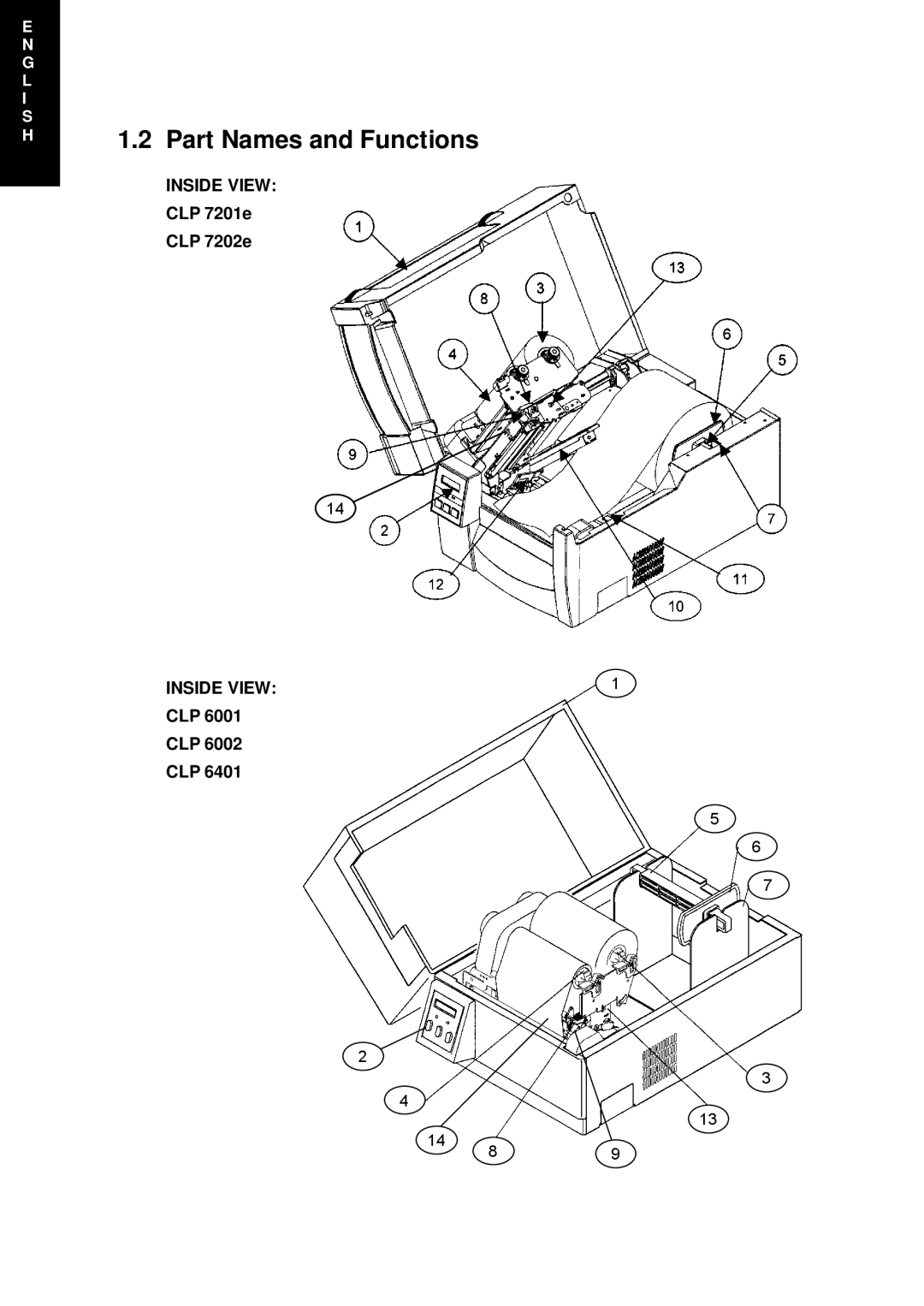

(1)Cover: Opens to allow loading of the media and ribbon.
(2)Control panel: To set the printer configuration settings.
(3)Ribbon holder: To attach the source or unused ribbon (not on CLP 1001)
(4)Ribbon winder: To wind the ribbon after printing (not on CLP 1001)
(5)Roll holder: Holds the roll of media.
(6)Roll guide: Guides the roll of media. This is adjusted according to the width of the media.
(7)Media holder: Holds the roll holder and media. External bracket on 1001 and 2001.
(8)Open lever: To swing the printhead out of the way when loading the media or cleaning the printhead.
(9)Media Width adjustment knob Allows you to adjust for different media widths using the window. See 14
(10)Media arm
Holds down the media. The adjustable, movable media sensor inside (CLP 6001, 6401, 7201e) detects the media position.
(11)Media arm open lever
Releases the media arm (not on 1001)
(12)High resolution front sensors
Fixed media sensor (6401,7201e, 7202e)
(13)Offset check window
Allows you to see the printhead pressure adjustment (see 9 above)
(14)Media width adjustment window Allows you to see the media with adjustment (see 9 above)
