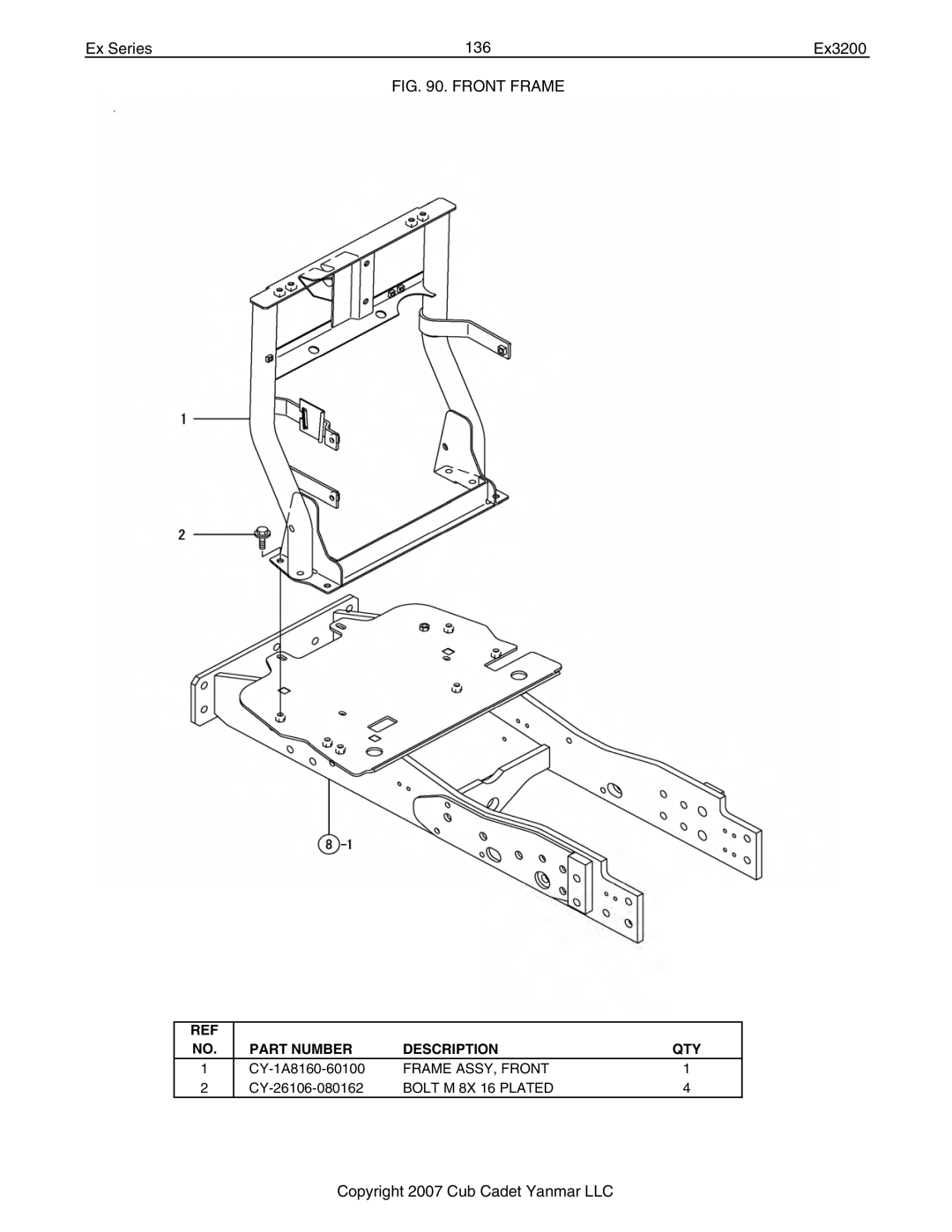

Cub Cadet Ex32002 manual Ex Series 139 Ex3200

Ex Series 139 Ex3200

FIG. 92. FRONT GRILLE

REF
NO.	PART NUMBER	DESCRIPTION	QTY
1	CY-194990-22140	NUT W/WASHER 8	1
2	CY-194990-22140	NUT W/WASHER 8	2
3	CY-1A7260-60680	URETHANE, GRILLE	1
4	CY-1A7260-60800	CATCH, LOCK	1
5	CY-1A7260-60810	LEVER, GRILLE LOCK	1
6	CY-1A7260-60820	PLATE, BASE LOCK	1
7	CY-1A7260-60870	SEAL, GRILLE SIDE	2
8	CY-1A7890613001	GRILLE, FRONT	1
9	CY-1A7260613101	NET ASSY, GRILLE	1
10	CY-1A7260-61550	STAY ASSY, LOCK	1
11	CY-1A7260-61650	FRAME ASSY, L GRILLE	1
12	CY-194145-61651	NUT, M5	4
13	CY-1A7260-61660	FRAME ASSY, R GRILLE	1
14	CY-194940-61790	SCREW 5X16	2
15	CY-198071-61890	NUT 6, SPEED	2
16	CY-1A7260-61920	STAY, FRONT GRILLE	1
17	CY-198230-61960	SPRING	1
18	CY-198220-62150	WASHER	2
19	CY-198093-84810	SEAL, FENDER	2
20	CY-22137-080000	WASHER 8, POLISHED	1
21	CY-22137-120000	WASHER 12, POLISHED	1
22	CY-22157-060000	WASHER 6	2
23	CY-22157-060000	WASHER 6	2
24	CY-22157-060000	WASHER 6	4
25	CY-22859-500202	SCREW, 5.0 X 20	2
26	CY-26106-060122	BOLT M 6X 12 PLATED	2
27	CY-26106-060122	BOLT M 6X 12 PLATED	4
28	CY-26106-060162	BOLT M 6X 16 PLATED	12
29	CY-26106-080122	BOLT M 8X 12 PLATED	2
30	CY-26346-060002	U-NUT M 6 PLATED	2
31	CY-22137-060000	WASHER 6, POLISHED - S/N	2
		F000156 & ABOVE

Copyright 2007 Cub Cadet Yanmar LLC
