Ex Series | 20 | Ex3200 |

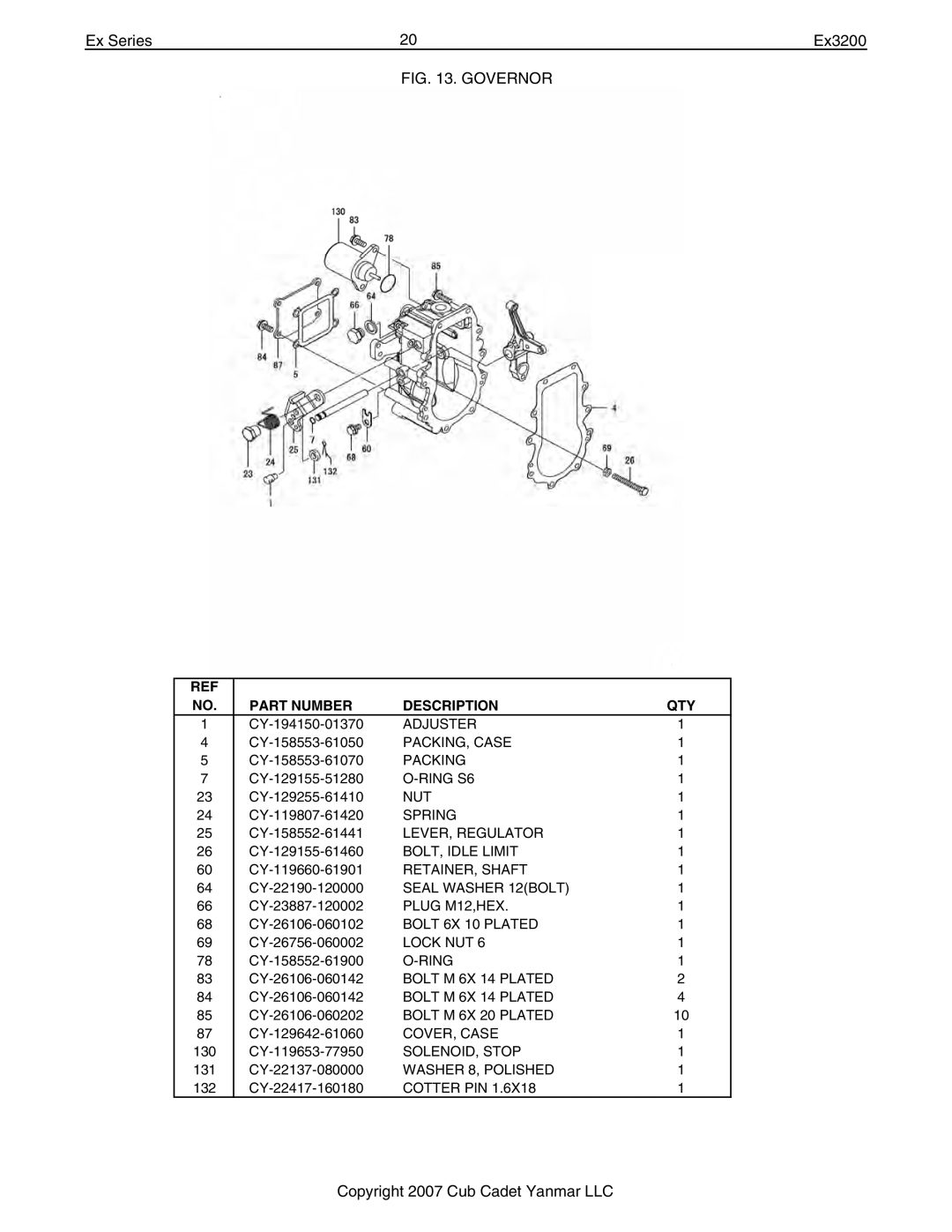

| FIG. 13. GOVERNOR |
|
REF |
|
|
|
NO. | PART NUMBER | DESCRIPTION | QTY |
1 | ADJUSTER | 1 | |
4 | PACKING, CASE | 1 | |
5 | PACKING | 1 | |
7 | 1 | ||
23 | NUT | 1 | |
24 | SPRING | 1 | |
25 | LEVER, REGULATOR | 1 | |
26 | BOLT, IDLE LIMIT | 1 | |
60 | RETAINER, SHAFT | 1 | |
64 | SEAL WASHER 12(BOLT) | 1 | |
66 | PLUG M12,HEX. | 1 | |
68 | BOLT 6X 10 PLATED | 1 | |
69 | LOCK NUT 6 | 1 | |
78 | 1 | ||
83 | BOLT M 6X 14 PLATED | 2 | |
84 | BOLT M 6X 14 PLATED | 4 | |
85 | BOLT M 6X 20 PLATED | 10 | |
87 | COVER, CASE | 1 | |
130 | SOLENOID, STOP | 1 | |
131 | WASHER 8, POLISHED | 1 | |
132 | COTTER PIN 1.6X18 | 1 |
