Ex Series

157

Ex3200

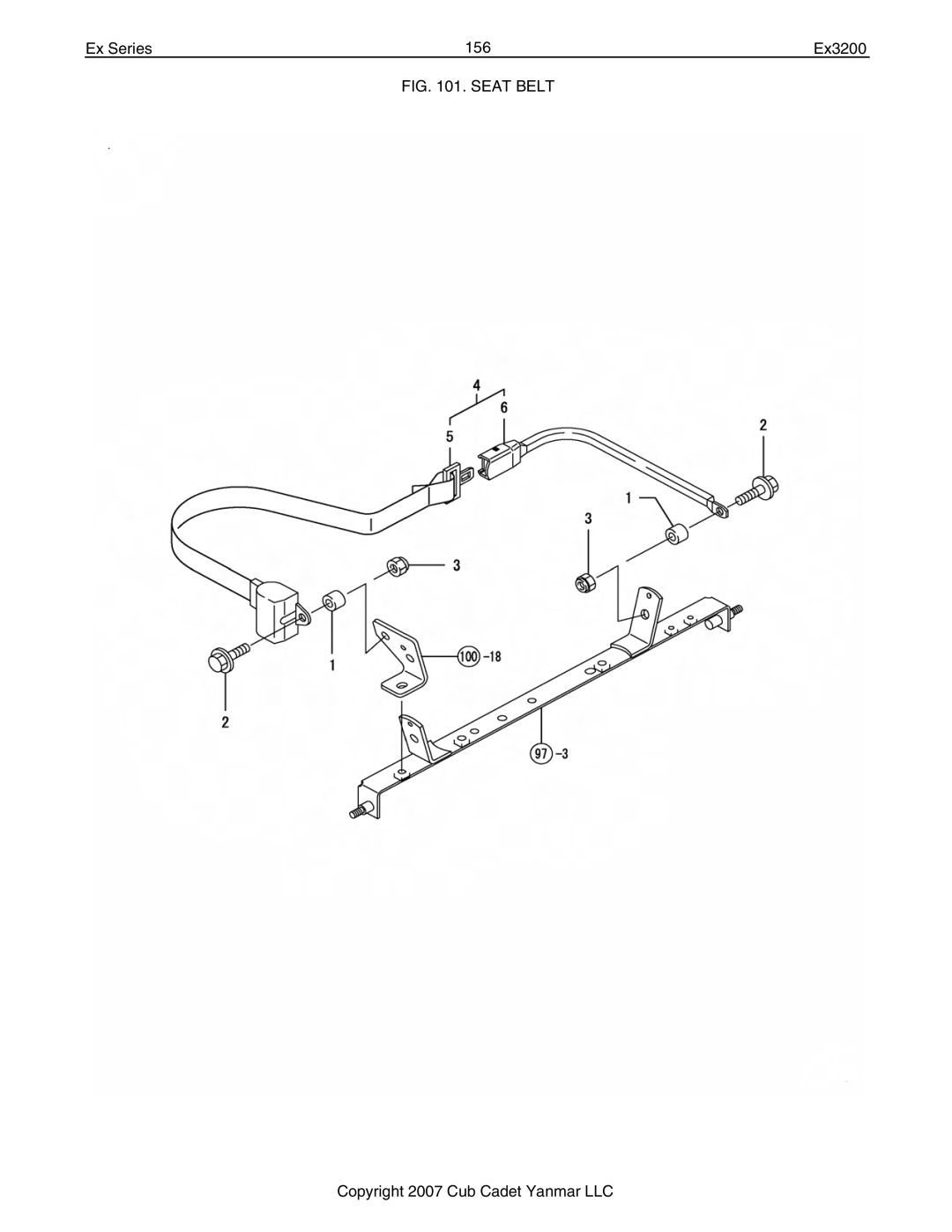

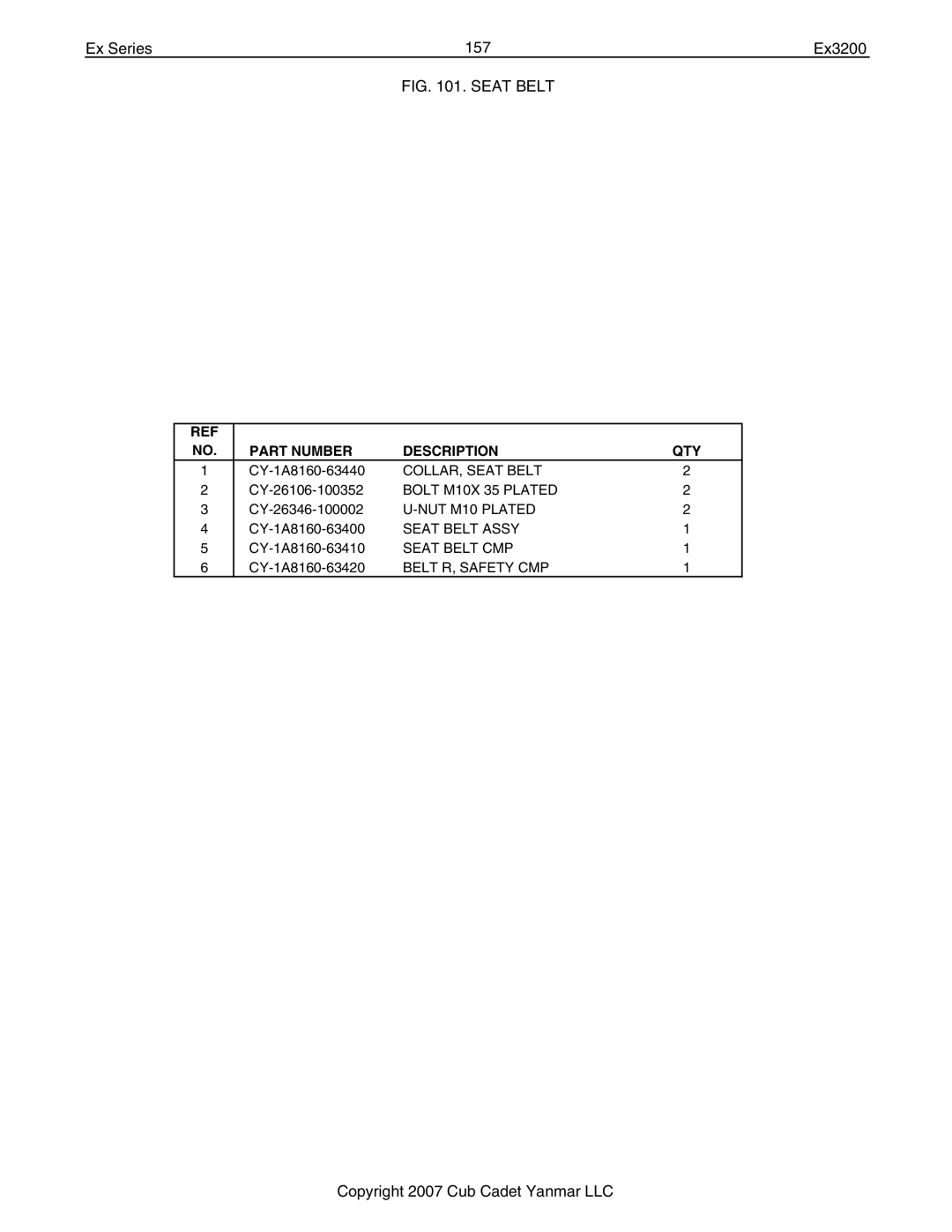

FIG. 101. SEAT BELT

REF
NO.	PART NUMBER	DESCRIPTION	QTY
1	CY-1A8160-63440	COLLAR, SEAT BELT	2
2	CY-26106-100352	BOLT M10X 35 PLATED	2
3	CY-26346-100002	U-NUT M10 PLATED	2
4	CY-1A8160-63400	SEAT BELT ASSY	1
5	CY-1A8160-63410	SEAT BELT CMP	1
6	CY-1A8160-63420	BELT R, SAFETY CMP	1
