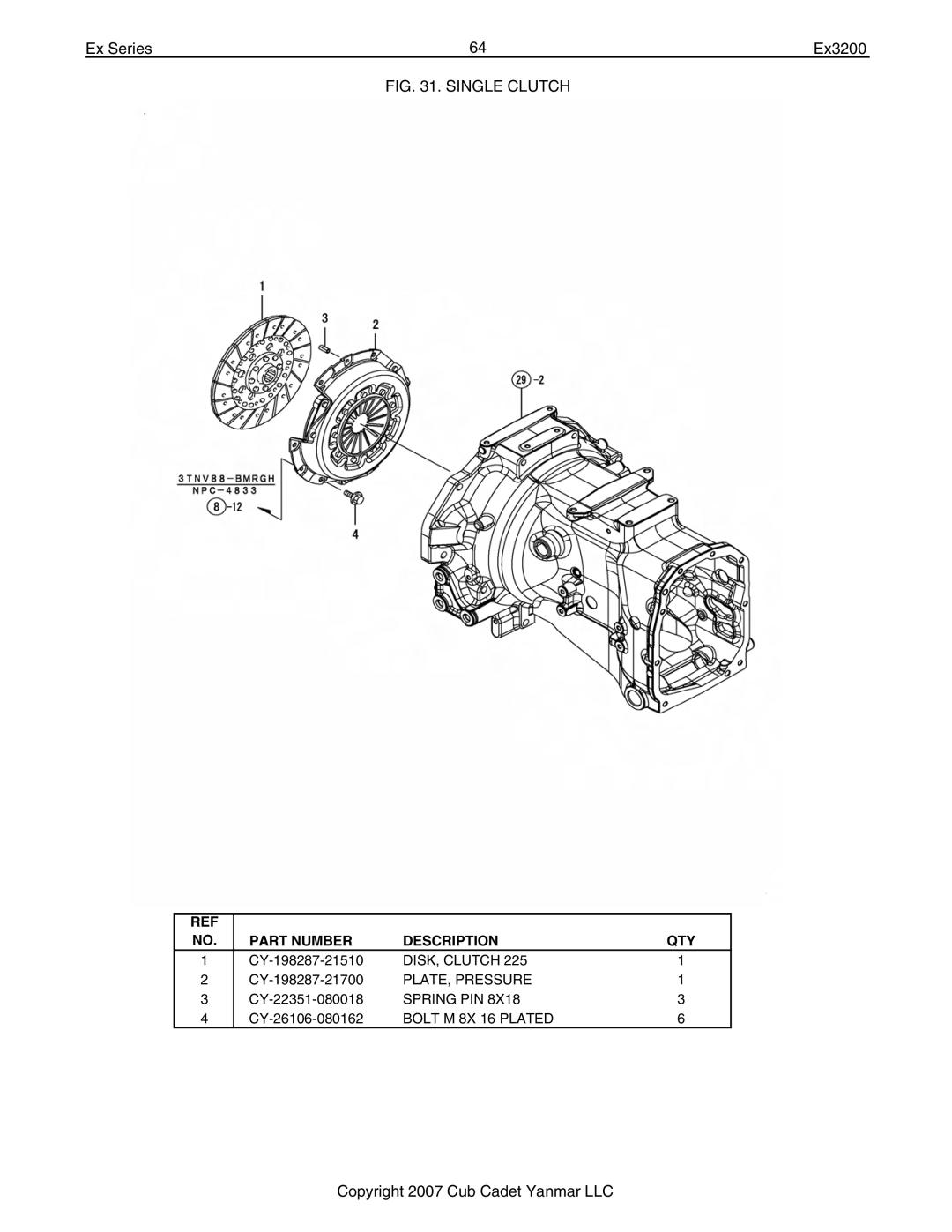

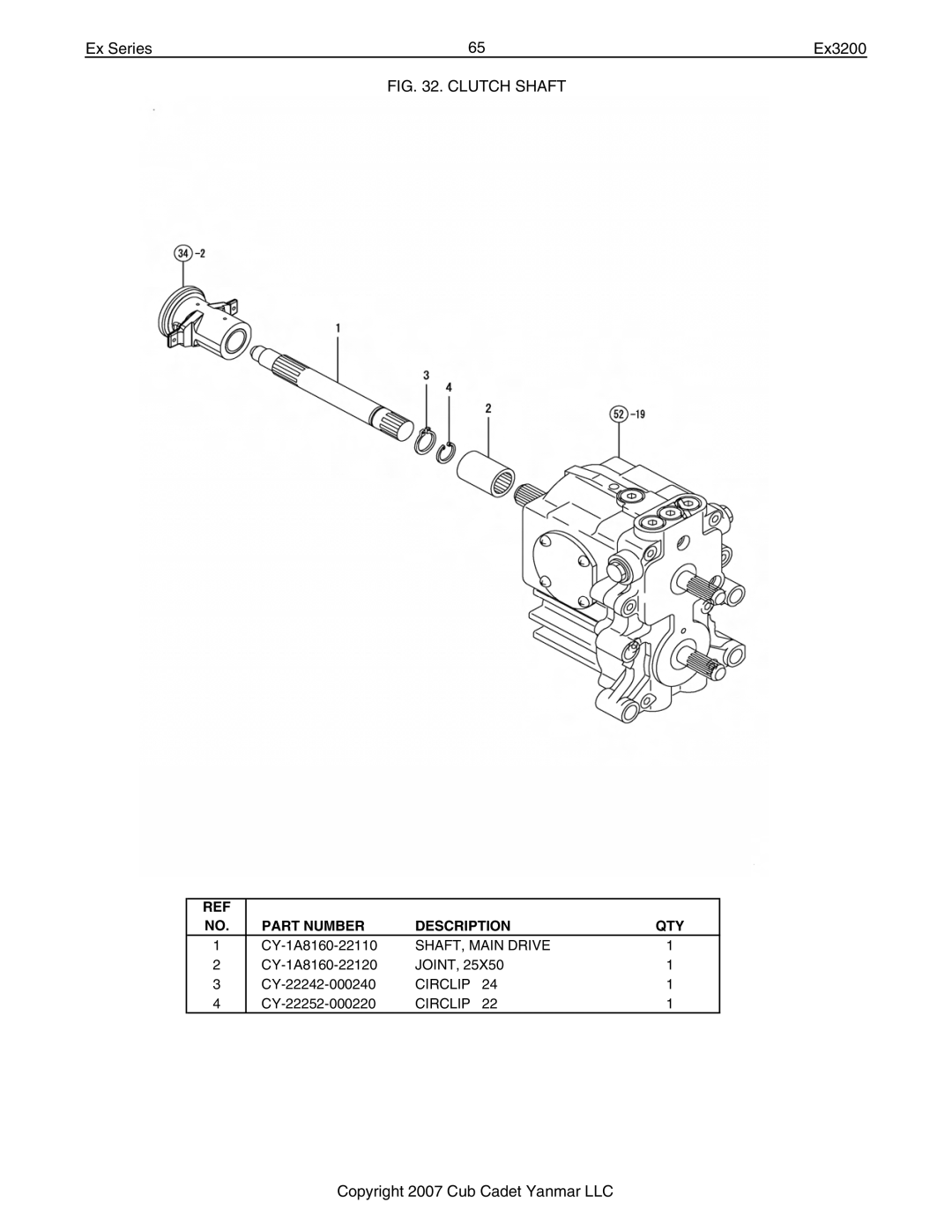

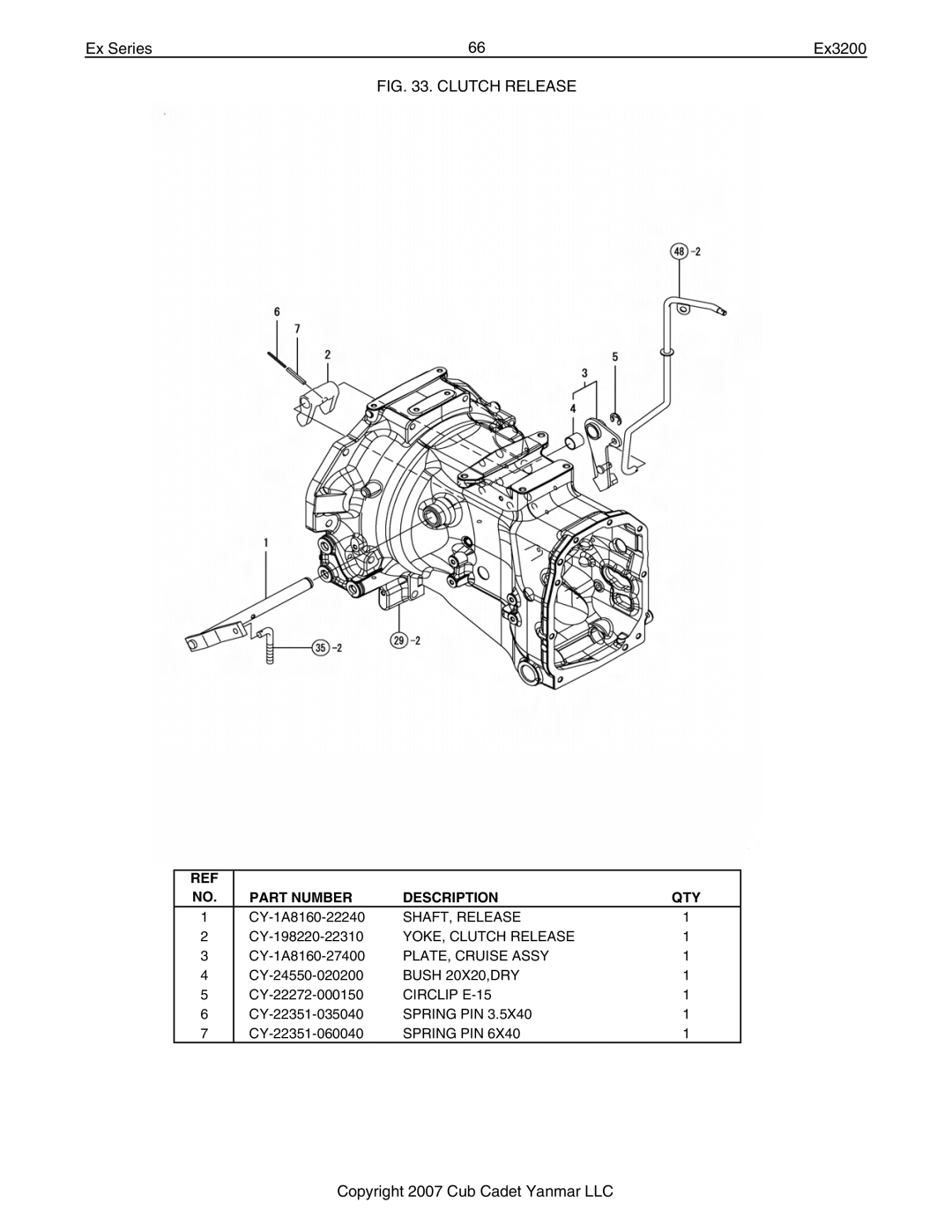

Cub Cadet Ex32002 Ex Series, Clutch Housing, Copyright 2007 Cub Cadet Yanmar LLC, Part Number

Models: Ex32002

1 182

Page 62

Ex Series	62	Ex3200

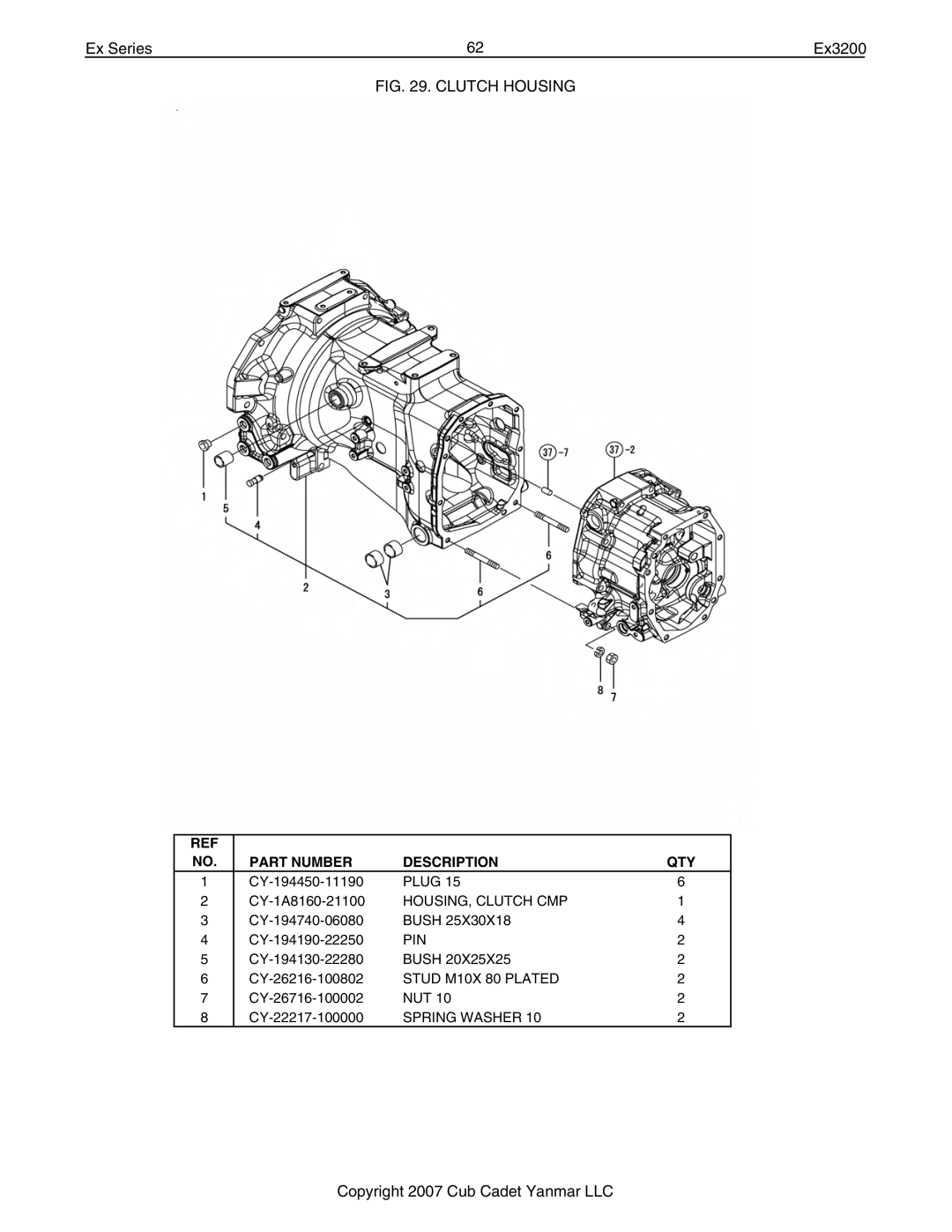

FIG. 29. CLUTCH HOUSING

REF
NO.	PART NUMBER	DESCRIPTION	QTY
1	CY-194450-11190	PLUG 15	6
2	CY-1A8160-21100	HOUSING, CLUTCH CMP	1
3	CY-194740-06080	BUSH 25X30X18	4
4	CY-194190-22250	PIN	2
5	CY-194130-22280	BUSH 20X25X25	2
6	CY-26216-100802	STUD M10X 80 PLATED	2
7	CY-26716-100002	NUT 10	2
8	CY-22217-100000	SPRING WASHER 10	2

Page 62

Image 62

Cub Cadet Ex32002 manual Ex Series, Clutch Housing, Copyright 2007 Cub Cadet Yanmar LLC, Part Number, Description
