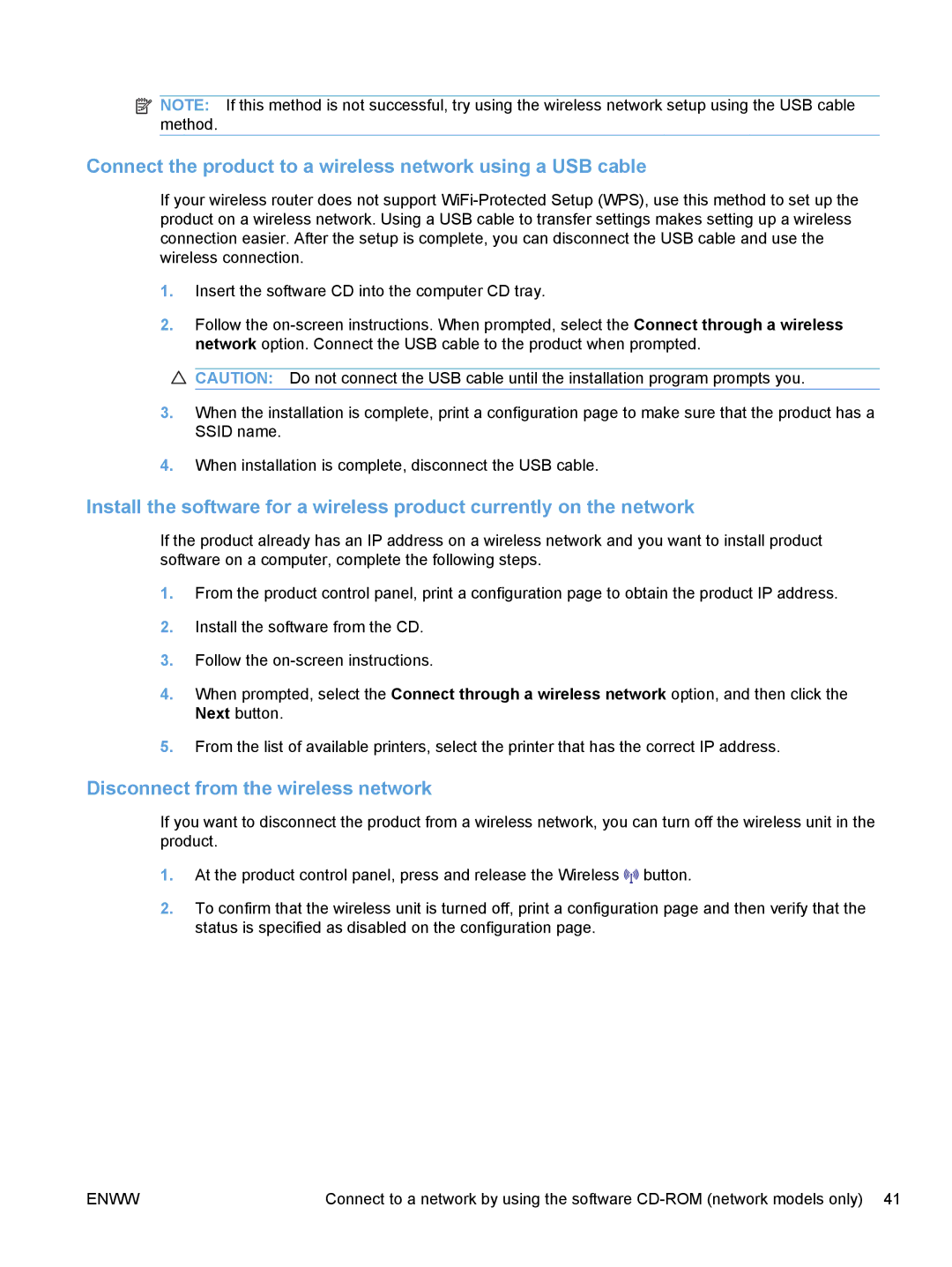

NOTE: If this method is not successful, try using the wireless network setup using the USB cable method.

Connect the product to a wireless network using a USB cable

If your wireless router does not support WiFi-Protected Setup (WPS), use this method to set up the product on a wireless network. Using a USB cable to transfer settings makes setting up a wireless connection easier. After the setup is complete, you can disconnect the USB cable and use the wireless connection.

1.Insert the software CD into the computer CD tray.

2.Follow the on-screen instructions. When prompted, select the Connect through a wireless network option. Connect the USB cable to the product when prompted.

CAUTION: Do not connect the USB cable until the installation program prompts you.

3.When the installation is complete, print a configuration page to make sure that the product has a SSID name.

4.When installation is complete, disconnect the USB cable.

Install the software for a wireless product currently on the network

If the product already has an IP address on a wireless network and you want to install product software on a computer, complete the following steps.

1.From the product control panel, print a configuration page to obtain the product IP address.

2.Install the software from the CD.

3.Follow the on-screen instructions.

4.When prompted, select the Connect through a wireless network option, and then click the Next button.

5.From the list of available printers, select the printer that has the correct IP address.

Disconnect from the wireless network

If you want to disconnect the product from a wireless network, you can turn off the wireless unit in the product.

1.At the product control panel, press and release the Wireless button.

2.To confirm that the wireless unit is turned off, print a configuration page and then verify that the status is specified as disabled on the configuration page.

ENWW

Connect to a network by using the software CD-ROM (network models only) 41

Page 54 Page 56
Page 55
Image 55
HP 100 color MFP M175nw Connect the product to a wireless network using a USB cable, Disconnect from the wireless network
Page 54 Page 56

100 color MFP M175nw, 100 color MFP M175a specifications

The HP 100 Color MFP M175a, HP 200 Color MFP M276nw, HP TopShot M275 MFP, and HP CM1415fn Color printers are designed to meet the needs of small to medium-sized businesses, providing reliable and efficient printing solutions.

The HP 100 Color MFP M175a features print, copy, scan, and fax functions in a compact design. It utilizes HP ColorSphere toner, known for producing vibrant colors and sharp text. With a print speed of up to 17 pages per minute for black and white and up to 4 pages per minute for color, it’s efficient for everyday tasks. The M175a also includes an 8.5-inch LCD display for easy navigation and a flatbed scanner for versatile document handling.

Moving on to the HP 200 Color MFP M276nw, this model enhances productivity with its wireless capabilities and mobile printing options. It supports HP ePrint and Apple AirPrint, allowing users to print directly from smartphones and tablets. The M276nw offers a faster print speed of up to 21 pages per minute for black and white and 20 pages per minute for color. Its automatic document feeder (ADF) can handle up to 50 sheets, streamlining multi-page copy and scan jobs.

The HP TopShot M275 MFP takes a unique approach with its innovative “TopShot” technology. It features a 3D capture mode that allows users to scan objects in three dimensions and capture images from multiple angles, making it ideal for creative projects and presentations. This model also includes a high-resolution scanner and a print speed similar to the M175a, ensuring quality and efficiency.

Lastly, the HP CM1415fn Color printer is versatile, offering print, copy, scan, and fax functions. It features a durable design, capable of handling various media sizes and types. With fast print speeds of up to 14 pages per minute for black and white and 4 pages per minute for color, it is well-suited for busy office environments. Its intuitive control panel simplifies operation, while HP Smart Install technology ensures hassle-free setup.

All these models are equipped with robust security features, energy-saving options, and reliable performance, making them ideal choices for businesses seeking cost-effective and high-quality printing solutions.
