HP Presario 6271AP To Remove an Expansion Card

Upgrading the Computer

To Remove an Expansion Card

1.Complete the procedure described in “Preparing the Computer” on page 8–2, but do not remove the front bezel.

❏To remove an expansion card from the 6000 model, continue to step 2.

❏To remove an expansion card from the 8000 model, skip to step 3.

2.On the 6000 model, on the rear of the computer, an expansion bracket cover secures the expansion slots. To remove this cover, remove the screw from the bracket cover 1, and then remove the expansion bracket cover 2.

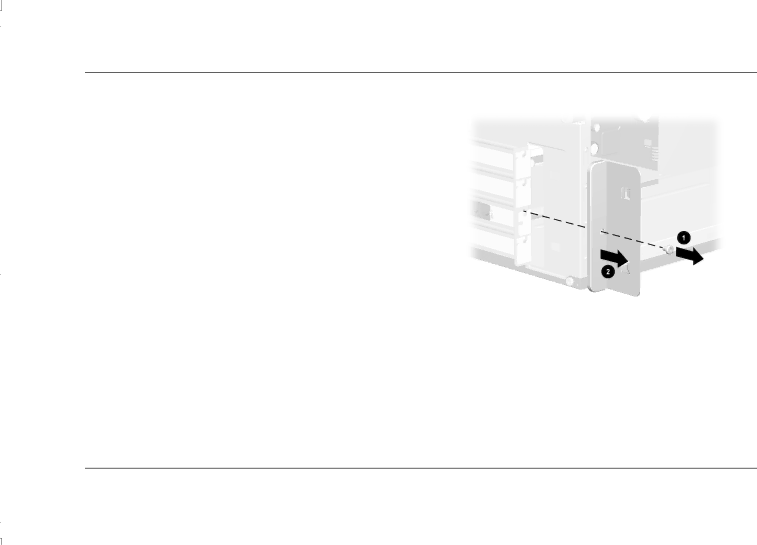

Removing the Screw and Expansion Bracket Cover on the 6000

Getting Started 8–23
