HP Firewall Network requirements, Configuration procedure, Configuration example, Adding devices to the firewall manager

Configuration example 1

Network requirements

The HP A-IMC Firewall Manager works with HP firewall devices. The Firewall Manager collects attack events and logs sent by the firewall devices, processes and analyzes the collected data, and presents the information to the Firewall Manager operators.

You need to ensure that there is a reachable route between the Firewall Manager server and each managed HP firewall device.

Configuration procedure

Adding devices to the firewall manager

Adding devices to HP Firewall Manager is the prerequisites to other operations, such as querying device information. This section describes how to add devices to the HP Firewall Manager:

1.Select the System Management component and then select Device List under Device Management from the navigation tree to enter the device management page. Click Add to enter the page for adding a device, as shown in Figure 106. Generally, you can just input the IP address and label (a string for identifying a device) of a device and leave other fields with the default settings.

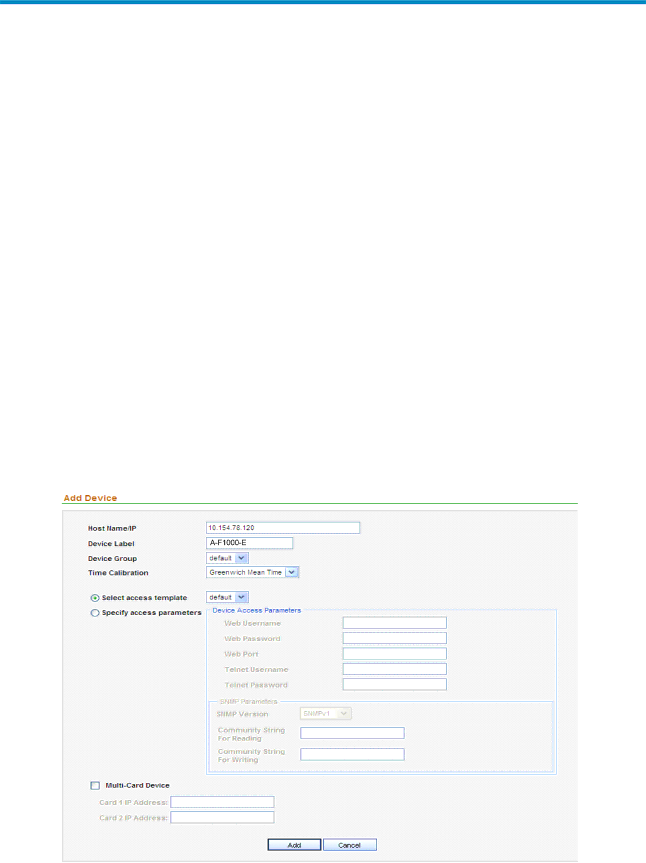

Figure 106 Add a device to the system management component

99
