10 Press this camcorder’s Recording Start/Stop Button to start recording.
The indication rotates.
11 Press this camcorder’s Recording Start/Stop Button again to engage the Record-Pause mode. The indication stops rotating.
12 Repeat steps 10 11 for additional editing. Stop the video unit and camcorder.
NOTES:
DV. IN
Press this camcorder’s Recording Start/Stop Button to engage the Record-Pause mode.
The “ ” indication appears on the screen.
Set “REC MODE” to “SP” or “LP”. ( pg. 38, 51)
5
6 Turn on the video unit’s power.
7 Insert the source cassette in the video unit.
8 Insert the recording cassette in this camcorder.
9
4 Set this camcorder’s Power Switch to “P” while pressing down the Lock Button located on the switch.
Set this camcorder’s VIDEO/MEMORY Switch to “VIDEO”.
3
DUBBING (cont.)
1 Make sure all units are turned off.
2 Connect this camcorder to a video unit equipped with a DV output connector using a DV cable as shown in the illustration.

64 EN

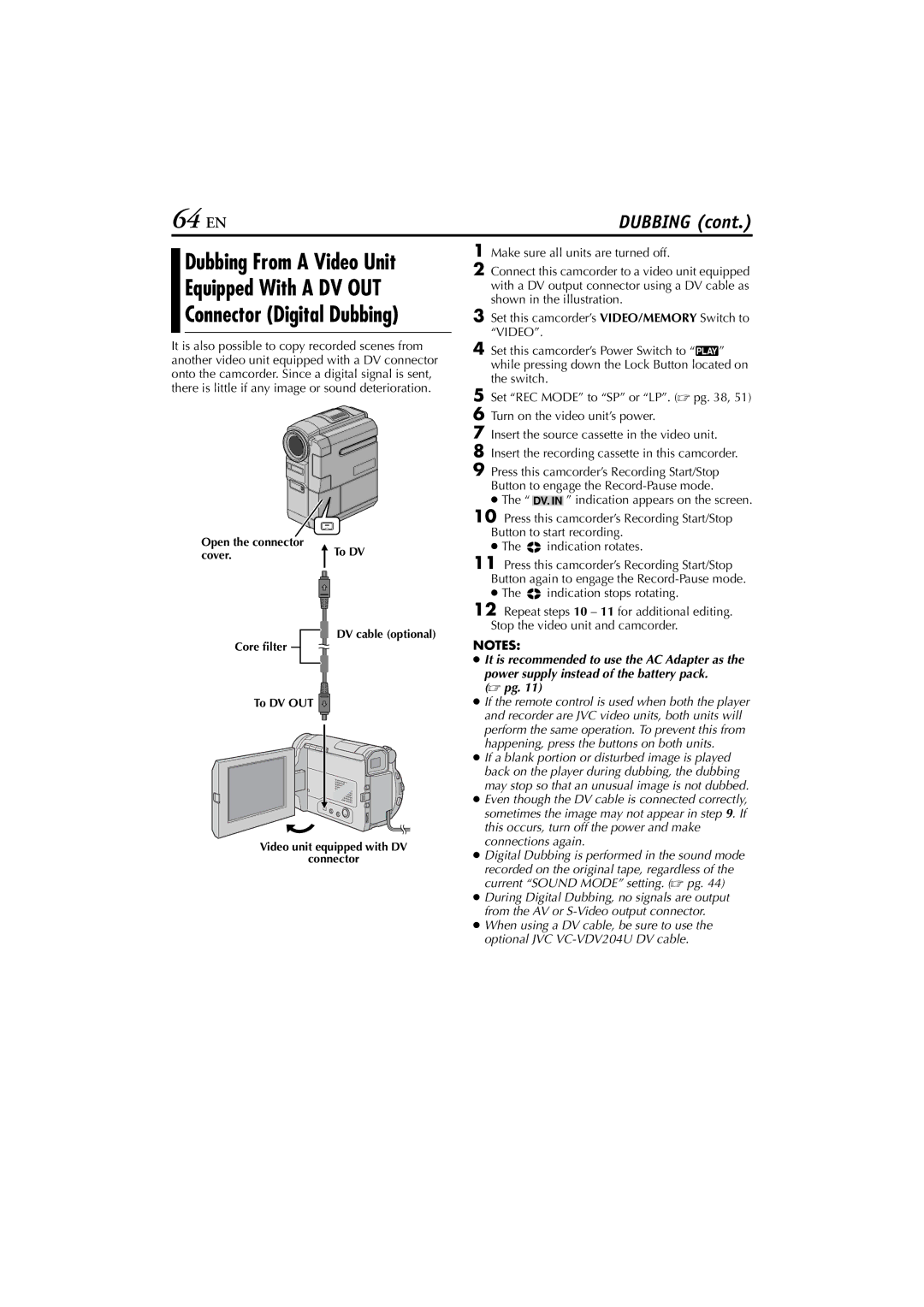

Dubbing From A Video Unit

Equipped With A DV OUT

Connector (Digital Dubbing)

It is also possible to copy recorded scenes from another video unit equipped with a DV connector onto the camcorder. Since a digital signal is sent, there is little if any image or sound deterioration.

Open the connector

To DV

cover.







DV cable (optional)

Core filter

To DV OUT

Video unit equipped with DV

connector

It is recommended to use the AC Adapter as the power supply instead of the battery pack.

( pg. 11)

If the remote control is used when both the player and recorder are JVC video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units.

If a blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed.

Even though the DV cable is connected correctly, sometimes the image may not appear in step 9. If this occurs, turn off the power and make connections again.

Digital Dubbing is performed in the sound mode recorded on the original tape, regardless of the current “SOUND MODE” setting. ( pg. 44)

During Digital Dubbing, no signals are output from the AV or S-Video output connector.

When using a DV cable, be sure to use the optional JVC VC-VDV204U DV cable.
