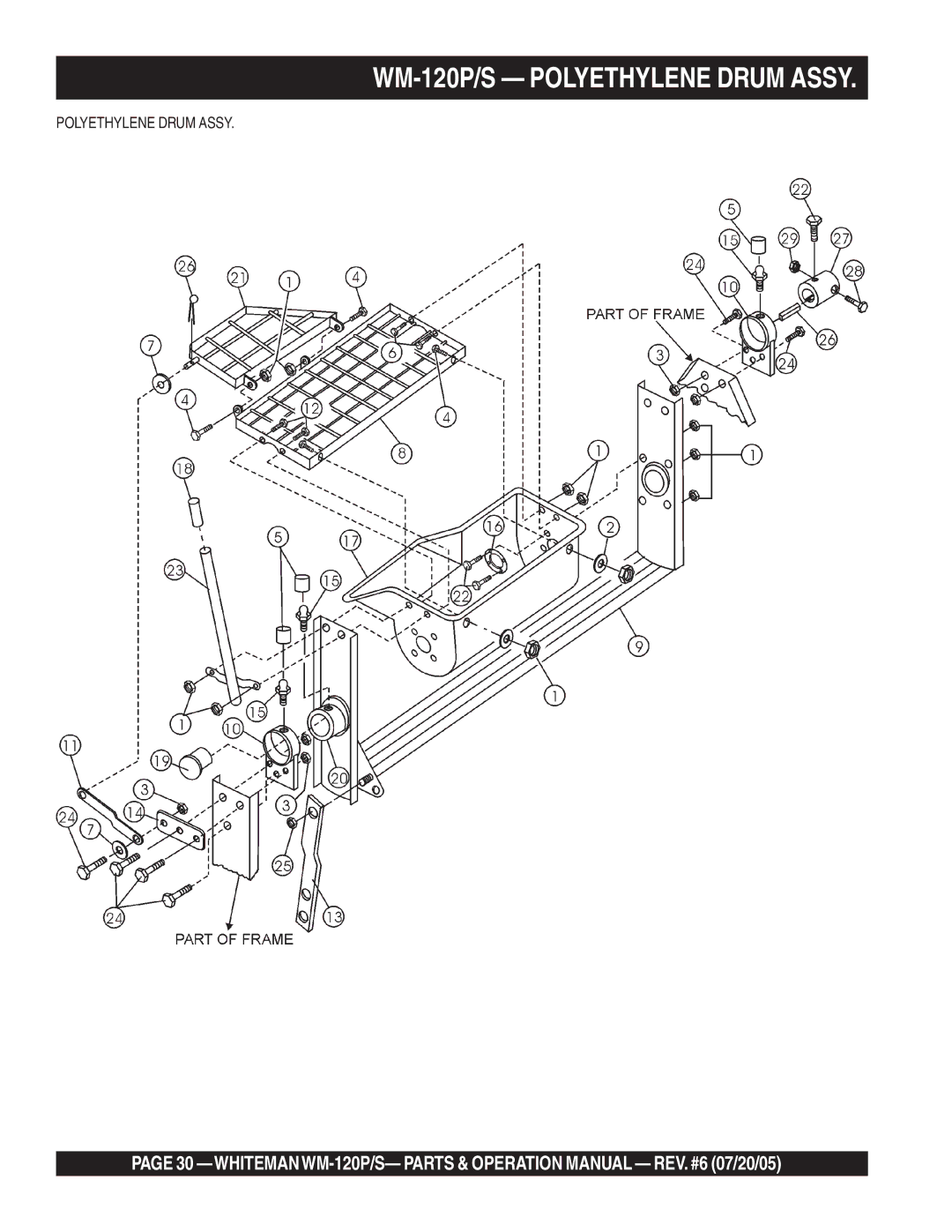

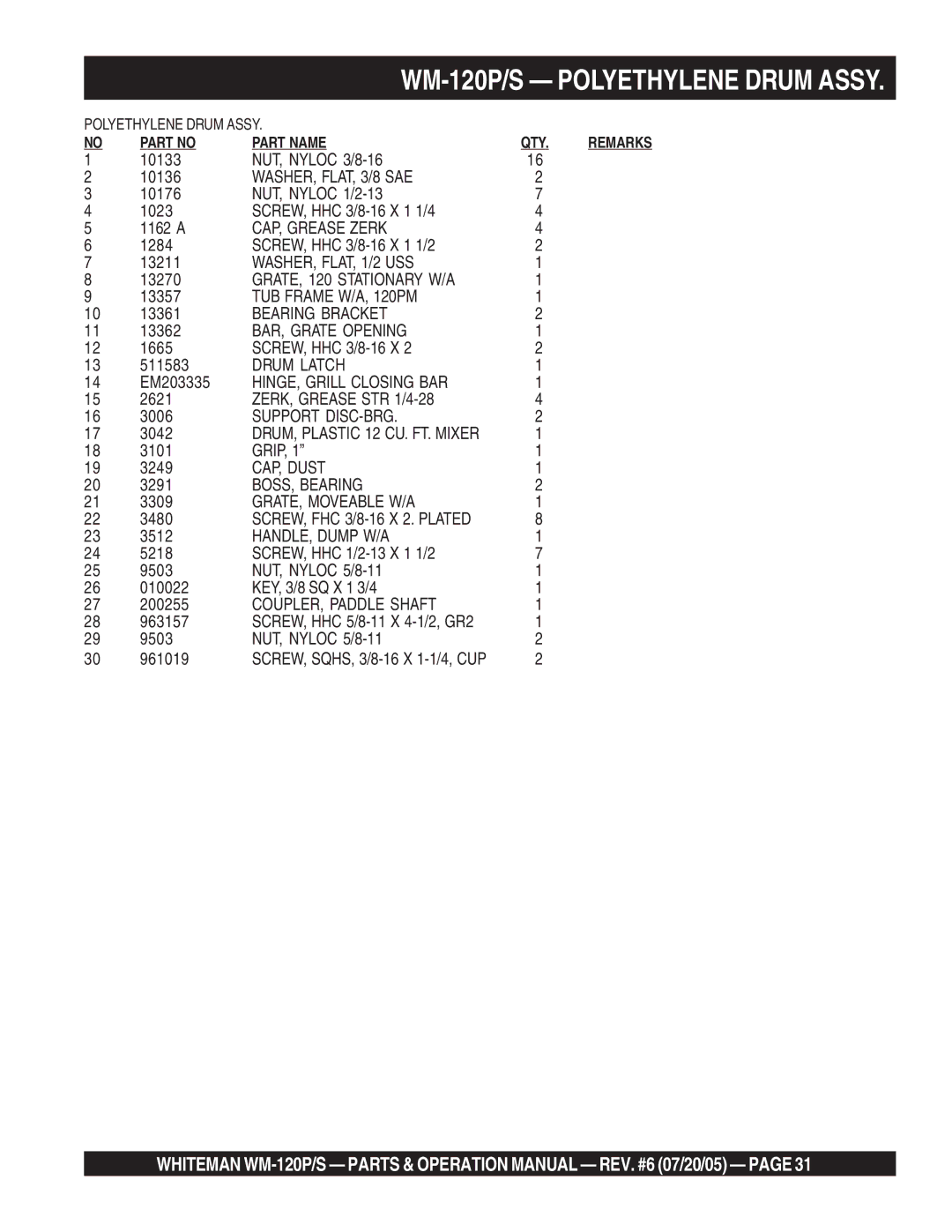

WM-120P/S — POLYETHYLENE DRUM ASSY.

POLYETHYLENE DRUM ASSY.
NO	PART NO	PART NAME	QTY.	REMARKS
1	10133	NUT, NYLOC 3/8-16	16
2	10136	WASHER, FLAT, 3/8 SAE	2
3	10176	NUT, NYLOC 1/2-13	7
4	1023	SCREW, HHC 3/8-16 X 1 1/4	4
5	1162 A	CAP, GREASE ZERK	4
6	1284	SCREW, HHC 3/8-16 X 1 1/2	2
7	13211	WASHER, FLAT, 1/2 USS	1
8	13270	GRATE, 120 STATIONARY W/A	1
9	13357	TUB FRAME W/A, 120PM	1
10	13361	BEARING BRACKET	2
11	13362	BAR, GRATE OPENING	1
12	1665	SCREW, HHC 3/8-16 X 2	2
13	511583	DRUM LATCH	1
14	EM203335	HINGE, GRILL CLOSING BAR	1
15	2621	ZERK, GREASE STR 1/4-28	4
16	3006	SUPPORT DISC-BRG.	2
17	3042	DRUM, PLASTIC 12 CU. FT. MIXER	1
18	3101	GRIP, 1”	1
19	3249	CAP, DUST	1
20	3291	BOSS, BEARING	2
21	3309	GRATE, MOVEABLE W/A	1
22	3480	SCREW, FHC 3/8-16 X 2. PLATED	8
23	3512	HANDLE, DUMP W/A	1
24	5218	SCREW, HHC 1/2-13 X 1 1/2	7
25	9503	NUT, NYLOC 5/8-11	1
26	010022	KEY, 3/8 SQ X 1 3/4	1
27	200255	COUPLER, PADDLE SHAFT	1
28	963157	SCREW, HHC 5/8-11 X 4-1/2, GR2	1
29	9503	NUT, NYLOC 5/8-11	2
30	961019	SCREW, SQHS, 3/8-16 X 1-1/4, CUP	2

WHITEMAN WM-120P/S — PARTS & OPERATION MANUAL — REV. #6 (07/20/05) — PAGE 31
