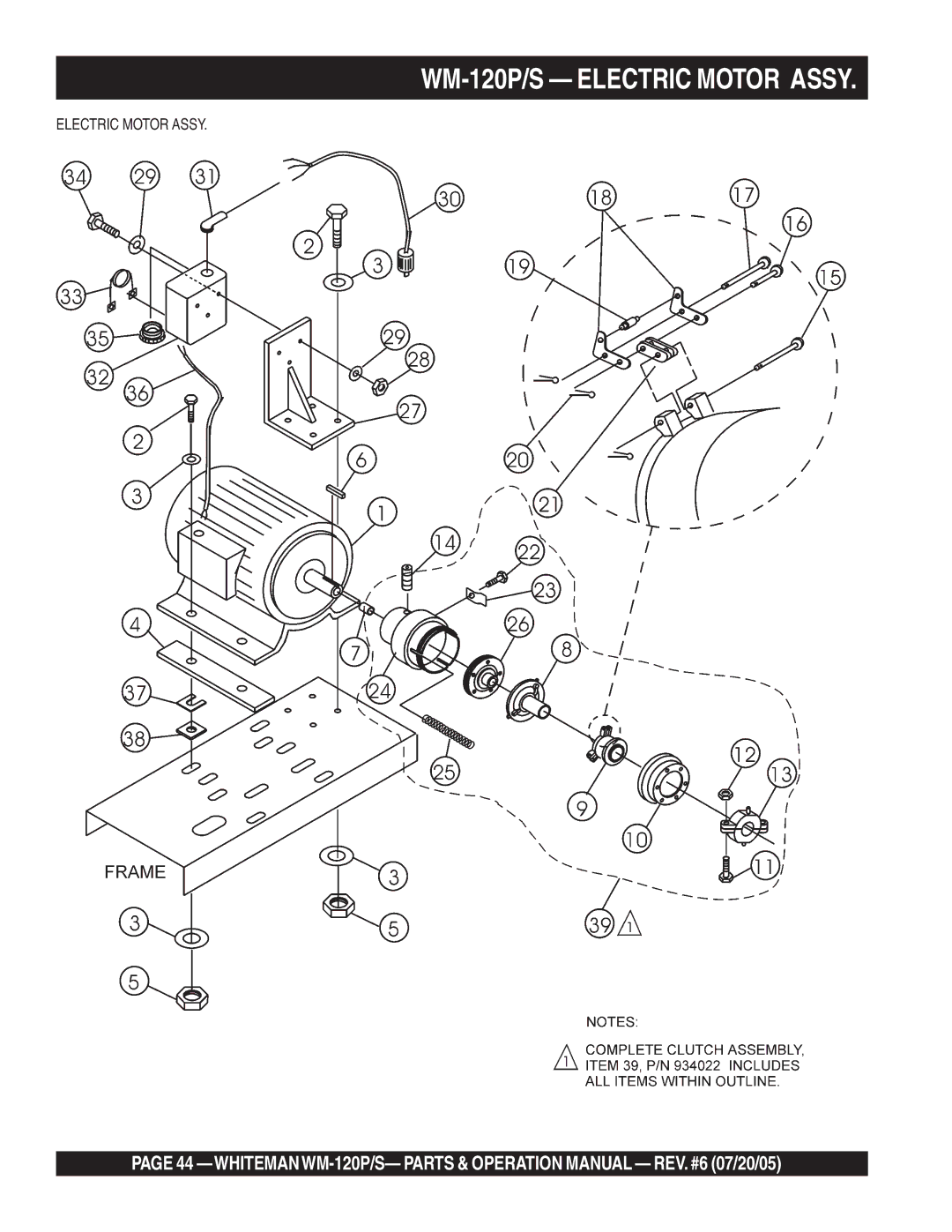

WM-120P/S — ELECTRIC MOTOR ASSY.

ELECTRIC MOTOR ASSY.







NO

PART NO

PART NAME

QTY.

REMARKS

1

EM939228

5 HP 1 PHASE ELECT MOTOR

1



1

EM239229

5 HP 3 PHASE ELECT MOTOR

1

2

1023

HHCS 3/8-16 X 1.1/4”

8



3

10136

FLAT WASHER 3/8”

16



4

EM204549

MOTOR MOUNT

2



5

10133

LOCK NUT 3/8-16

8



6

EM010009

SQ KEY

1



7

EM801570

BUSHING

1



8

EM934042

PRESSURE PLATE ASM

1



9#

EM934043

RELEASE SLEEVE

1



10#

EM934045

ADJUSTING RING

1



11#

EM963289

BOLT

2



12#

EM969009

LOCK NUT

2



13#

EM934044

RELEASE BEARING ASM

1



14#

EM961045

SHSS 5/16-18 X 1/2” NYLOC

1



15#

EM925013

LEVER PIN

3



16#

EM925018

SHORT LINK PIN

3



17#

EM925016

LONG LINK PIN

3



18#

EM959012

LEVER

6



19#

EM934054

ROLLER

3



20#

5117

COTTER PIN

9



21#

EM934053

CONNECTING LINK

6



22

9503

SLOTTED HHCS 1/4-20 X 1/2”

1



23#

EM934040

ADJUSTING LOCK

1



24#

EM934039

CLUTCH HOUSING

1



25#

EM918009

SPRING

3



26#

EM934041

SPLINED CENTER W/FACING

1



27

EM204526

MOUNT BRKT

1



28

10019

LOCK NUT 10-32

3



29

2203

FLAT WASHER #10

6



30

EM201794

PIG TAIL

1



31

0174

90 DEG ELBOW

1



32

EM98187

MOTOR STARTER 1 PHASE

1



32

EM98191

MOTOR STARTER 3 PHASE

1



33

EM940198

HEATER 1 PHASE

1



33

EM940209

HEATER 3 PHASE

1



34

8133

RHMS 10-32 X 3/4”

3



35

EM940184

REDUCER BUSHING

1



36

EM012295

CONDUIT

1



37EM100235 ENGINE SHIM .030

EM100236 ENGINE SHIM .018

EM100237 ENGINE SHIM .010

38EM203007 ENGINE PAD .187

EM203016 ENGINE PAD .135

EM203017 ENGINE PAD .060

39EM934022 CLUTCH ASM ............................................................. 1 .......... INCLUDES ITEMS/W#
