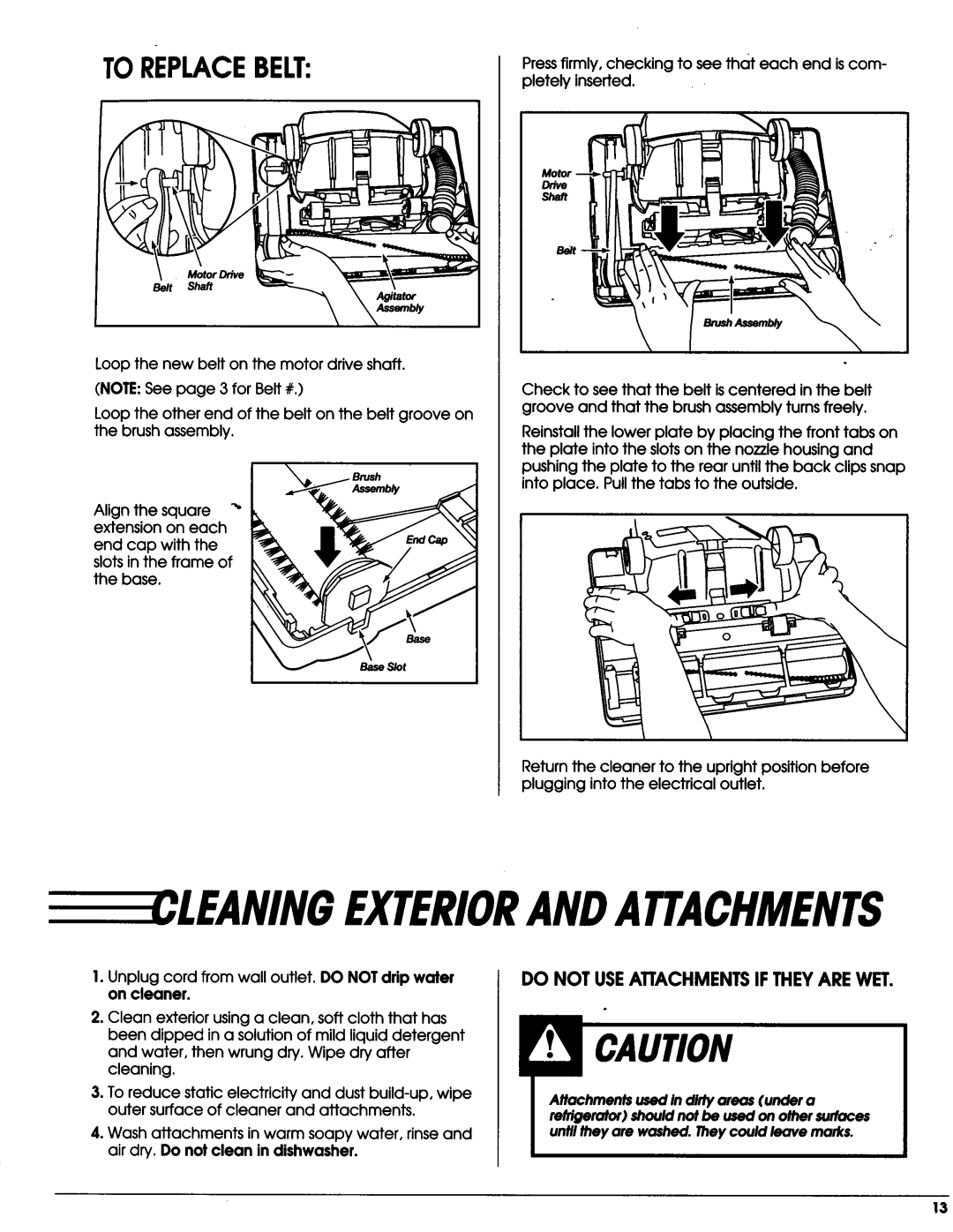

TOREPLACEBELT:	Pressfirmly, checking to see that each end is com-
	pletely inserted.

Motor

Drive

Shaft

Be/t Shaft

Loop the new belt on the motor drive shaft.

(NOTE: See page 3 for Belt #,)

Loop the other end of the belt on the belt groove on the brush assembly.

Align the square extension on each

end cap with the slots in the frame of the base.

Base

S/ot

Check to see that the belt is centered in the belt groove and that the brush assembly turns freely.

Reinstall the lower plate by placing the front tabs on the plate into the slots on the nozzle housing and pushing the plate to the rear until the back clips snap into place. Pull the tabs to the outside.

Return the cleaner to the upright position before plugging into the electrical outlet.

LEANING EXTERIORANDATTACHMENTS

I. Unplug cord from wall outlet. DO NOT drip water

on cleaner.

2.Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.

3.To reduce static electricity and dust build-up, wipe outer surface of cleaner and attachments.

4.Wash attachments in warm soapy water, rinse and air dry. Do not clean in dishwasher.

DO NOT USEATTACHMENTSIF THEYAREWET.

Attachments used In dlrtyareas (under a refrigerator)shouldnot be used on other surlaces untilthey are washed. Theycould leave marks.
