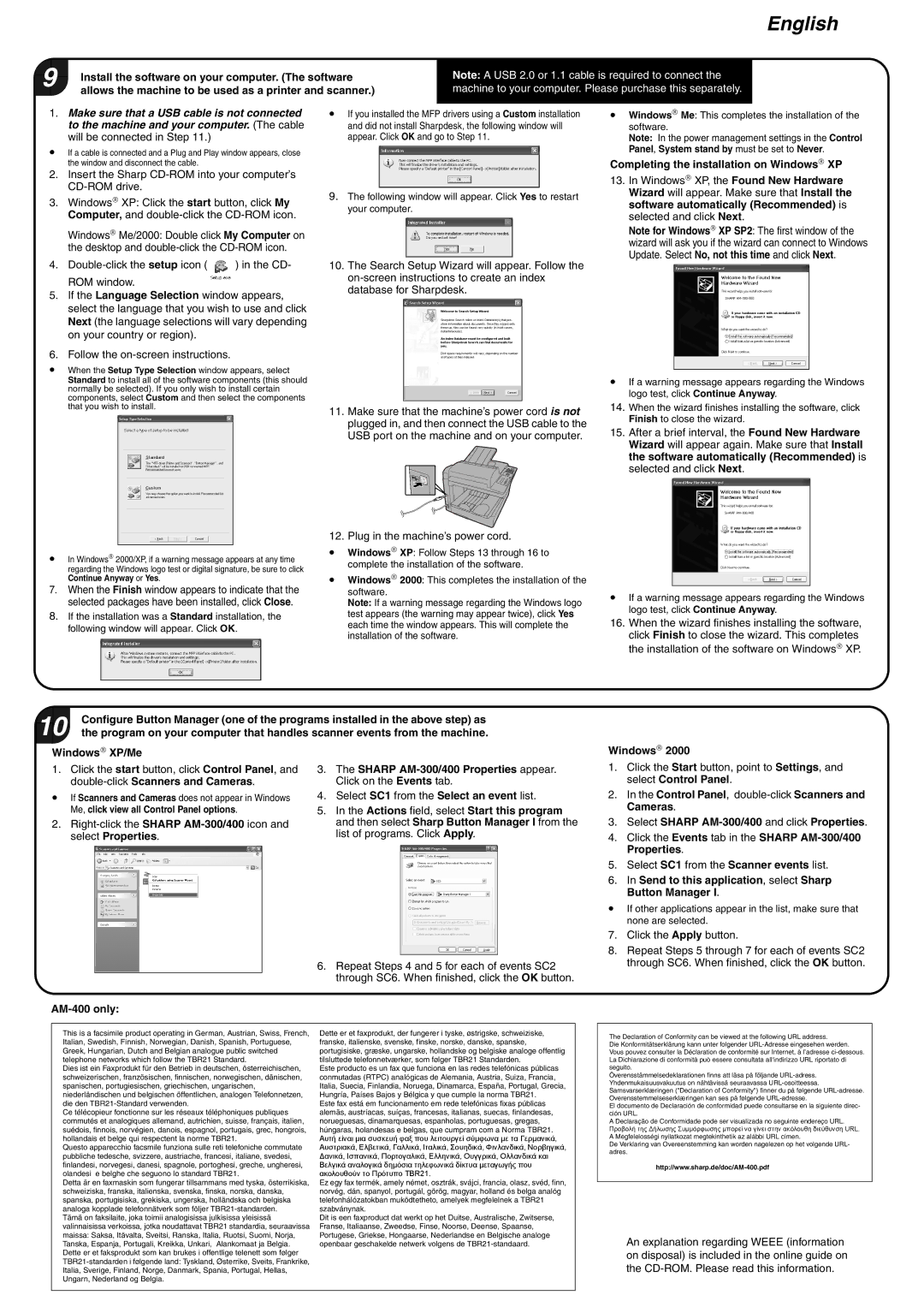

Install the software on your computer. (The software allows the machine to be used as a printer and scanner.)
Note: A USB 2.0 or 1.1 cable is required to connect the machine to your computer. Please purchase this separately.
1.Make sure that a USB cable is not connected to the machine and your computer. (The cable will be connected in Step 11.)
•If a cable is connected and a Plug and Play window appears, close the window and disconnect the cable.
2.Insert the Sharp
3.Windows→ XP: Click the start button, click My Computer, and
Windows→ Me/2000: Double click My Computer on the desktop and
4. | ) in the CD- |
ROM window. |
|
5.If the Language Selection window appears, select the language that you wish to use and click Next (the language selections will vary depending on your country or region).
6.Follow the
•When the Setup Type Selection window appears, select Standard to install all of the software components (this should normally be selected). If you only wish to install certain components, select Custom and then select the components that you wish to install.
•In Windows→ 2000/XP, if a warning message appears at any time regarding the Windows logo test or digital signature, be sure to click Continue Anyway or Yes.
7.When the Finish window appears to indicate that the selected packages have been installed, click Close.
8.If the installation was a Standard installation, the following window will appear. Click OK.
•If you installed the MFP drivers using a Custom installation and did not install Sharpdesk, the following window will appear. Click OK and go to Step 11.
9.The following window will appear. Click Yes to restart your computer.
10.The Search Setup Wizard will appear. Follow the
11.Make sure that the machine’s power cord is not plugged in, and then connect the USB cable to the USB port on the machine and on your computer.
12. Plug in the machine’s power cord.
•Windows→ XP: Follow Steps 13 through 16 to complete the installation of the software.
•Windows→ 2000: This completes the installation of the software.
Note: If a warning message regarding the Windows logo test appears (the warning may appear twice), click Yes each time the window appears. This will complete the installation of the software.
•Windows→ Me: This completes the installation of the software.
Note: In the power management settings in the Control Panel, System stand by must be set to Never.
Completing the installation on Windows→ XP
13.In Windows→ XP, the Found New Hardware Wizard will appear. Make sure that Install the software automatically (Recommended) is
selected and click Next.
Note for Windows→ XP SP2: The first window of the wizard will ask you if the wizard can connect to Windows Update. Select No, not this time and click Next.
•If a warning message appears regarding the Windows logo test, click Continue Anyway.
14.When the wizard finishes installing the software, click Finish to close the wizard.
15.After a brief interval, the Found New Hardware Wizard will appear again. Make sure that Install the software automatically (Recommended) is selected and click Next.
•If a warning message appears regarding the Windows logo test, click Continue Anyway.
16.When the wizard finishes installing the software,
click Finish to close the wizard. This completes the installation of the software on Windows→ XP.
10 | Configure Button Manager (one of the programs installed in the above step) as |
the program on your computer that handles scanner events from the machine. | |
Windows→ XP/Me | |
1. | Click the start button, click Control Panel, and | 3. | The SHARP |
|
|
| Click on the Events tab. |
• If Scanners and Cameras does not appear in Windows | 4. | Select SC1 from the Select an event list. | |
| Me, click view all Control Panel options. | 5. | In the Actions field, select Start this program |
2. |
| and then select Sharp Button Manager I from the | |
| select Properties. |
| list of programs. Click Apply. |
| 6. Repeat Steps 4 and 5 for each of events SC2 |
| through SC6. When finished, click the OK button. |
|
|
|
|
This is a facsimile product operating in German, Austrian, Swiss, French, | Dette er et faxprodukt, der fungerer i tyske, østrigske, schweiziske, |
Italian, Swedish, Finnish, Norwegian, Danish, Spanish, Portuguese, | franske, italienske, svenske, finske, norske, danske, spanske, |
Greek, Hungarian, Dutch and Belgian analogue public switched | portugisiske, græske, ungarske, hollandske og belgiske analoge offentlig |
telephone networks which follow the TBR21 Standard. | tilsluttede telefonnetværker, som følger TBR21 Standarden. |
Dies ist ein Faxprodukt für den Betrieb in deutschen, österreichischen, | Este producto es un fax que funciona en las redes telefónicas públicas |
schweizerischen, französischen, finnischen, norwegischen, dänischen, | conmutadas (RTPC) analógicas de Alemania, Austria, Suiza, Francia, |
spanischen, portugiesischen, griechischen, ungarischen, | Italia, Suecia, Finlandia, Noruega, Dinamarca, España, Portugal, Grecia, |
niederländischen und belgischen öffentlichen, analogen Telefonnetzen, | Hungría, Países Bajos y Bélgica y que cumple la norma TBR21. |
die den | Este fax está em funcionamento em rede telefónicas fixas públicas |
Ce télécopieur fonctionne sur les réseaux téléphoniques publiques | alemãs, austríacas, suíças, francesas, italianas, suecas, finlandesas, |
commutés et analogiques allemand, autrichien, suisse, français, italien, | norueguesas, dinamarquesas, espanholas, portuguesas, gregas, |
suédois, finnois, norvégien, danois, espagnol, portugais, grec, hongrois, | húngaras, holandesas e belgas, que cumpram com a Norma TBR21. |
hollandais et belge qui respectent la norme TBR21. | Αυτή είναι µια συσκευή φαξ που λειτουργεί σύµφωνα µε τα Γερµανικά, |
Questo apparecchio facsmile funziona sulle reti telefoniche commutate | Αυστριακά, Ελβετικά, Γαλλικά, Ιταλικά, Σουηδικά, Φινλανδικά, Νορβηγικά, |
pubbliche tedesche, svizzere, austriache, francesi, italiane, svedesi, | ∆ανικά, Ισπανικά, Πορτογαλικά, Ελληνικά, Ουγγρικά, Ολλανδικά και |
finlandesi, norvegesi, danesi, spagnole, portoghesi, greche, ungheresi, | Βελγικά αναλογικά δηµόσια τηλεφωνικά δίκτυα µεταγωγής που |
olandesi e belghe che seguono lo standard TBR21. | ακολουθούν το Πρότυπο TBR21. |
Detta är en faxmaskin som fungerar tillsammans med tyska, österrikiska, | Ez egy fax termék, amely német, osztrák, svájci, francia, olasz, svéd, finn, |
schweiziska, franska, italienska, svenska, finska, norska, danska, | norvég, dán, spanyol, portugál, görög, magyar, holland és belga analóg |
spanska, portugisiska, grekiska, ungerska, holländska och belgiska | telefonhálózatokban muködtetheto, amelyek megfelelnek a TBR21 |
analoga kopplade telefonnätverk som följer | szabványnak. |
Tämä on faksilaite, joka toimii analogisissa julkisissa yleisissä | Dit is een faxproduct dat werkt op het Duitse, Australische, Zwitserse, |
valinnaisissa verkoissa, jotka noudattavat TBR21 standardia, seuraavissa | Franse, Italiaanse, Zweedse, Finse, Noorse, Deense, Spaanse, |
maissa: Saksa, Itävalta, Sveitsi, Ranska, Italia, Ruotsi, Suomi, Norja, | Portugese, Griekse, Hongaarse, Nederlandse en Belgische analoge |
Tanska, Espanja, Portugali, Kreikka, Unkari, Alankomaat ja Belgia. | openbaar geschakelde netwerk volgens de |
Dette er et faksprodukt som kan brukes i offentlige telenett som følger |
|
| |
Italia, Sverige, Finland, Norge, Danmark, Spania, Portugal, Hellas, |
|
Ungarn, Nederland og Belgia. |
|
|
|
Windows→ 2000
1.Click the Start button, point to Settings, and select Control Panel.
2.In the Control Panel,
3.Select SHARP
4.Click the Events tab in the SHARP
5.Select SC1 from the Scanner events list.
6.In Send to this application, select Sharp Button Manager I.
•If other applications appear in the list, make sure that none are selected.
7.Click the Apply button.
8.Repeat Steps 5 through 7 for each of events SC2 through SC6. When finished, click the OK button.
The Declaration of Conformity can be viewed at the following URL address.
Die Konformitätserklärung kann unter folgender
Överensstämmelsedeklarationen finns att läsa på följande
El documento de Declaración de conformidad puede consultarse en la siguiente direc- ción URL.
A Declaração de Conformidade pode ser visualizada no seguinte endereço URL. Προβολή της ∆ήλωσης Συµµόρφωσης µπορεί να γίνει στην ακόλουθη διεύθυνση URL.
A Megfelelosségi nyilatkozat megtekinthetik az alábbi URL címen.
De Verklaring van Overeenstemming kan worden nagelezen op het volgende URL- adres.
An explanation regarding WEEE (information on disposal) is included in the online guide on the
