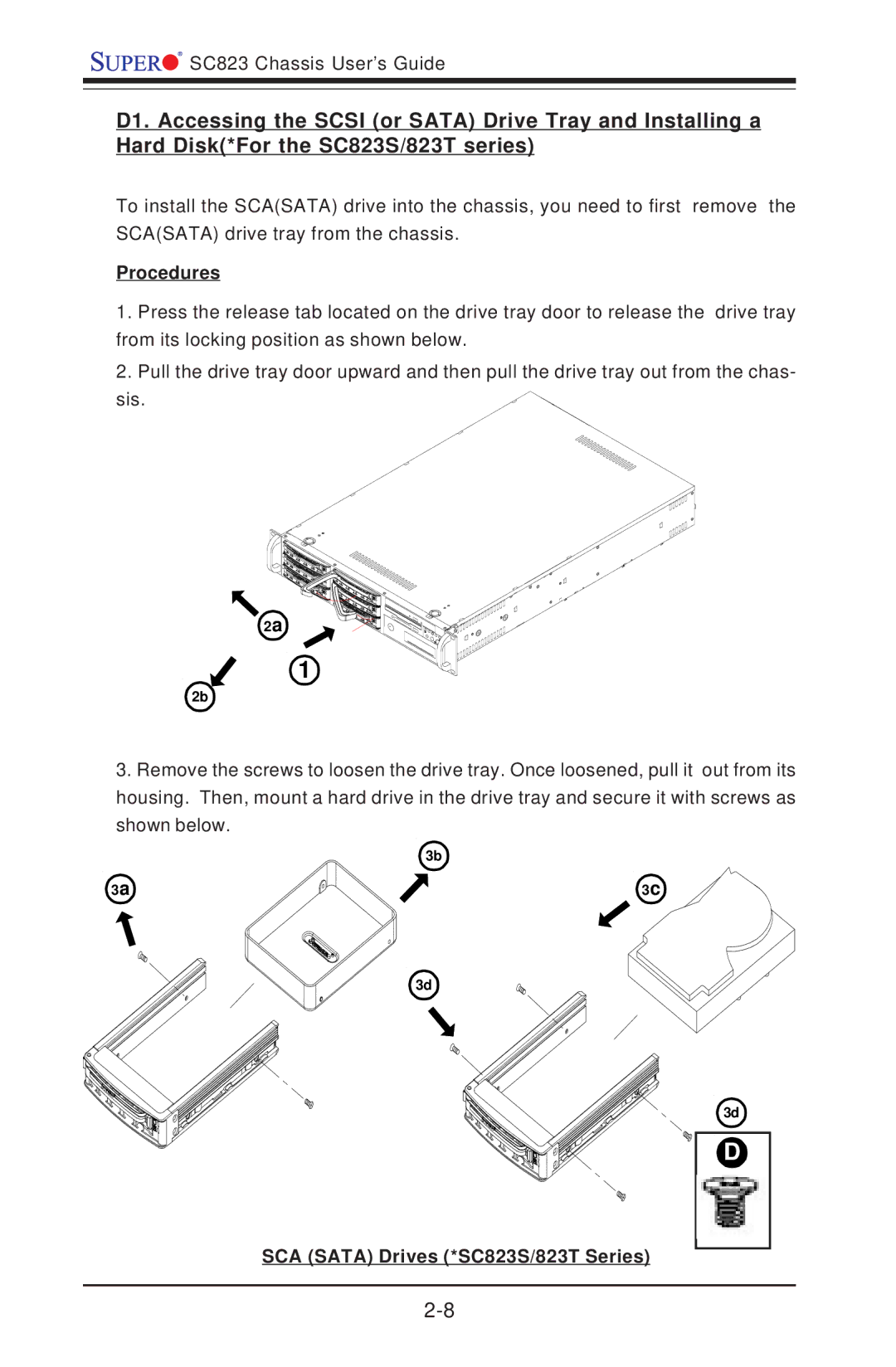

SC823 Chassis User’s Guide
D1. Accessing the SCSI (or SATA) Drive Tray and Installing a Hard Disk(*For the SC823S/823T series)
To install the SCA(SATA) drive into the chassis, you need to first remove the SCA(SATA) drive tray from the chassis.
Procedures
1.Press the release tab located on the drive tray door to release the drive tray from its locking position as shown below.
2.Pull the drive tray door upward and then pull the drive tray out from the chas-
sis.
2a
1
2b
3.Remove the screws to loosen the drive tray. Once loosened, pull it out from its housing. Then, mount a hard drive in the drive tray and secure it with screws as shown below.
3b
3a | 3c |
3d
3d
D
