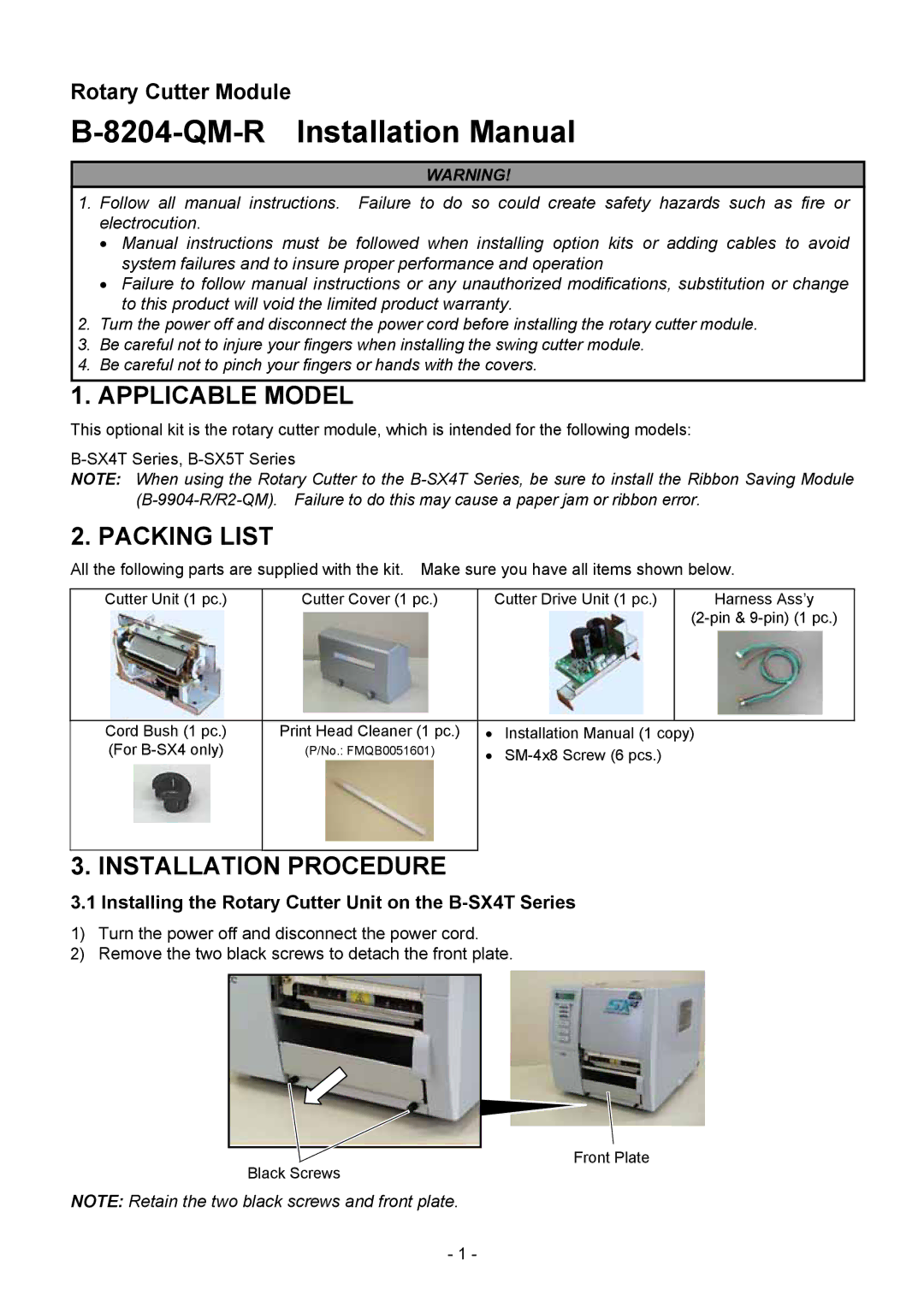

Toshiba B-8204-QM-R CN9 2 pins, CN7 9 pins, Bush Harness Ass’y, Main Frame Hole Harness Ass’y

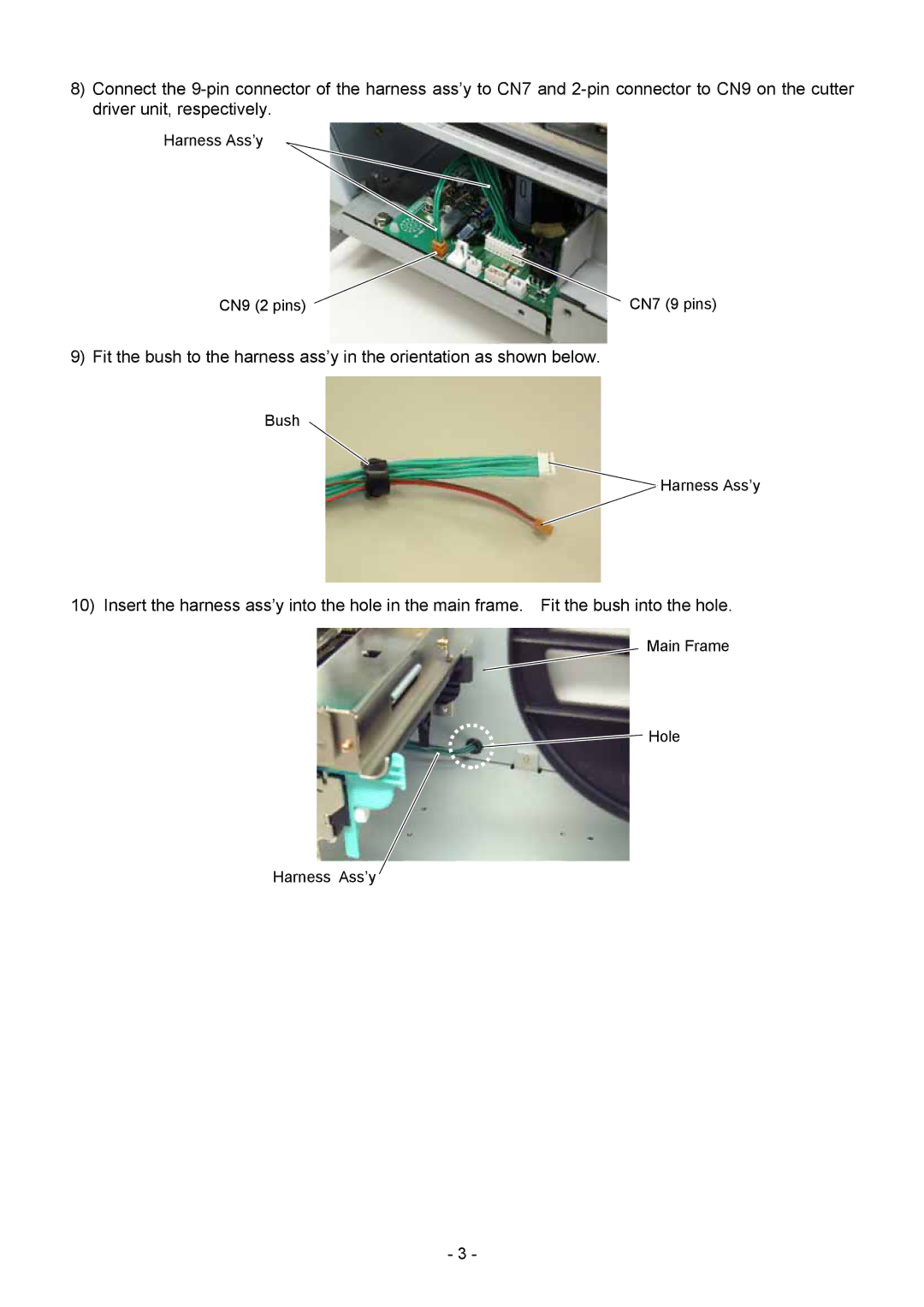

8)Connect the 9-pin connector of the harness ass’y to CN7 and 2-pin connector to CN9 on the cutter driver unit, respectively.

Harness Ass’y

CN9 (2 pins) CN7 (9 pins)

9)Fit the bush to the harness ass’y in the orientation as shown below.

Bush

Harness Ass’y

10)Insert the harness ass’y into the hole in the main frame. Fit the bush into the hole.

Main Frame

Hole

Harness Ass’y

- 3 -
