Auxiliary Power

The Ranger 9 can provide up to 9,000 watts of 115/230 volts AC, single phase 60HZ power for contin- uous use. The front of the machine includes three receptacles for connecting AC power plugs. The K1420-1 has one 50 amp 115/230 volt NEMA 14- 50R receptacle and two 20 amp 115 volt NEMA 5- 20R receptacles. The K1420-2 CSA machine has one

50amp 115/230 volt NEMA 14-50R receptacle and two 15 amp 115 volt NEMA 5-15R receptacles. Do not connect any plugs that connect to the power receptacles in parallel.

Start the engine and set the “IDLER” control switch to the desired operating mode. Set the “CONTROL” to

10.Voltage is now correct at the receptalces for auxiliary power.

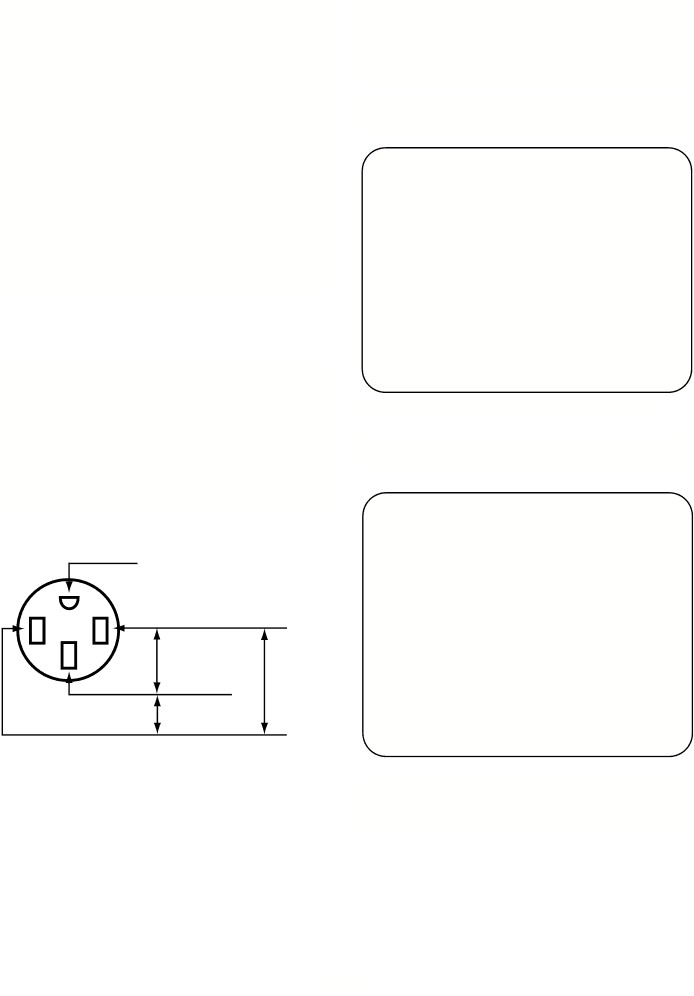

115/230 Volt Dual Voltage Receptacle

The 115/230 volt receptacle can supply up to 40 amps of 230 volt power to a two wire circuit, up to 40 amps of 115 volt power from each side of a three wire circuit (up to 80 amps total). Do not connect the 115 volt circuits in parallel. Current sensing for the automatic idle feature is only in the leg of the three wire circuit as shown below.

GND

115 V

230 V

115 V *

*Current Sensing for Automatic Idle (Receptacle viewed from front of machine.)

115V Duplex Receptacles

The 115V auxiliary power receptacles should only be used with three wire grounding type plugs or approved double insulated tools with two wire plugs.

Maximum Current Draw from 115V Duplex Receptacles - No Welding





K1420-1

K1420-2 (CSA)











and K1421-1 (CSA)



















LOAD FROM

EACH

TOTAL

EACH

TOTAL





115V / 230V

HALF OF

FROM

HALF OF

FROM





DUAL VOLTAGE

EACH 115V

BOTH 115V

EACH 115V

BOTH 115V





RECEPTACLE

DUPLEX

DUPLEXES

DUPLEX

DUPLEXES



















0

20 *

78

15

60



















2.2 KW

20 *

60

15

60



















4.5 KW

20 *

40

15

40



















6.7 KW

20 *

20

15

20



















9.0 KW

0

0

0

0

















* NEMA 5-20P plug required for 20 amp draw.

Maximum Current Draw from Optional 115V GFCI Duplex Receptacles - No Welding





K1420-1*

K1420-2**and







(WITH GFCI’S)

K1421-1**











(WITH GFCI’S)



















LOAD FROM

EACH

TOTAL

EACH

TOTAL





115V / 230V

HALF OF

FROM

HALF OF

FROM





DUAL VOLTAGE

EACH 115V

BOTH 115V

EACH 115V

BOTH 115V





RECEPTACLE

DUPLEX

DUPLEXES

DUPLEX

DUPLEXES



















0

15

40

15

30



















2.2 KW

15

40

15

30



















4.5 KW

15

40

15

30



















6.7 KW

15

20

15

20



















9.0 KW

0

0

0

0

















*Maximum current draw from each 115V GFCI Duplex is 20 amps. ** Maximum current draw from each 115V GFCI Duplex is 15 amps.

-19 -
