Lenovo 6449, 6493, 6483, 6439, 6427, 6423 manual User Guide

Page 14

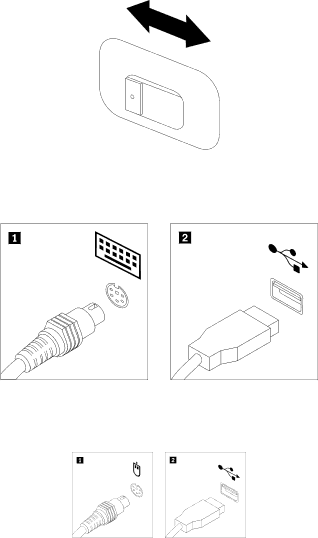

vIf the voltage supply range is 100–127 V AC, set the switch to 115 V.

vIf the voltage supply range is 200–240 V AC, set the switch to 230 V.

2.Connect the keyboard cable to the appropriate keyboard connector, either the standard keyboard connector 1 or the Universal Serial Bus (USB) connector

2.

Note: Some models will have keyboards with a fingerprint reader.

3.Connect the USB mouse cable to the appropriate mouse connector.

6User Guide
