Page 40

Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF

4.2.1Optional Features—Liebert XDV

•Refrigerant Pre-Charge—Liebert XDV units with the pre-charged refrigerant option will have one-shot style fittings or removable couplings that contain pressurized refrigerant inside the Lie- bert XDV. The fittings ease connection to Liebert XD Piping and filling with refrigerant.

•External Mounting Brackets—The Liebert XDV can be suspended from the overhead building structure. The external mounting brackets are ship-loose items.

•Field-Installed Flexible Piping (for use with prefabricated piping assemblies)—Field-installed flexible piping kits are available in lengths of 4, 6, 8 and 10 feet (1.2, 1.8, 2.4 and 3 meters). Con- nection style to the unit end may be straight or 90 degrees. Connection to the prefabricated piping assembly is with a threaded coupler. For information on acquiring the correct kit for your instal- lation, refer to DPN000781_Rev1, available from Liebert by calling 1-800-LIEBERT and from your local Emerson Network Power representative.

•Condensate Detection—The Liebert XDV unit is available with factory-installed condensate detection. The condensate detection has connection points (dry contacts) at the external rear of the unit.

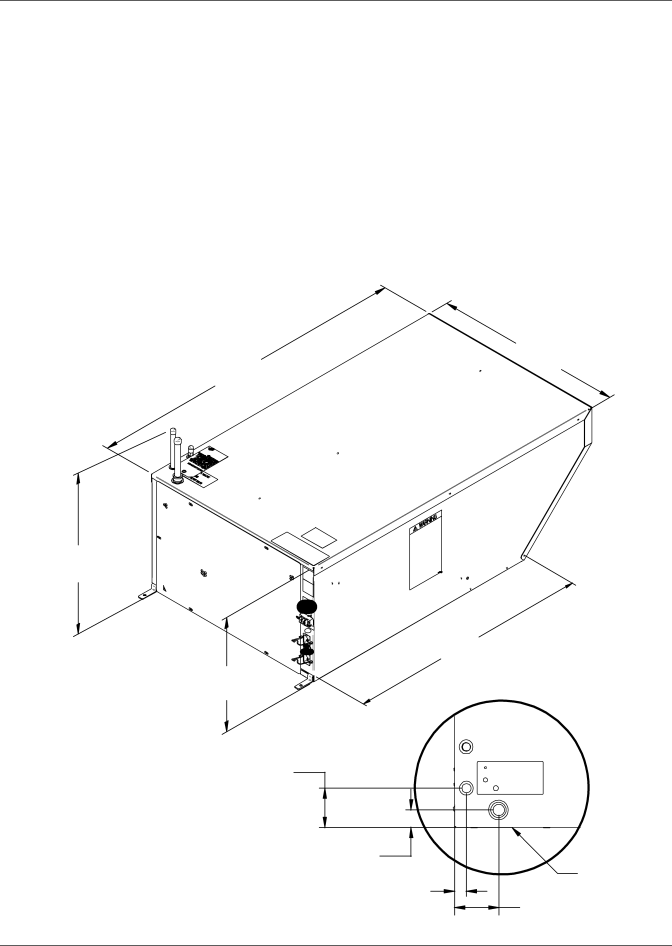

Figure 32 Liebert XDV dimensions

Depth, Top

39-1/2"

(1003mm)

Piping

Height

18-5/8"

(473mm)

14"

Unit Height (355mm)

22-7/8" Width (581mm)

29-5/8"Depth, Bottom (752mm)



2-3/8"

Schrader Valve







(60.3mm)

Supply (In)



Return (Out)



3/4"





(19mm)

Rear





DPN000770, Page 2

3/4"

2-5/8"

(19mm)

Rev. 2



(66mm)







34
